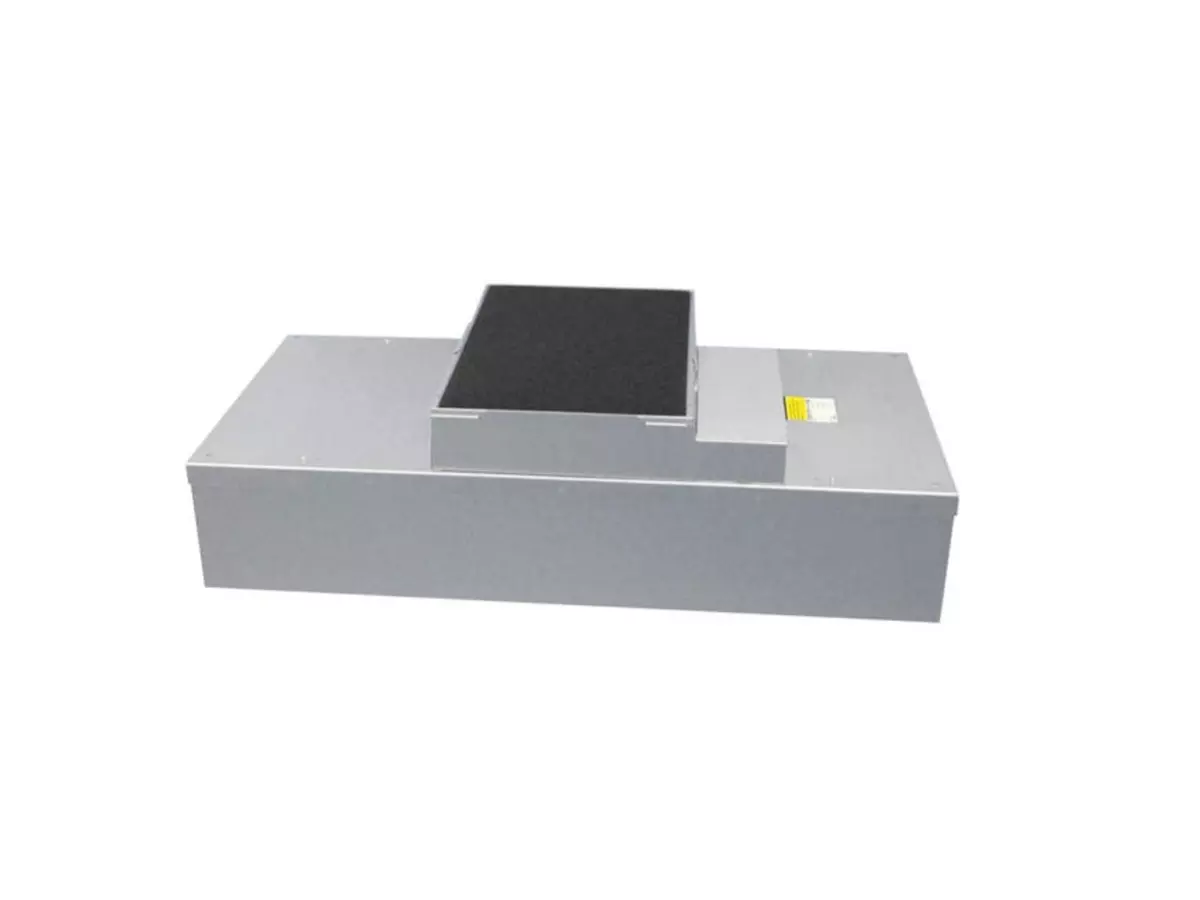

MAC10 IQ Product Image
MAC10 IQ
Intelligent Fan Filter Unit with microcomputer controlled EC motor
- 0.37kW brushless EC motor
- Universal Card - a hybrid card which offers manual control, 0-10V remote control and Modbus® network control
- Energy efficient FFU with low power consumption (105W)
- Quiet operation at 51 dB(A)
- HEPA (H13) filter
- 150Pa of External Static Capability (ESP) at 0.45m/s
- Forward-inclined centrifugal type fan
- Walkable Plenum (excluding pre-filter)
- Pre-filter (406 x 591 x 13mm)
- 230V CE units stocked extensively in Hamburg
- Aluminium casing
The MAC 10® IQ was the world’s first intelligent Fan Filter Unit. With its microcomputer controlled EC motor, the MAC 10® IQ adjusts itself automatically to maintain the desired airflow, compensating for changes in static pressure, filter loading or other local conditions.
Available options
- Room-Side Replacement (RSR) filter with gel seal filter (RSR/RSRE units)
- Controls: Console and PLC options are available for stand alone or integrated
- BMS network control
- ULPA (U15) filters
- 9.53mm Challenge Port: Convenient filter and static pressure ports on RSR and RSRE
- 585 x 585mm, 600 x 600mm, 585 x 885mm, 600 x 905mm, 585 x 1185mm, 600 x 1210mm and custom sizes available
It is competitively priced, compact (365mm) and operates quietly and efficiently (105W), all benchmarks of the MAC 10® FFU range. The MAC 10® IQ maintains airflow so constantly and consistently that the need for future balancing is greatly reduced. It is an ideal choice for close control environments, customised LAF benches, mini-environments and non-ducted applications.
