PARASOL Zenith family
A product for every need
Comfort modules for cooling, heating and ventilation
Optimal room comfort
The PARASOL Zenith family is a range of flexible comfort modules providing optimal indoor climate. With their large working area and flexible control platforms the comfort modules are easy to plan before, during and even after the building process. The PARASOL Zenith family consists of PARASOL Zenith, PARASOL Zenith VAV and WISE PARASOL Zenith.
Optimal room comfort is achieved as the product can manage large variations in supply air flow, cooling and heating requirements. The product’s high cooling capacity enables a lower duct pressure or a higher cooling water temperature to be used, which saves energy and even improves room comfort further.
The comfort modules are designed for distributing air slightly upward, this minimizes the risk for high air speed and draught.
The infinitely variable air flow control in combination with Swegon’s ADC (Anti Draught Control) offers maximum flexibility if the room layout needs to be changed in the future.
The modules are available in three sizes: 600, 1200 and 1800 and in the following variants:
- Supply air
- Supply air and cooling
- Supply air, cooling and heating

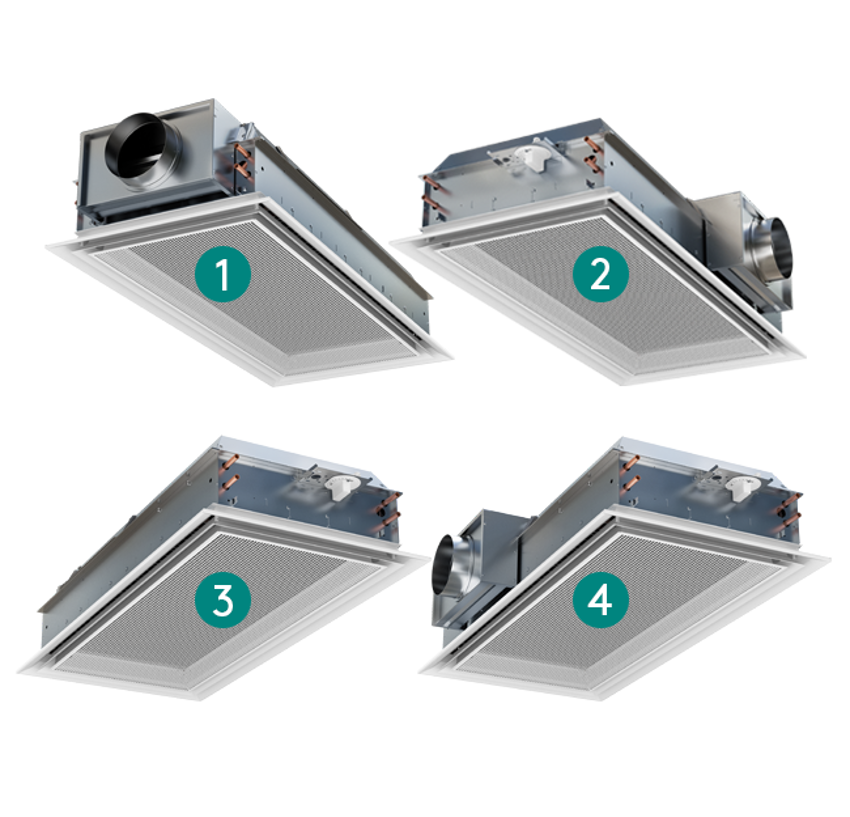

One of the features of the new PARASOL Zenith products is that all variants can be ordered with the air connection on an optional side, which facilitates planning and installation.
For air connection on side 1 the water and air connection are on the same short side. The regulation knob or actuator is then located on the opposite short side instead. For other air connection variants, the regulation knob or actuator is always placed on the same side as the water connection.
It is also possible to change the air connection side during or after planning by moving the sleeves to an optional side on site, which adds even more flexibility.
See optional air connection sides in the image to the left.
Different control platforms
The activity level in an office or conference room varies over the day. It is important to adapt the ventilation to the actual need, both for health and energy reasons. The indoor climate is strongly connected to performance, health and well-being. By controlling the indoor climate to the actual needs will result in a healthier and more productive indoor environment. Large energy savings can be made with the right control system in the building. Simpler control options are available for existing systems or where you only need to regulate the water side.
For PARASOL Zenith there are different control options that can be adapted to the true need in the premises.

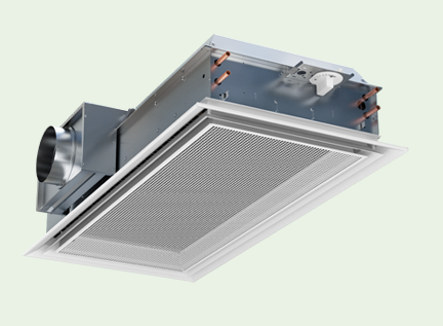

PARASOL Zenith is a constant flow product which in its standard design comes with a regulation knob for simple and quick setting of a fixed air flow from the slot openings.

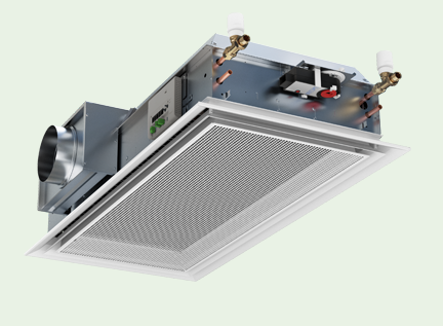

The product can also be integrated in the WISE system as a constant flow module with control of the water valves.
PARASOL Zenith comes with a knob, selectable air connection side and is also available with selectable, factory-fitted control equipment.

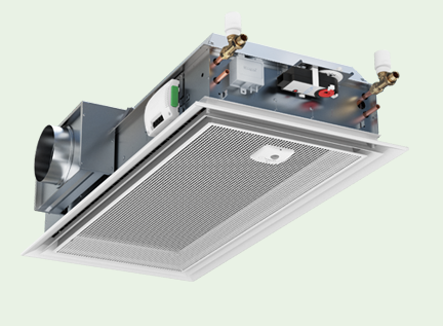

PARASOL Zenith VAV
PARASOL Zenith VAV is a comfort module with integrated regulation. With its unique, variable slot control and large working area it’s always ensured that the right air flow is supplied to the room and this with our functional regulator that offers many I/Os.
The product comes with an actuator, regulator and valve actuator and can also be delivered with additional sensors. PARASOL Zenith VAV can also be easily integrated into a BMS-system via Modbus.

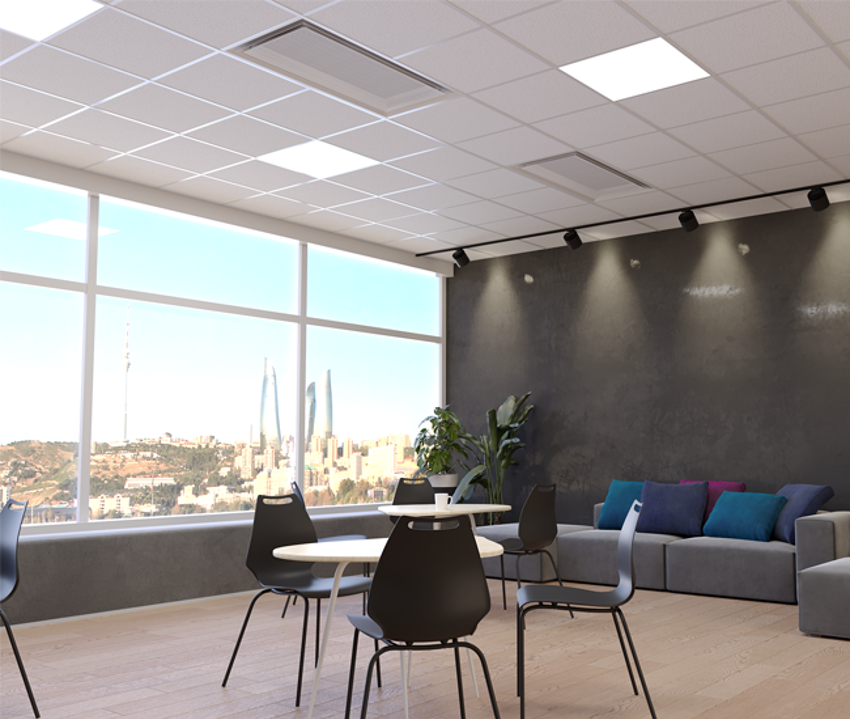

The PARASOL Zenith family are designed comfort modules with flush integration to ceilings, which gives a stylish and discreet installation.
Selectable perforation pattern
As standard the face plate is available in three different perforation patterns:
- Circular holes arranged in a square pattern
- Circular holes arranged in a square pattern with a graduated transition
- Square holes arranged in a square pattern with a graduated border
The modules are also available in different colours. Architects can be creative with the design and the modules can blend in any indoor environment while at the same time being aesthetically pleasing.
