Release AHU Design v. 4.4.3 (2025-04-28)

HIGHLIGHTED NEWS



ILTO Genius 300-400



ILTO Genius 300-400 for Finish market is now available in AHU Design.



Transport packages for GOLD and SILVER C phase 3 (Side view)



The third phase of the Transport packages project is now complete. In this phase, the user will be able to see a new printout page called Side View. On this page, we are showing the unit delivery parts from the side, including dimensions.

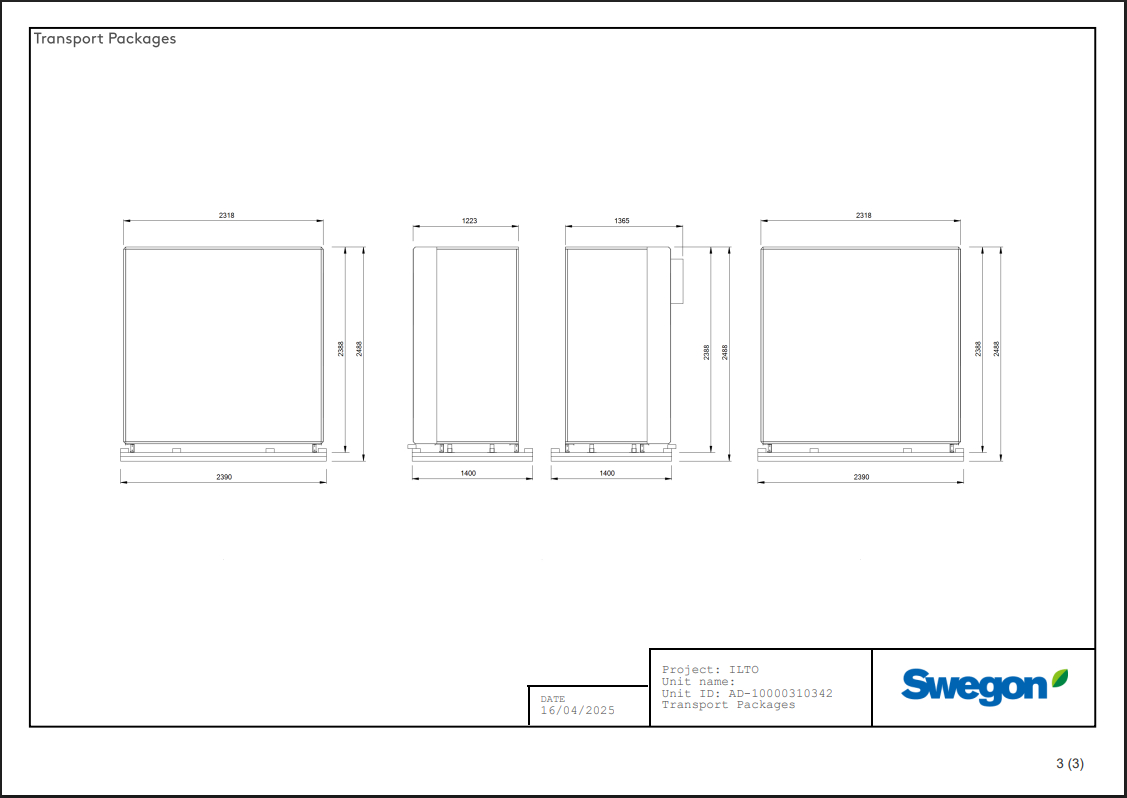

Side view

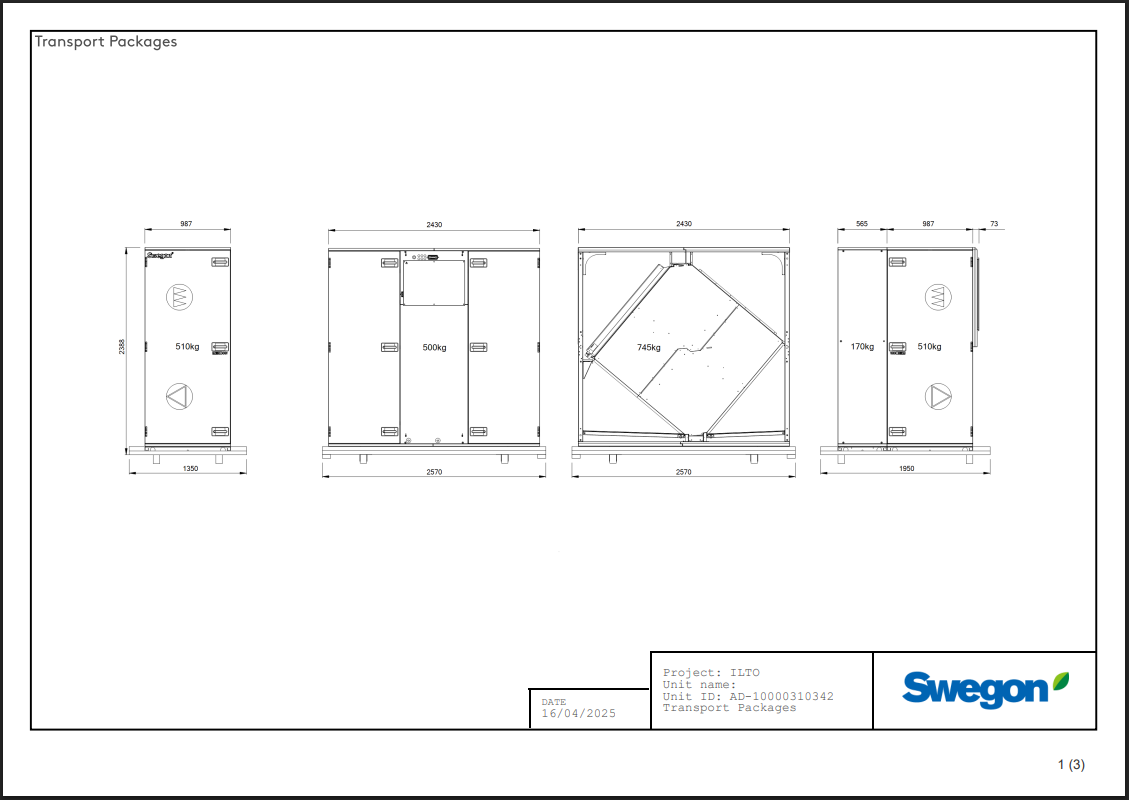

Frontview

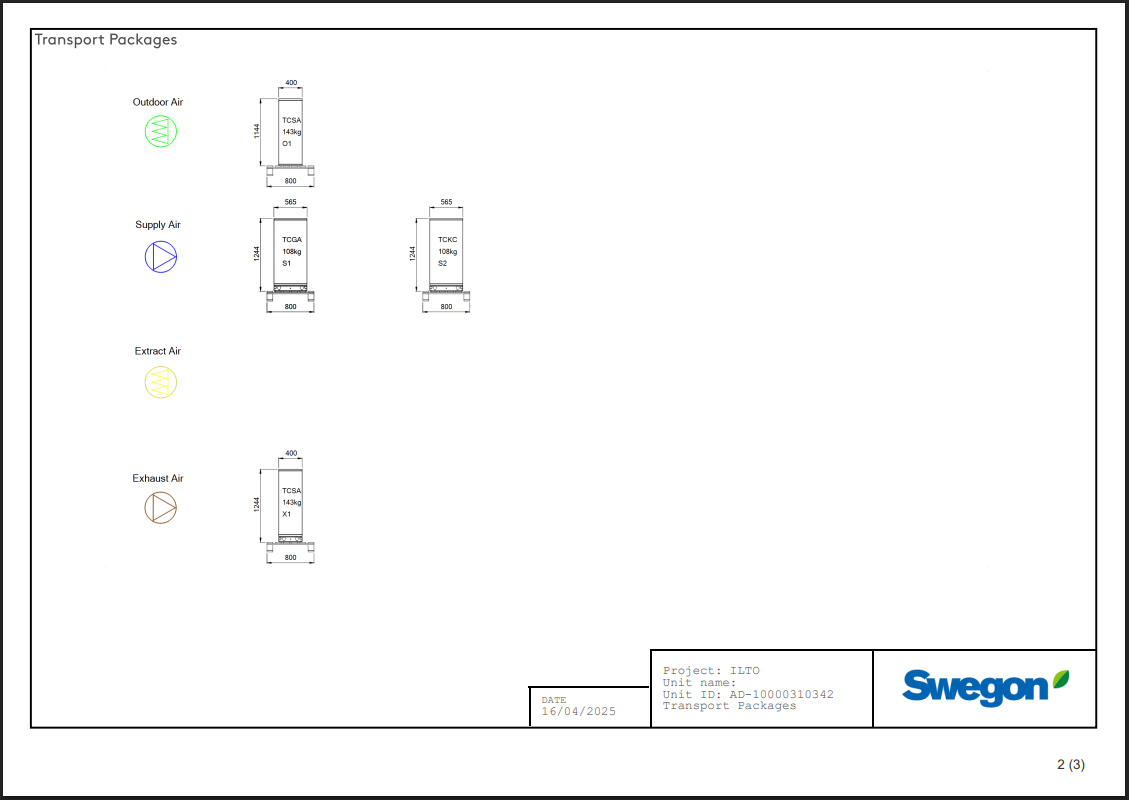

Accessories view



GOLD RX HC effect variants

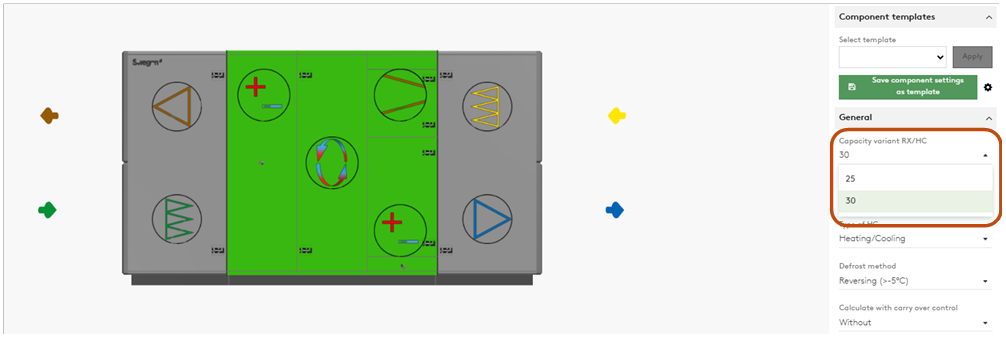

It is now possible to choose capacity variant of the heat pump per physical size.

For GOLD RX/HC size 12, you can choose capacity variant 11 or 12, for GOLD RX/HC size 20, you can choose capacity variant 14 or 20, etc.









APPLICATION / GUI / Calculation

Miscellaneous calculation fix

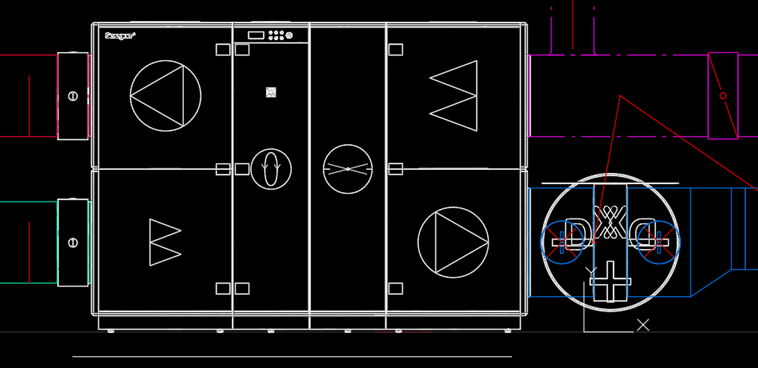

Bug-fix: Wrong scaling on DX-coil and ABC hoods icon when exporting to AutoCad and Revit is now solved. (33776)



KVÄNUM

Improvement: Information provided when a cooling coil is added in the top connection. (33839)

Improvement: Information that the heating pump is not included in the order when selecting a TCKC or TBKC. (34546)

Improvement: Cool DX information text for RX+ 70–80. (34590)

Bug-fix: Corrected duct connection for TCGA on GOLD/SILVER SD. (34545)

Bug-fix: Corrected BT3 placement in the flowchart. (33991)

Bug-fix: The TBTA hood was not available in some sizes with full-face end section. (34301)

Bug-fix: Missing unit weight for TOP size 12. (34514)

Bug-fix: Placement for TCGA in GOLD/SILVER SD is corrected (34757)

Bug-fix: Cool DX in PX split version size 7 and 8 (34758)





GEMBLOUX



Improvement: Global RX 18-20 flexible sleeve now available in Transport packages (34571)



NORTH AMERICA



Improvement: Remove component TableConversions (33598)

Improvement: ACLE size 11 600 volt (33778)
Bug-fix: Correction of combination of coils in ACLK (33641)
Bug-fix: ACIA: Incorrect set of connections (33832)

Bug-fix: Wrong top duct connections for some sizes (33640)



KAARINA

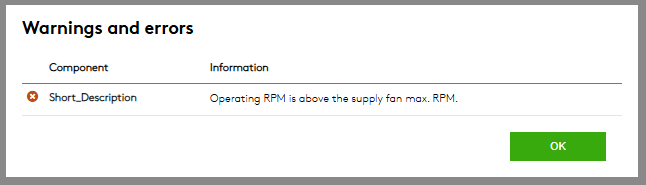

Improvement: Error added when fan RPM is above max limit.

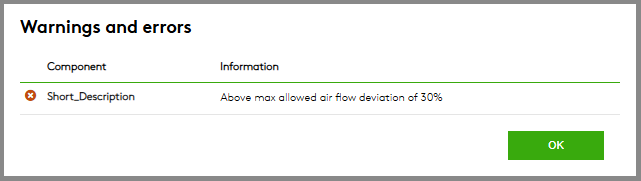

Improvement: Error added when deviation is higher than 30%.

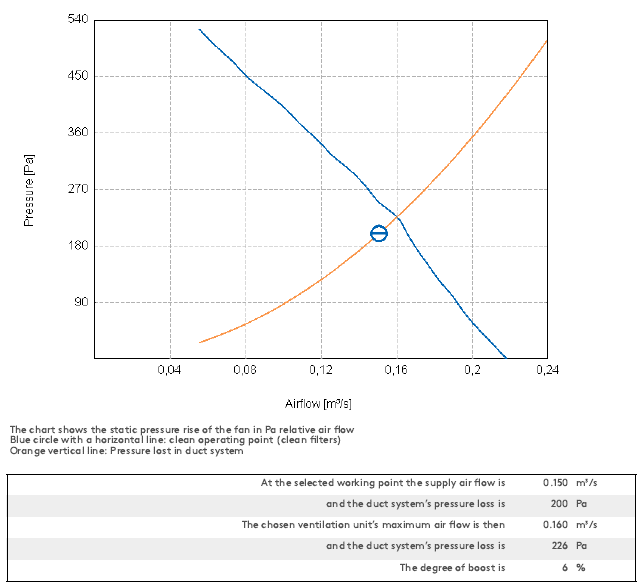

Improvement: Fan-diagram (33379)



Improvement: Change default values for inlet and outlet liquid temperature on heating coil (34695)

Bug-fix: Supply temperature on VEAB coil is disabled due to no effect on the coil itself. User already select size and effect (34682)
