Release AHU Design v. 4.3.10 (2024-12-04)

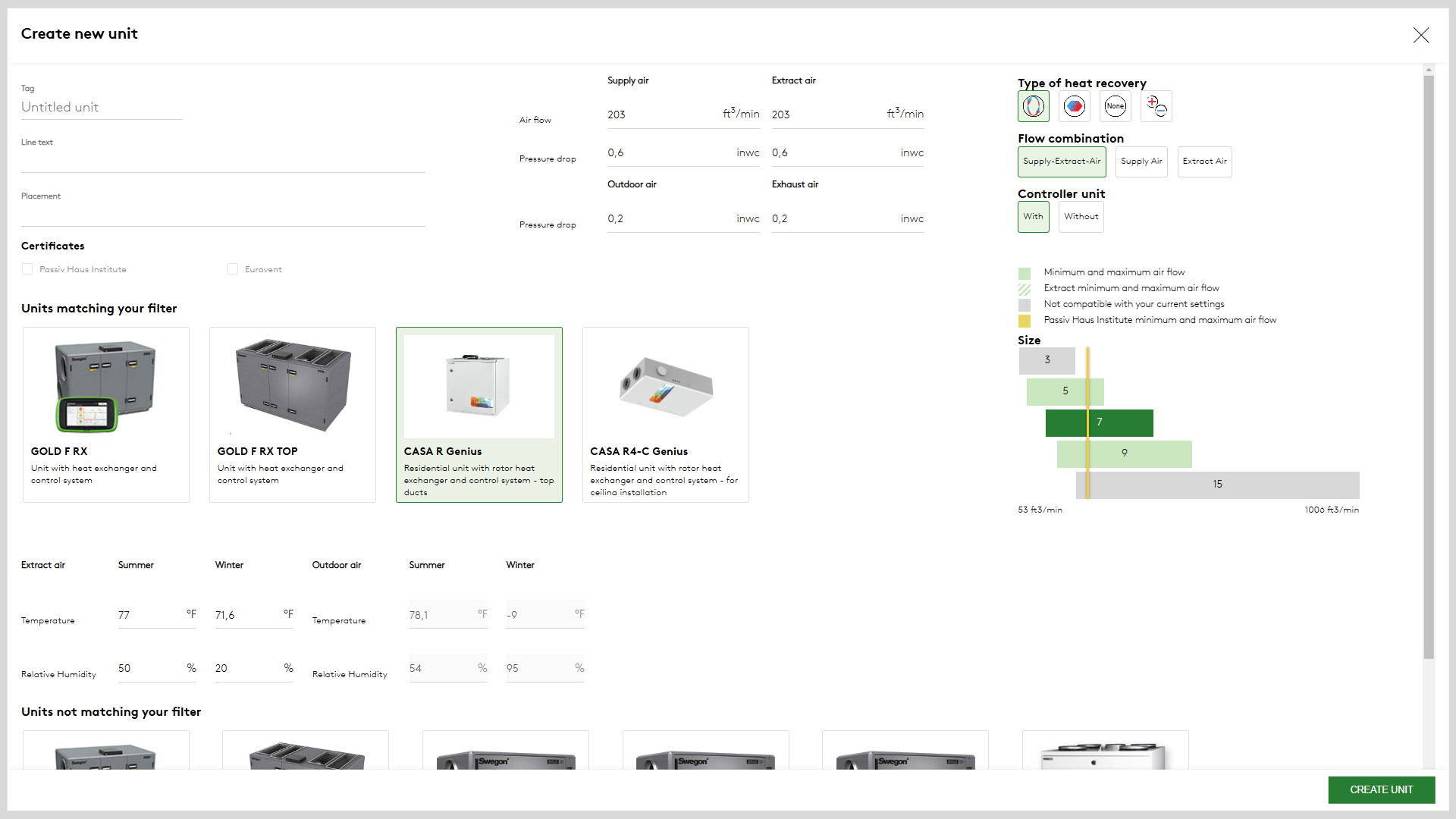

CASA for North America

AHU Design launching CASA for North America market. The available assortment in this release are CASA R sizes 3, 4C,5,7,9 and 15 with standard and sorption rotor.

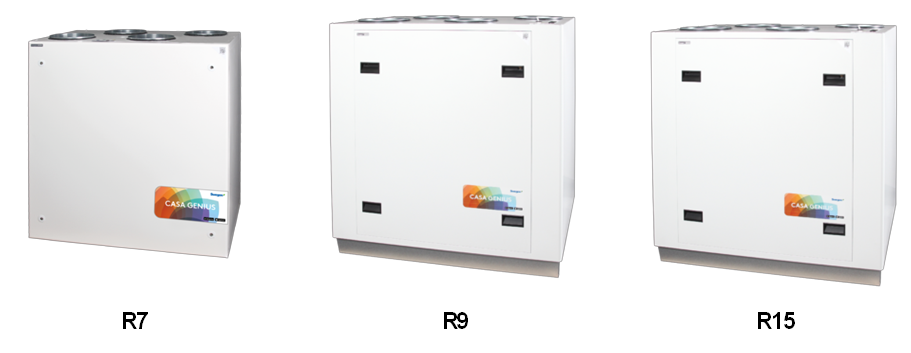

CASA Sorption rotors for Europe

CASA R size 7,9 and 15 is now available with Sorption rotor.

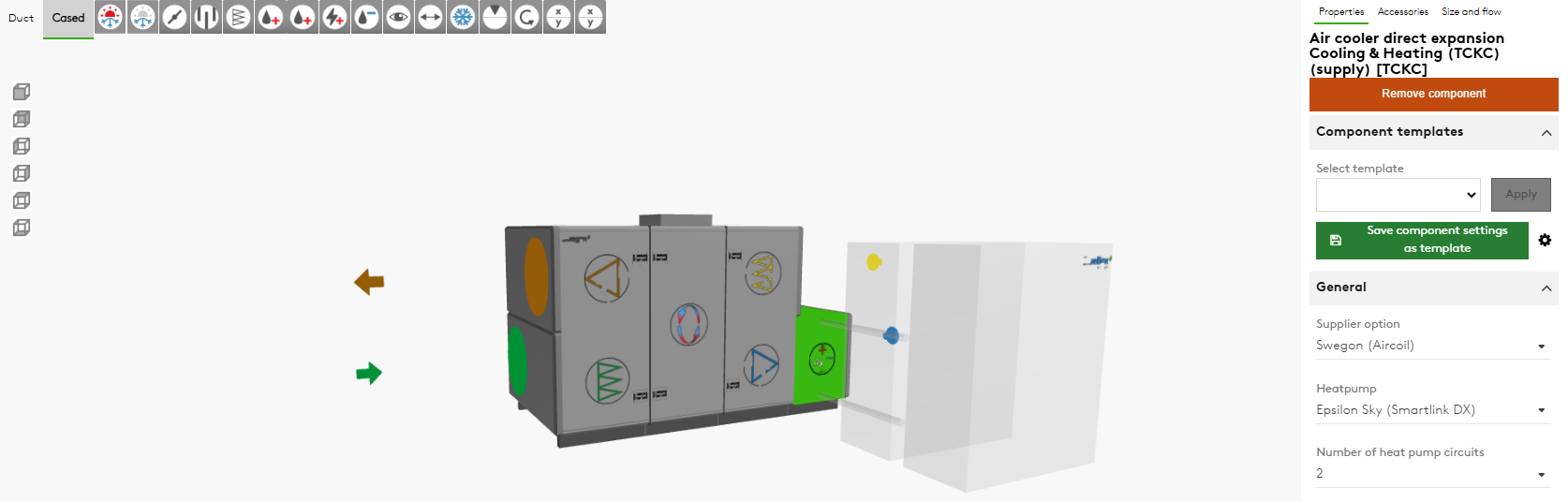

Gold with Epsilon sky Update

The selection process for DX coil and related heat pump(s) has simplified

Main improvements are:

• There is now only one icon for dx coil
• Heat pump is assumed to always be present regardless of the supplier so the correct controls are set up.
• Epsilon Sky is set to default but can be altered to other supplier.
• A minimum of two heatpumps is recommended to give a better defrosting function and that is default.
• The heatpumps should be of the same size and the coil must be divided accordingly. The program supports that.
• Improved wiring diagram when Epsilon Sky is selected.
• Unnecessary selection menus have been removed.



Note that the lowest condensing temperature allowable in CH Design is 30 C









APPLICATION / GUI / Calculation



Improvement: Direct Coil – New API integration (technical communication)

Bug-fix: Share project incorrect link

Bug-fix: Energy printout - Arithmetic overflow for RX HC

Bug-fix: GEM bottom beam printouts

Bug-fix: Global SD, calculation crash when using glycol

Bug-fix: Show coil capacity for Swedish/Norwegian languages



KVÄNUM



Improvement: SILVER C SD multifunction parts (20530)

Improvement: Functional description GOLD/SILVER C SD (30488)

Improvement: Warning regarding isolation type for CoolDX in casing if AHU unit has EI30 (30231)

Bug-fix: Corrected M3 structure for multifunction part size 5 (30309)

Bug-fix: Corrected airflow for GOLD/SILVER SD size 50 (30495)

Bug-fix: Graphics for multifunction parts with GOLD HC (30601)





GEMBLOUX



Improvement: Esensa is available for Slovakia (30230)

Improvement: Abbreviation-list (30070)

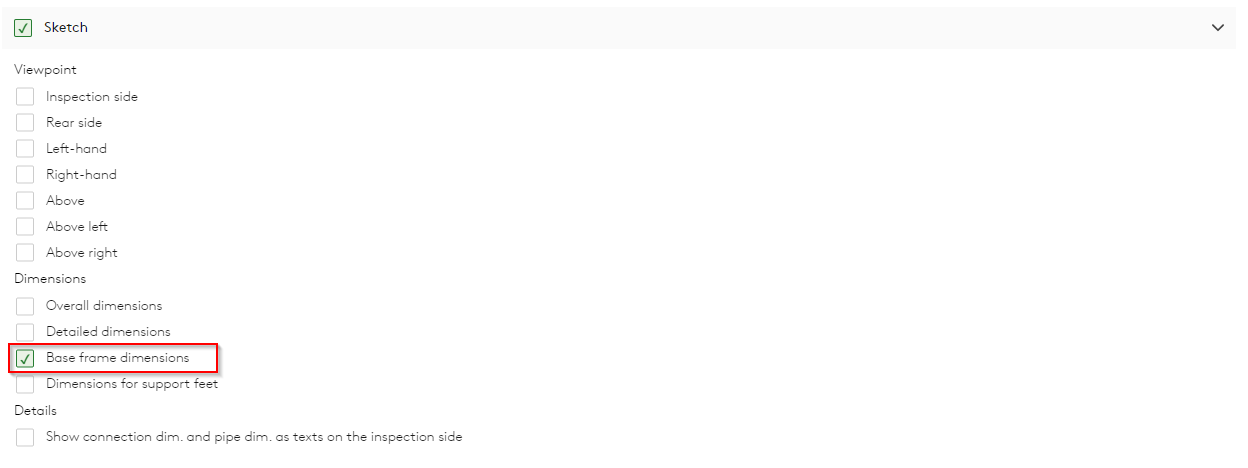

Improvement: Baseframe dimension printout for GLOBAL/ESENSA(27645)





Bug-fix: Ordering codes for filter on GLOBAL SD (30603)



NORTH AMERICA



Bug-fix: Article numbers for L-units (30270)



RESIDENTIAL (KAARINA)



Improvement: Multiple graphical corrections

Improvement: Multiple fix for printout

Improvement: Added CLA-dampers (29977)

Bug-fix: Outlet air temperature for electrical coil (30919)

Bug-fix: Temperature efficiency residential/commercial (29975)

Bug-fix: Condensate discharge logic (30088)
