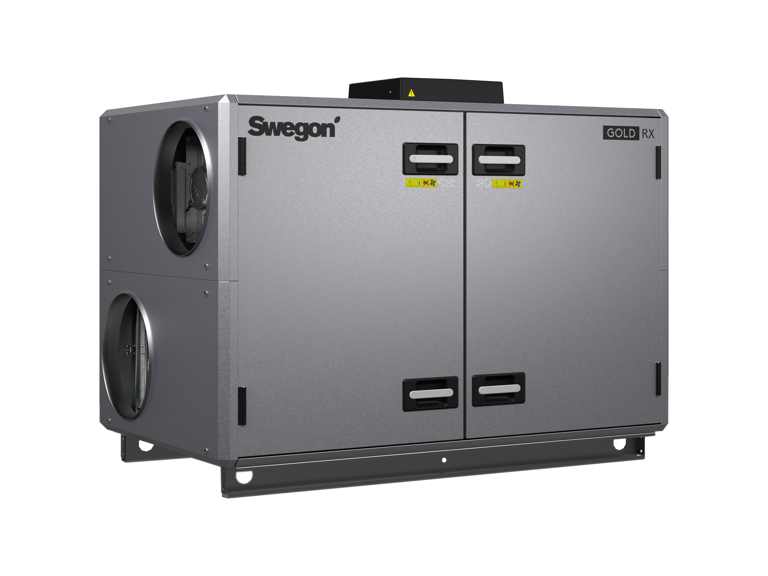

GOLD RX

Air handling unit with rotary heat exchanger

GOLD RX is a complete air handling unit with rotary heat exchanger, direct-driven supply air and extract air fans as well as supply air and extract air filters.

  • Temperature efficiency, heat exchanger up to 85%
  • Air flows up to 50.400 m³/h
  • Variable speed control for rotary heat exchanger
  • Recovers heat energy and cooling energy
  • Optimised fan sizes give greater freedom to choose exactly the right size of air handling unit and fan variants to suit the needs of the installation. This also gives even greater possibilities to optimise the energy efficiency of the current project

Rotary heat exchanger RECOnomic / RECOsorptic
A rotary heat exchanger consists of an aluminium wheel with numerous small air passages. Energy is transferred between the supply air and extract air or vice versa when the wheel rotates. This is the most energy efficient heat recovery method with a temperature efficiency that always exceeds 80%. Thanks to a patented design with a turbulent flow in the air passages, RECOnomic attains a uniquely high degree of energy efficiency.

Swegon’s rotary heat exchanger is also available in an sorption version (RECOsorptic), which increases the energy efficiency further through the product dehumidifying or recovering moisture depending on the conditions and needs.

Full control over air quality
On account of the unique combination of purging sector and Carry-Over Control functionality, the risk of leakage between the extract air and supply air is minimised, which ensures the building is always ventilated with fresh air.

GOLD RX/HC – integrated cooling and heating
The new generation of GOLD introduces many new opportunities. One major addition is GOLD RX/HC, a plug-and-play solution for integrated cooling and heating production. Thanks to an integrated reversible heat pump it is now easier than ever to create a comprehensive ventilation system. Incredibly easy to plan, install and commission. Furthermore, all functions are easily accessible via GOLD’s user interface.

Download documents

You can find more documents on our document search page. Looking for older versions, you can find them in the document archive

Filter
Comprehensive detailed product information for the best selection and integration in project design
Installation, Operating, Maintenance and Safety information
Our products and services presented in an easy-to-access manner
Declarations and certificates etc
Wiring diagrams and hydraulic schemes etc
Document Article Document type Download
Accessories (pdf 6.1MB) GOLD Technical catalogue
Adjustment, inclination of rotary heat exchangers (pdf 142.9kB) GOLD/SILVER C RX 070-080 IOM Manual
Adjustment, inclination of rotary heat exchangers (pdf 341kB) GOLD/SILVER C RX 004-060 IOM Manual
All Year Comfort, function guide (pdf 191.62kB) GOLD IOM Manual
Combi coils, function guide, version E/F (pdf 326.4kB) GOLD IOM Manual
Declaration of hygiene execution (GOLD/SILVER C) (pdf 143.17kB) VDI 6022 Quality
Description functions, IQlogic (pdf 789.1kB) GOLD Technical catalogue
EC declaration of conformity for the machinery (pdf 139.64kB) GOLD/SILVER C/COMPACT Quality
Edit Object name/Description for BACnet IP (pdf 147.03kB) BACnet IP IOM Manual
EPD Environmental Product Declarations (pdf 1.13MB) GOLD RX 011-012 / SILVER C RX 011-012 Quality
Eurovent certificate (pdf 196.81kB) GOLD Quality
Eurovent description of certification process (pdf 93.35kB) Eurovent Quality
Function manual, user, program version 1.31 (pdf 451.95kB) GOLD IOM Manual
Function manual, user, program version 2.40 (pdf 466.67kB) GOLD IOM Manual
Functional profile Gateway Lonworks FTT-10 (GOLD pv. 1.10 or later) (pdf 760.84kB) Lonworks Others
Functional profile Gateway Lonworks FTT-10, editable Excel-file (GOLD pv. 1.10 or later) (xlsx 330.99kB) Lonworks Others
GOLD Passive House (pdf 525.4kB) GOLD RX Brochure
Guide hygiene execution (GOLD/SILVER C) (pdf 1.33MB) VDI 6022 IOM Manual
Humidity-optimised rotor controller, function guide (pdf 175.84kB) GOLD RX IOM Manual
Installation instruction (sizes 004-080) (pdf 20.02MB) GOLD RX/PX/CX IOM Manual
Manual for alarms and information messages, program version 2.40 (pdf 631.21kB) GOLD IOM Manual
Manual for generating an energy report (pdf 66.37kB) GOLD IOM Manual
Menu groups overview, hand-held terminal IQnavigator (pdf 201.82kB) GOLD IOM Manual
Operation and maintenance (pdf 3.19MB) GOLD RX IOM Manual
Operation manual, hand-held terminal IQnavigator (pdf 770.83kB) GOLD IOM Manual

Showing 25 of 60 hits
