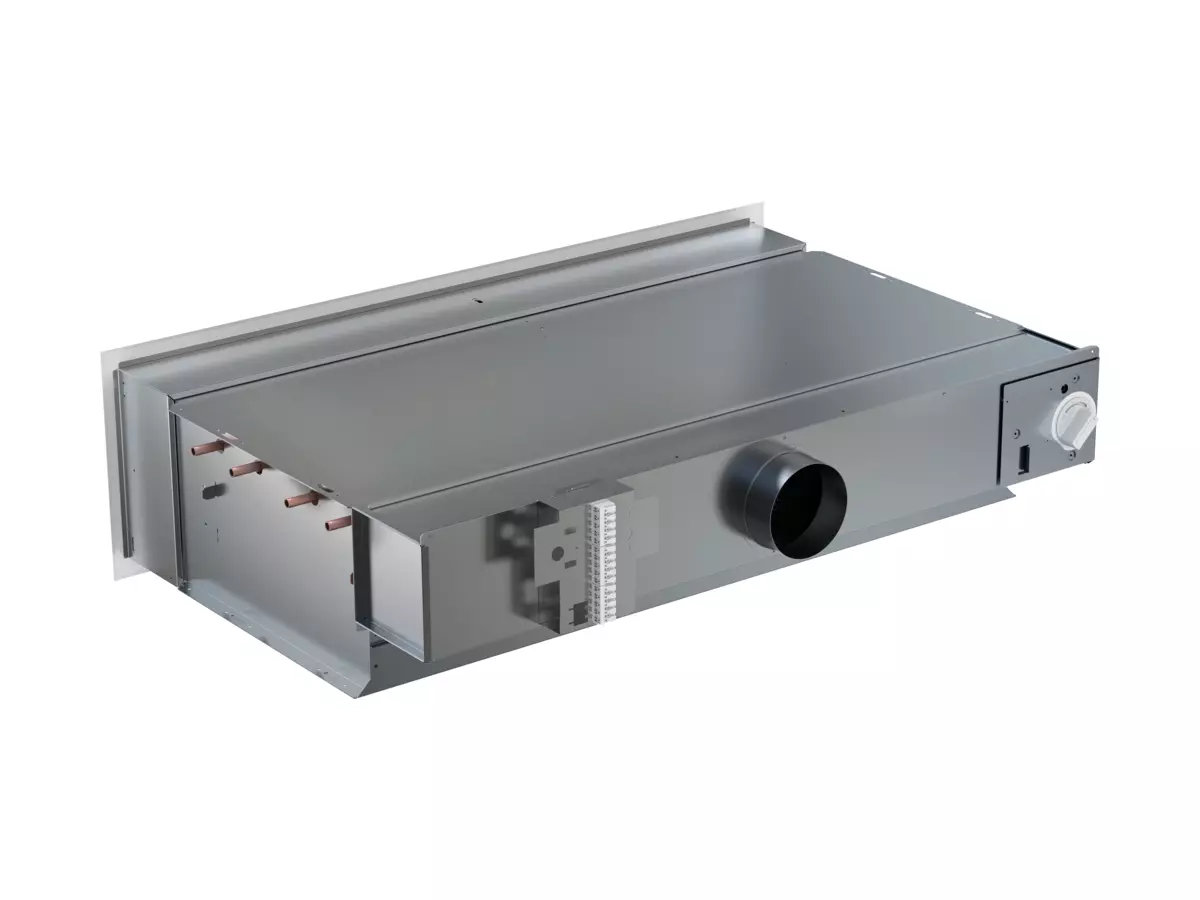

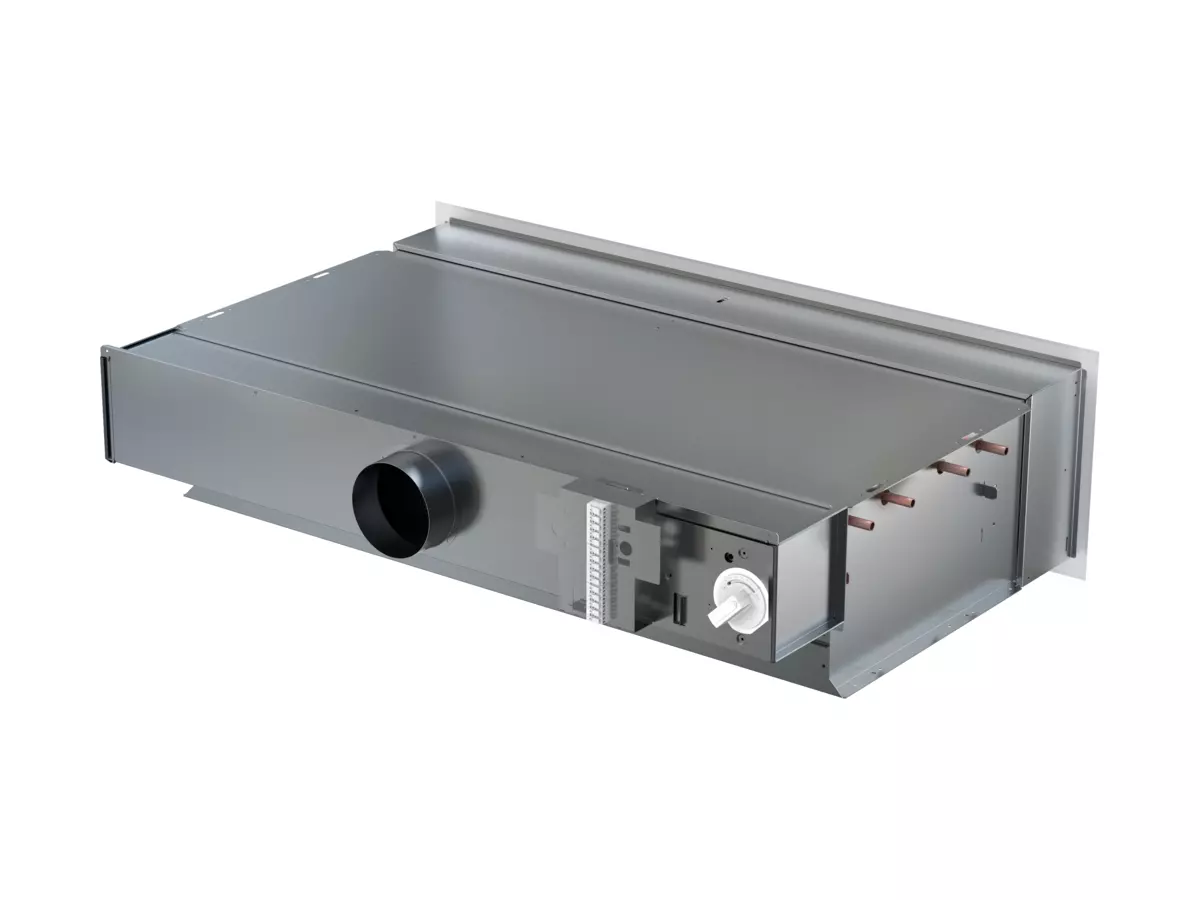

PARAGON Wall
Compact comfort module for offices

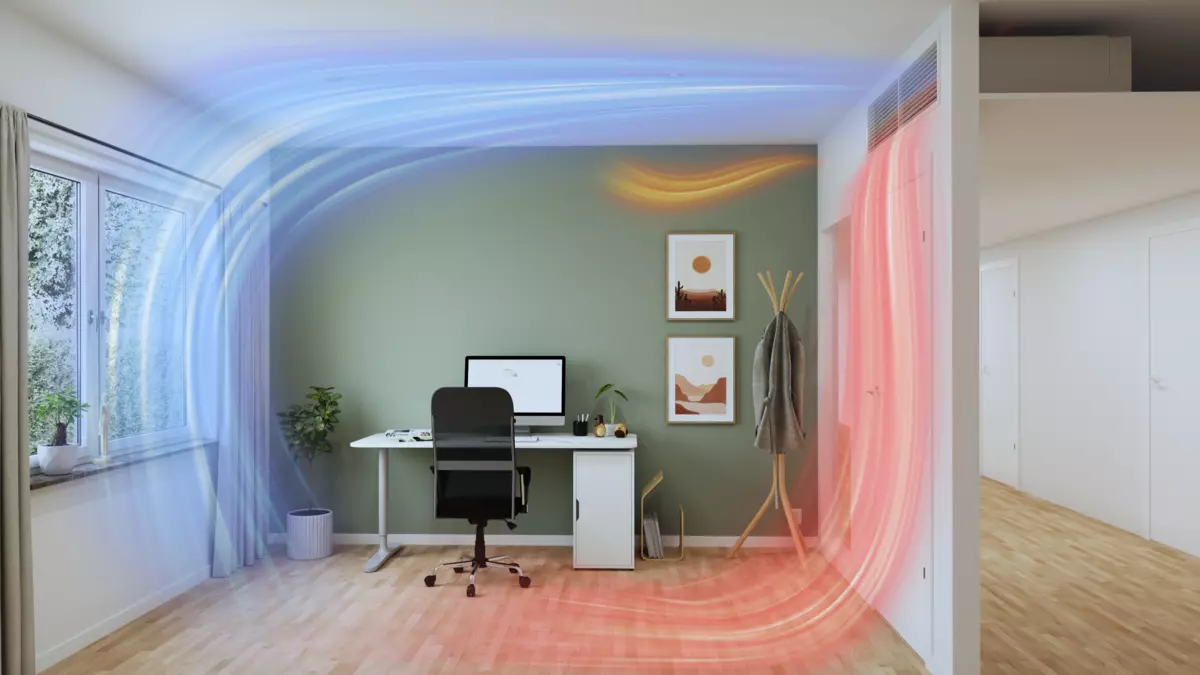

- Ventilation, cooling and heating (water or electricity)
- Constant flow product with adjuster knob for quick and easy regulation of a constant air flow from the slot openings.

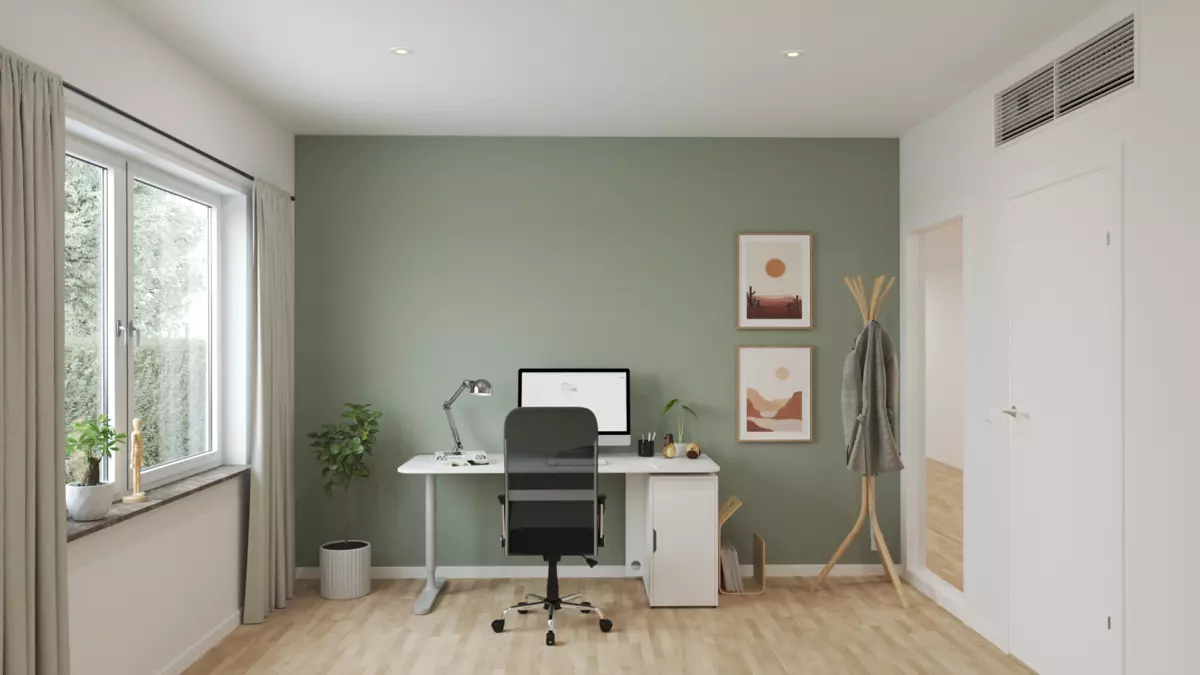

- Designed for installation in the rear edge of the room and ideally is positioned above the adjacent corridor’s suspended ceiling
- The product can also be integrated in the WISE system as a constant flow module with control of water valves
- Straightforward installation with two optional water connection sides and centred air connection
- One grille for both the supply air and the recirculated air
- Also available with optional factory-fitted control equipment
- Adjustable air direction ADC and adjustable grille louvres
- Low installation height
- High capacity
Air flow range: | Pressure range:Â | Cooling capacity total:Â | Heating capacity: | ||
l/s | m³/h | Pa | W | water (W) | electricity (W) |
0 - 85 | 0 - 306 | 20 - 200 | Up to 2682 | Up to 4274 | Up to 1000 |
  | |||||
SIZE | |||||
Length | Depth | Hight | |||
(mm) | (mm) | (mm) | |||
800, 1100, 1400 | 722 (+0-20) | 286 |
