Fire Dampers & Smoke Dampers

For maintaining compartmentation and controlling smoke in buildings and marine HVAC applications.

We offer a range of fire dampers and smoke control dampers for the control of fire and smoke within a building. To achieve a CE mark fire dampers must fail-safe close, using an actuator or fusible link, and are for compartmentation whereas smoke dampers use drive-open/drive-closed operation. We offer both manual and automatic (motorised) fire dampers.

Comparison Table

	Actionair ThermCommand MCD	Actionair SmokeCommand MCD	Actionair ThermShield FD	Actionair ThermShield FDC	Actionair SmokeShield	Actionair CSS	Actionair A60 Marine	Actionair TransShield

Purpose	Smoke Control and Compartmentation	Smoke Control and Compartmentation	Compartmentation	Compartmentation	Compartmentation	Compartmentation	Marine Fire Damper	Compartmentation
hEN Product Standard	EN 12101-8	EN 12101-8	EN 15650	EN 15650	EN 15650	EN 15650	N/A	N/A
Operation	Drive Open / Driver Close	Drive Open / Drive Close	Fail-safe close	Fail-safe close	Fail-safe close	Fail-safe close	Fail-safe close	Fail-safe close
Actuated (Automatic) Damper			*manual also available	*manual also available
Optimised for low smoke cold leakage with Actionpac
CE Marked							N/A	N/A
E classified (Fire/Integrity) EN 1366-2
S classified (Smoke) EN1366-2
I classified (Insulation) EN1366-2
Smoke Control EN 1366-10
Ductwork compatibility	Square/Rectangular	Square/Rectangular	Square/Rectangular	Circular	Square/Rectangular, Circular	Circular		Square/Rectangular

Actionair SmokeCommand MCD

EN 12101-8 Smoke Control Damper

Actionair SmokeShield PTC

'ES' Rated Automatic Fire Damper

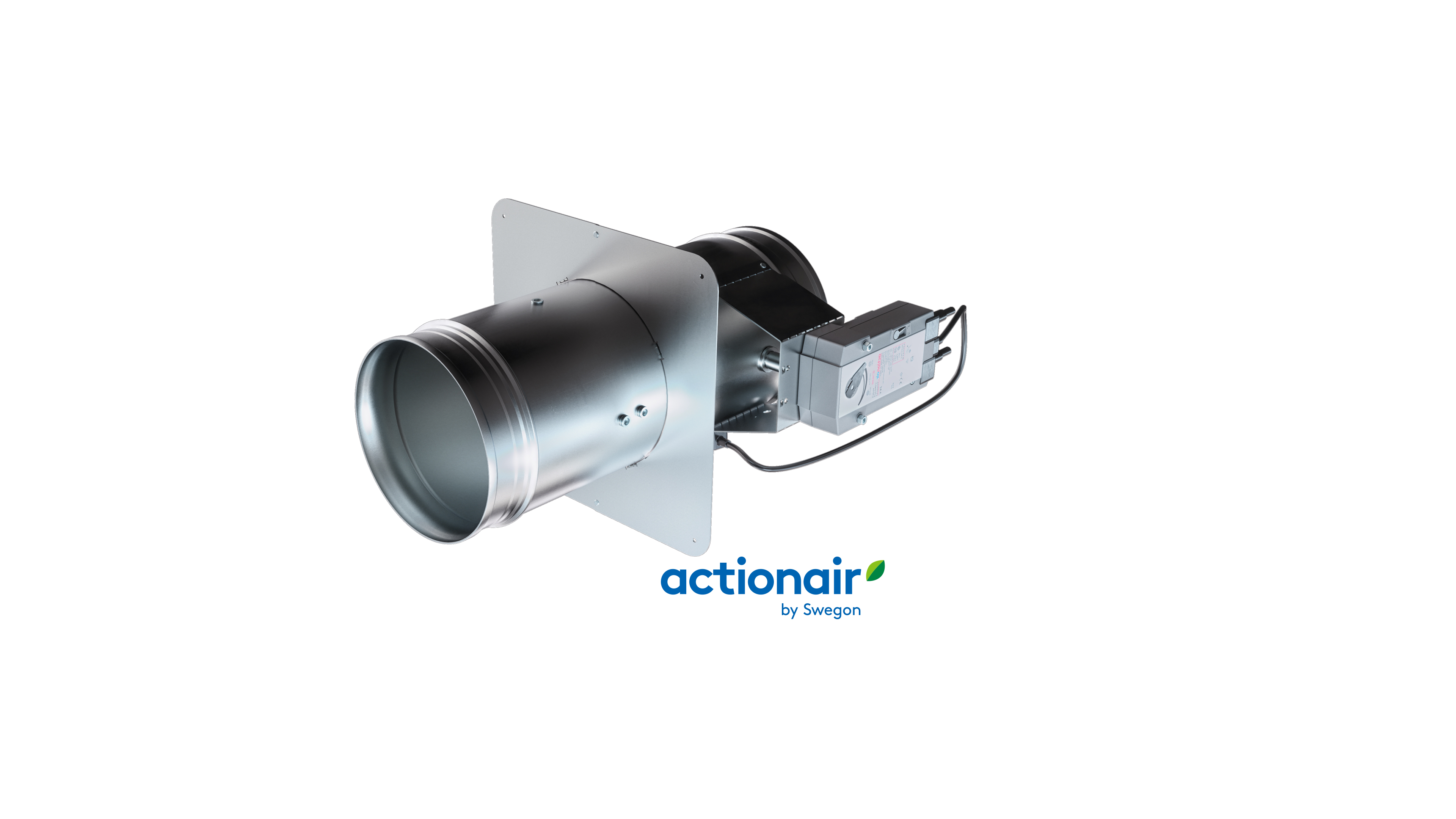

Actionair CSS

'ES' Rated Circular Fire Damper

Actionair ThermShield FD

'EIS ' Rated fire damper

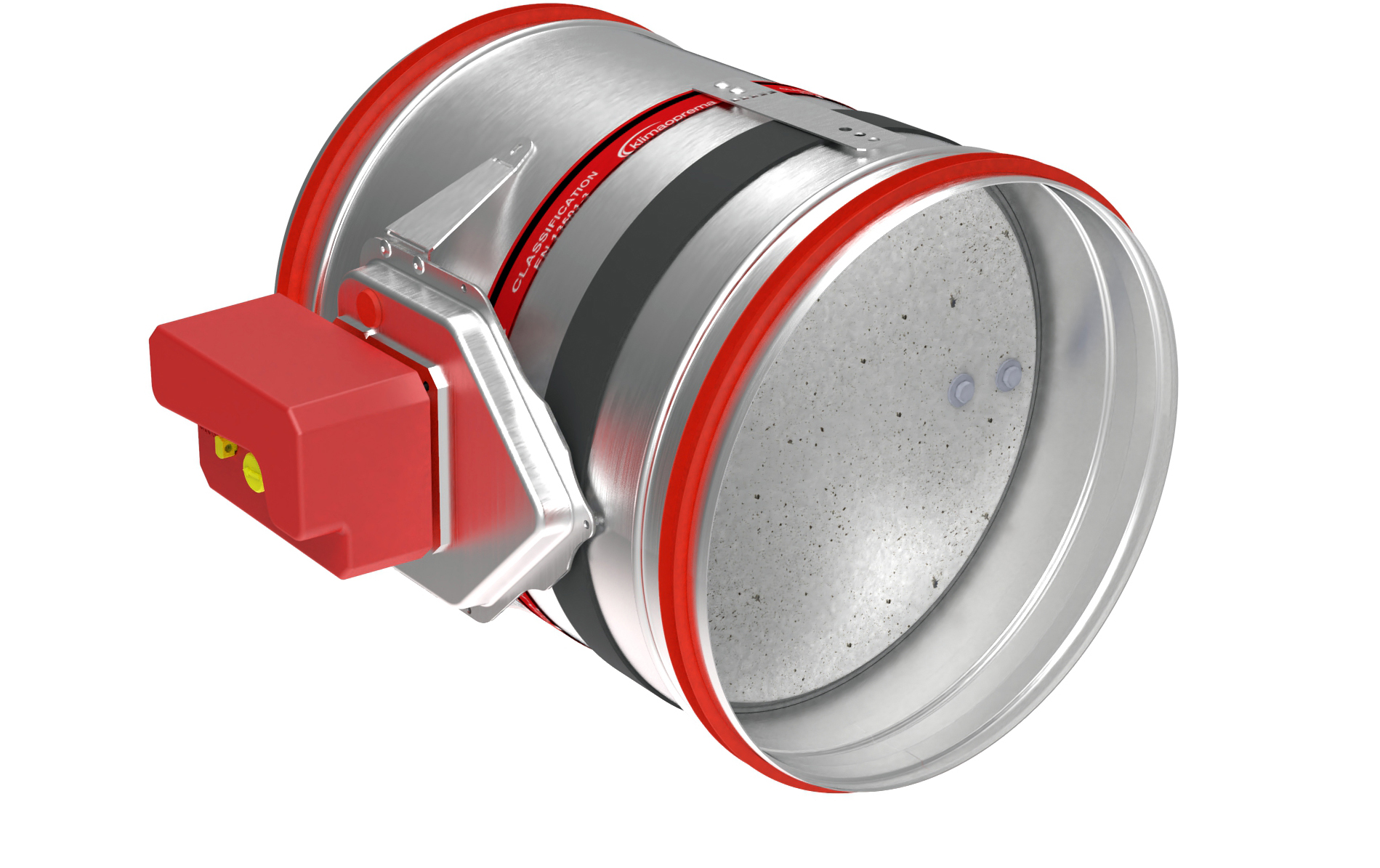

Actionair ThermShield FD-C

'EIS' Circular Fire Damper

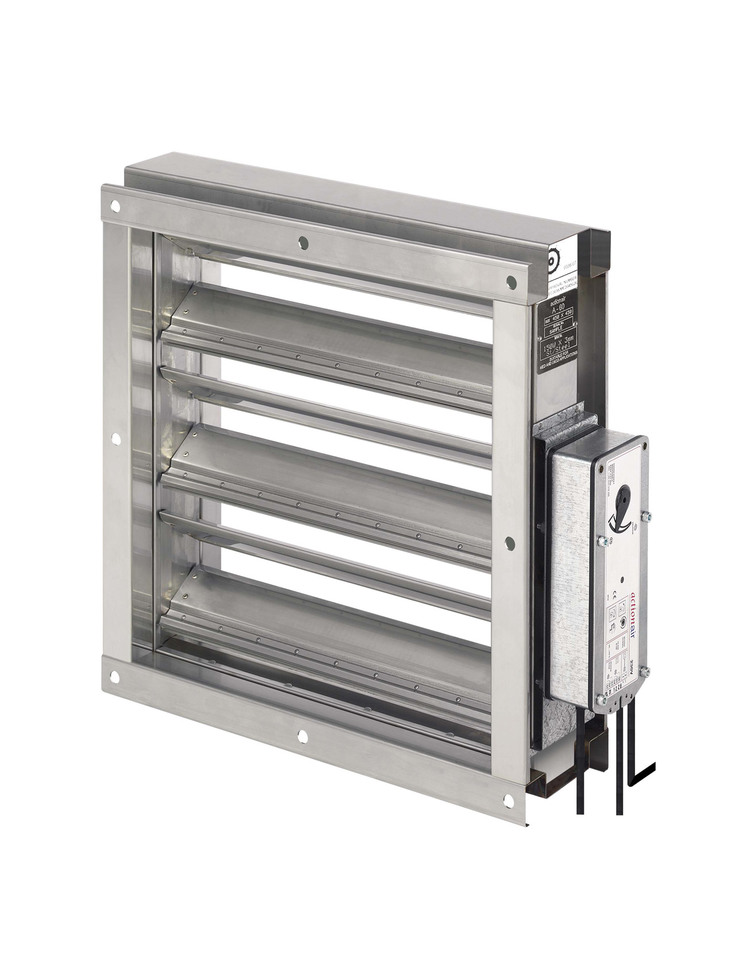

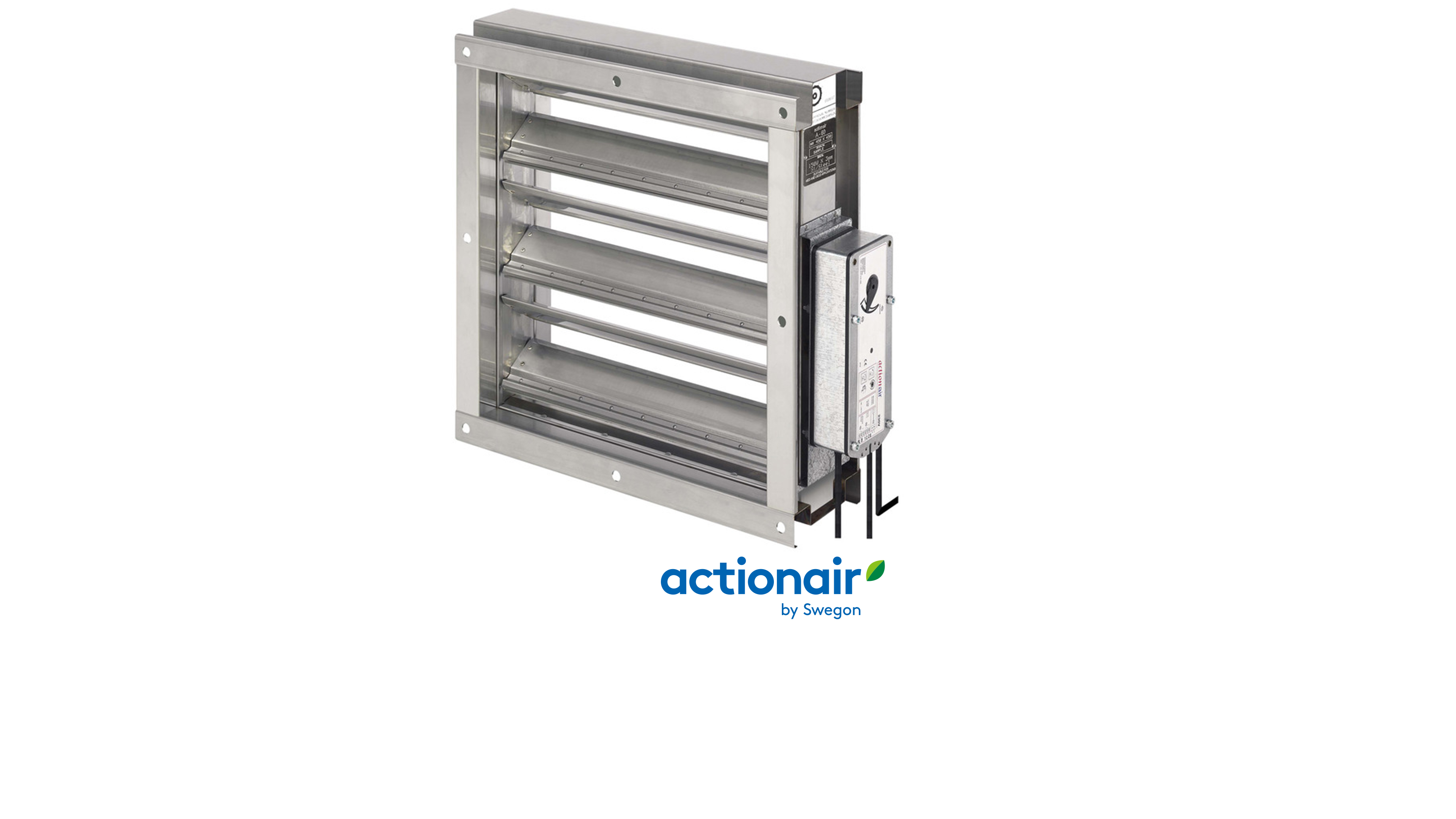

Actionair A60

Marine Fire Damper

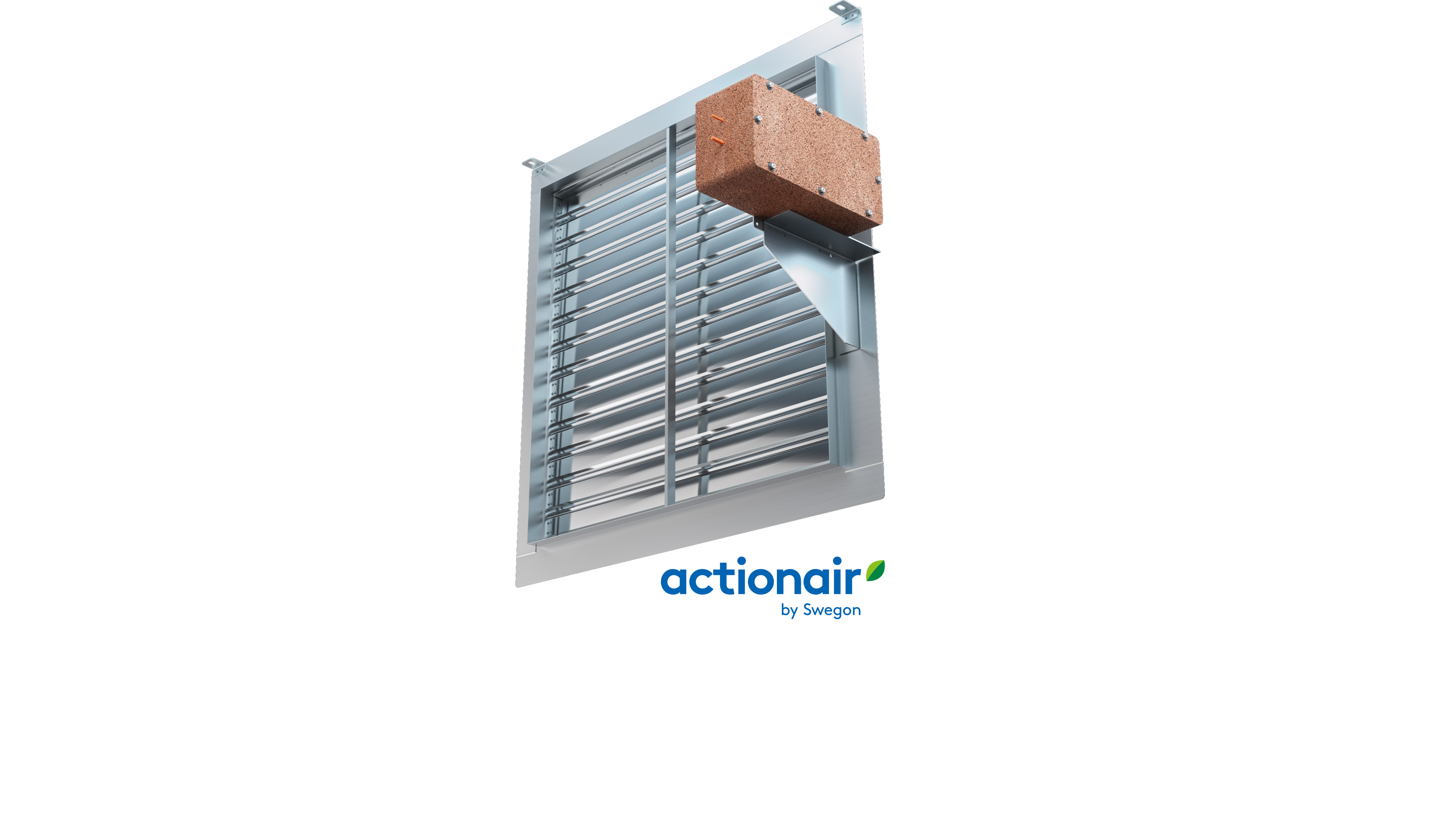

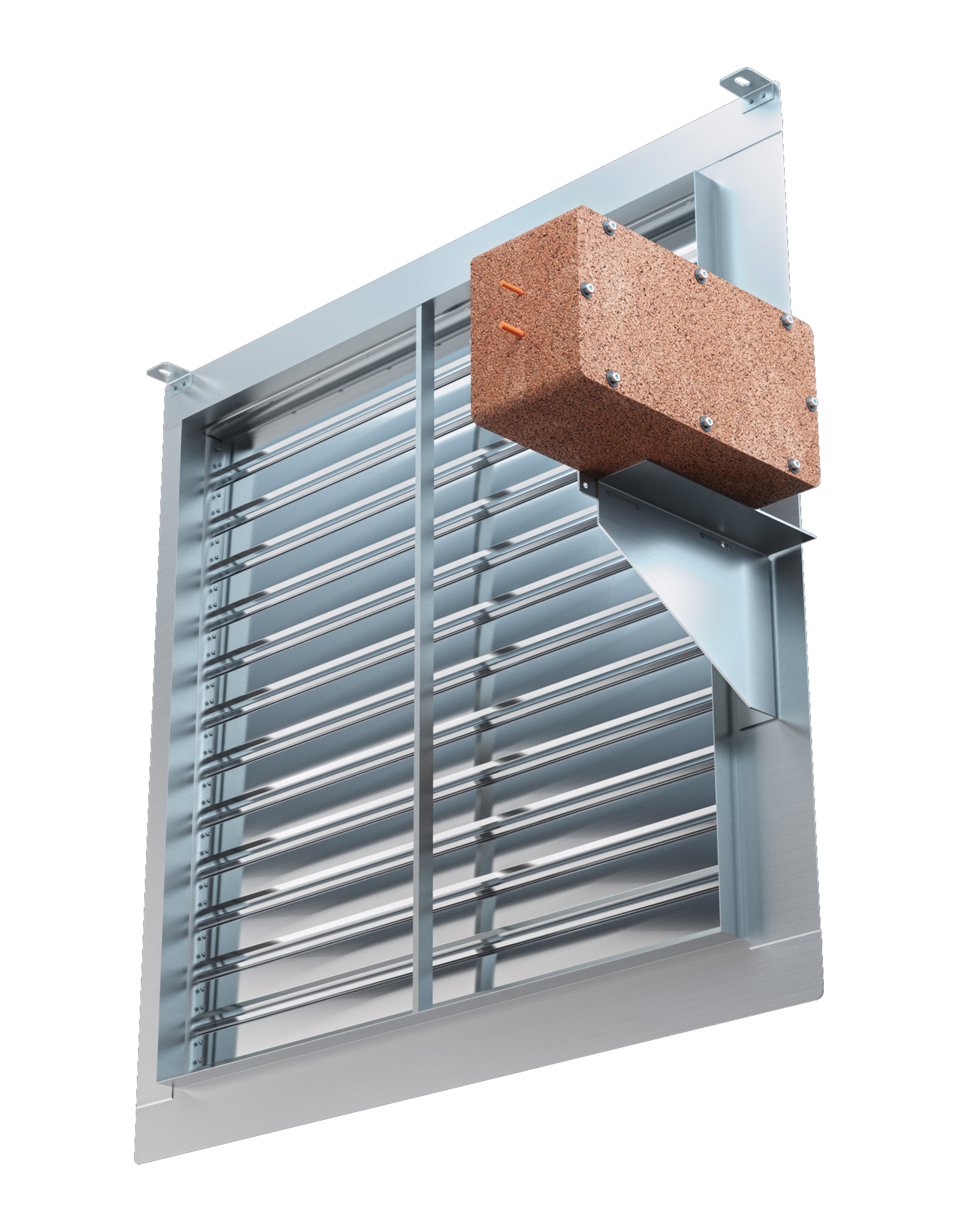

Actionair TransShield ACS

Automated Intumescent Fire Damper

ThermCommand MCD

EN 12101-8 Smoke Control Damper

Tools

Resources to help with the specification & installation of fire dampers

BIM Models

Download BIM models for Actionair fire/smoke dampers.

Damper Builders Work Opening Calculator

Our Damper Builders Work Opening Calculator can help you define the correct size opening our range of Fire & Smoke Control Dampers to ensure a CE compliant installation.

Guide to fire dampers

Do you want to learn a bit more about the differences between damper types? Read our quick guide for an overview of the testing, product standards & applications.

Support

Spare Parts

Order spare parts for Actionair Fire Dampers.

Commissioning/Service

From commissioning to drop testing, we have you covered. It's essential to test smoke and fire dampers, we can help to ensure that your building is safe.

Support/FAQ

Got a question? Try our FAQ section or contact the team.

Product range changes to improve building safety

Swegon are committed to staying at the forefront of life safety damper design and subsequently understand the importance of improving occupant safety in buildings.

We believe that in the event of a fire, both compartmentation and the reduction of smoke transfer through the ventilation system should be the baseline requirement for product performance, resulting in a minimum classification of ‘ES’ (Integrity and Smoke Leakage).

We will be quoting any enquiries received for the FireShield product as the ThermShield FD-R / FDC-R (mechanical fusible link) which carries an enhanced classification of ‘EIS’ (Integrity, Insulation and Smoke Leakage).

FireShield 'E' (Integrity only) products and all variants will be produced for on-going projects and existing specifications where the design is too far developed to facilitate the change. We will continue our commitment for legacy supply including spare parts for maintenance.

Should you have any questions regarding the above, please contact us.

FireShield Documentation
