Lägenhetsspecifika lösningar

Komplett lösning för uppvärmning, kylning och lägenhetsspecifik ventilation i flerbostadshus. I lägenhetsspecifik ventilation har varje lägenhet sin egen individuella luftbehandlingsenhet som ger boende friheten att anpassa inomhusklimatet efter sina personliga preferenser.

Heat pumps

Our award-winning heat pumps optimises the apartment building’s heating and cooling solution in order to reduce emissions and drastically lower the carbon footprint. This is especially critical for residential buildings where maintaining comfortable climate control is essential, while simultaneously adhering to stringent sustainability standards.

Natural refigerants (R290) for low GWP
High efficiency and compact footprint
Heat pump version: hot water up to 75°C
Wide power range 20-290 kW

Apartment-specific air handling units

In apartment-specific ventilation each apartment has it's own air handling unit which allows an individual adjustment to residents needs.

CASA air handling units offer a wide range of installation possibilites from kitchen and bathroom to attic and suspended ceiling mounting options. Units are equipped with a highly energy-efficient rotary or counterflow heat exchanger and reach Ecodesign Energy class A/A+. Selected models are Passive House certified. CASA units come with integrated demand control (RH standard, CO2 and VOC available) and a smart-phone application for controlling ventilation and monitoring indoor air quality.

CUBE offers a unique residential solution for apartment-specific ventilation with air handling units placed centrally in the roof. Cental placement saves space in the living area and makes maintenance and repair possible without accesing the appartment. It also enables lower installation costs due to quick mounting and less ducting required.

freeAir is a wall mounted heat recovery ventilation unit that doesn't require any incoming air ducts. This minimises the number of ventilation ducts and hence the amount of planning and construction work. The unit has Ecodesign energyclass A+ and is Passive House certified.

Cooling and heating modules

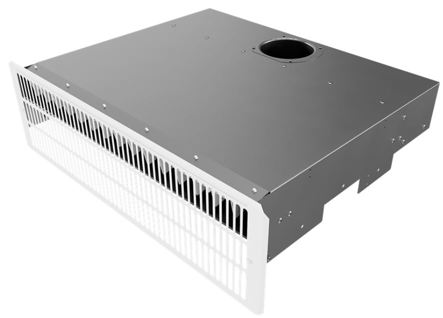

CASA CLIMATE CCF is a waterborne comfort module that in apartment-specific system is connected to CASA air handling unit and the buildings hydronic circuit. It provides fresh supply air, heating and cooling to the apartment. Each apartment can have several room units depending on the need. CCF uses the heating and cooling energy from ground source or district heating/cooling to provide energy-efficient climatization with individual temperature control for each room.

Wall mounted outdoor inlets and outlets for fresh / exhaust air

WGI/WGO outdoor air diffuser for the intake of fresh air and the discharge of exhaust air are especially well-suited for apartment blocks and provides many advantages when planing and installing a ventilation system. More building space for residential use is released and building costs decrease as no vertical ducts and fire dampers are required. The outdoor air diffuser also works at low outdoor air temperatures.

Cooker hoods and pressure balance

Cooker hoods have an essential role in the air quality inside partments, as they remove odours, fumes, heat, humidity and airborne grease that are created in kitchen during cooking.

CASA Genius cooker hoods are connected to an apartment-specific CASA air handling unit. Their high odour catching capacity enables efficient fume removal with lower airflows resulting to lower energy consumption, with less pressure difference and lower noise.

When connected to a ventilation unit cooker hood uses the fan in the ventilation unit. Therefore there is no need for a separate fan or exhaust ducting for the kitchen hood. This also creates less sound in the kitchen compared to hoods that have fan inside of them. The ventilation mode can be controlled from the cooker hood (home/away/boost) and the ventilation unit automatically compensates for the extracted cooking air preventing negative pressure from occurring in the home.

CASA cooker hoods can be equipped with the Safera Safety stove guard system. The stove guard helps to protect against the usual kitchen accidents by preventing the cooker from being left unsupervised while in use and cutting the power if you forget to turn off the cooker.

Sound atennuation

Efficient sound attenuation ensures a peaceful home environment by minimizing noise from ventilation systems — so every room feels calm, quiet, and comfortable.

Swegon’s acoustic products combine a high level of sound attentuation, low pressure drops and compact sizes. This together saves fan energy, easens the design phase of the project, allows easier installation and enables a silent and comfortable indoor environment.

Läs mer om produkterna

Högkvalitativa HVAC-produkter som integreras till en komplett lösning för bostäder

CASA KLIMAT

Ett komplett system för ventilation, uppvärmning och kylning
i flerbostadshus

Läs mer

Ventilation

CASA

Energieffektiv luftbehandlingsenhet som tål även de mest extrema klimatförhållanden. Smarta funktioner inkluderar smartphone-applikation och enkel anslutning till BMS.
