SYST TS

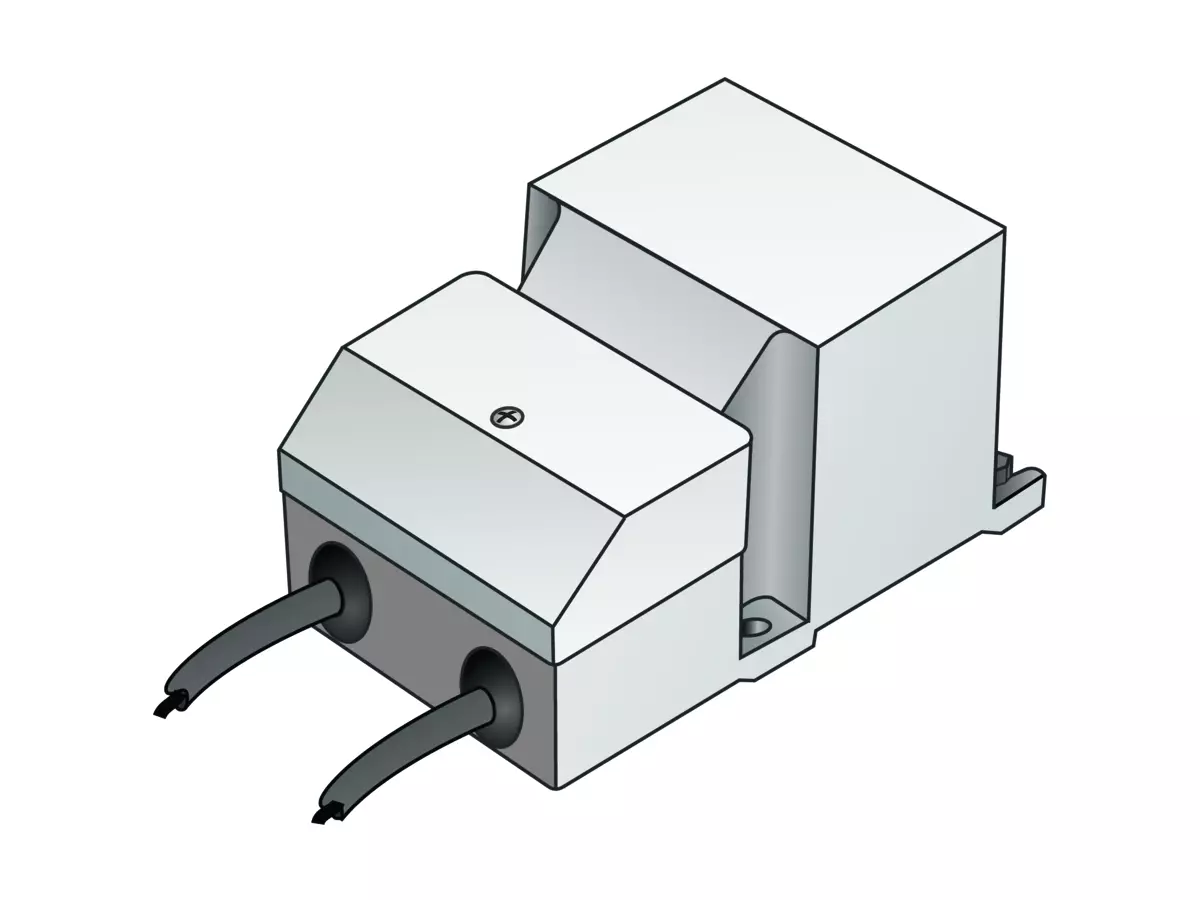

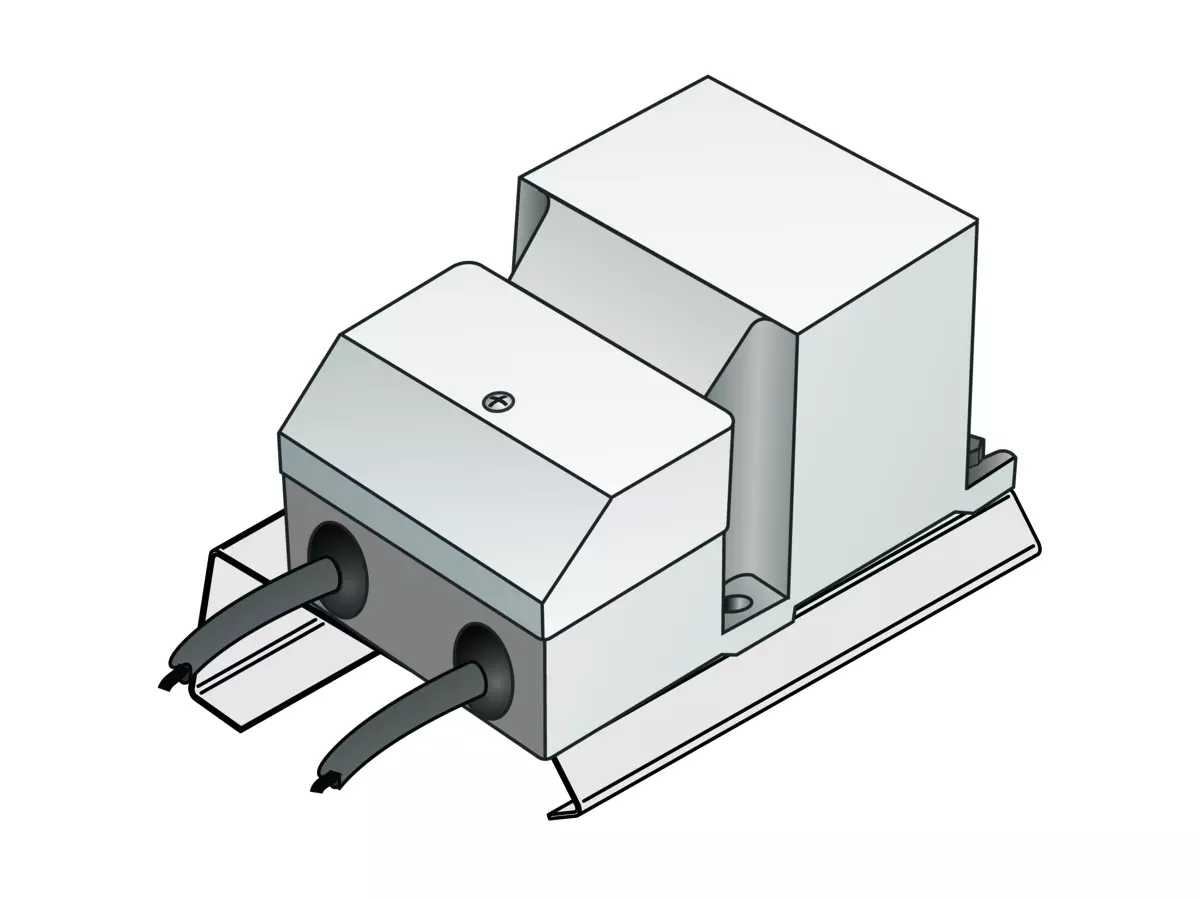

Transformer

Designation: SYST TS-1 72VA 3,15 A TRAFO
Power: 72 VA
Protection class: IP 44
Primary side: 230 V AC, 50-60 Hz. Connection via wall plug (SE). Cable length: 2m.
Secondary side: 24 V AC. T3,15 A, secondary fuse. (20X5 mm Time-Lag T glass fuse) Connecting cable, length = 1 m, with 2 branches, (2x2x0,35mm2).
The transformers are calculated for ambient temperature 40°C and of temperature class E.

Double-insulated protective transformer 24 V 72 VA 3.15 A

Material and surface treatment
