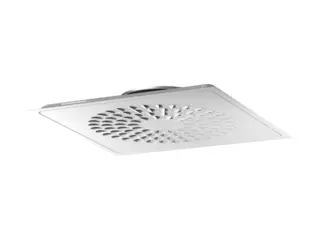

COLIBRI Ceiling VF

Square ceiling diffuser with nozzles for supply air with variable flow

Circular nozzle pattern
Suitable for VAV and DCV applications
Manages large temperatures below room temperature (High DT)
Fast and easy installation and commissioning through Swegon Quick Access
100% flexible distribution pattern
Designed for modular suspended ceiling
Used together with the REACT ALS commissioning box for variable flow regulation
Commissioning box ALS with one- or two-dimensional changes between duct and air diffuser connection
ADAPTER for suspended ceiling system
Standard colour White RAL 9003
- 5 alternative standard colours
- Other colours upon request

Calculate with your requirements

Do you want to see the nozzle air diffuser in practice? Click here!

Learn more about REACT.

AIR FLOW - SOUND PRESSURE ROOM (Lp10A) *)
COLIBRI Ceiling VF Size				25 dB(A)		30 dB(A)		35 dB(A)
COLIBRI Ceiling VF Size				l/s	m3/h	l/s	m3/h	l/s	m3/h
250-600				73	263	86	310	101	364
315-600				93	335	109	392	127	457

COLIBRI Ceiling VF Size	REACT ALS Size	Min.*		25 dB(A)		30 dB(A)		35 dB(A)
COLIBRI Ceiling VF Size	REACT ALS Size	l/s	m3/h	l/s	m3/h	l/s	m3/h	l/s	m3/h
250-600	160-250	7	25	62	223	74	263	87	313
315-600	250-315	20	72	93	335	108	392	127	457

COLIBRI Ceiling VF Size	ALS Size			25 dB(A)		30 dB(A)		35 dB(A)
COLIBRI Ceiling VF Size	ALS Size			l/s	m3/h	l/s	m3/h	l/s	m3/h
250-600	160-250			62	223	73	263	87	313
250-600	200-250			66	238	78	281	91	328
315-600	200-315			84	302	98	353	115	414
315-600	250-315			89	320	103	371	119	428
Data is specified for supply air with an open damper when a REACT ALS or ALS commissioning box is used. ) Lp10A = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m2 room absorption area. The product must not go below min. as the measurement function cannot then be guaranteed. NOTE: for a high pressure drop across the product, it may be difficult to reach the min. flow.

ADAPTER

Adapter for modular suspended ceiling systems

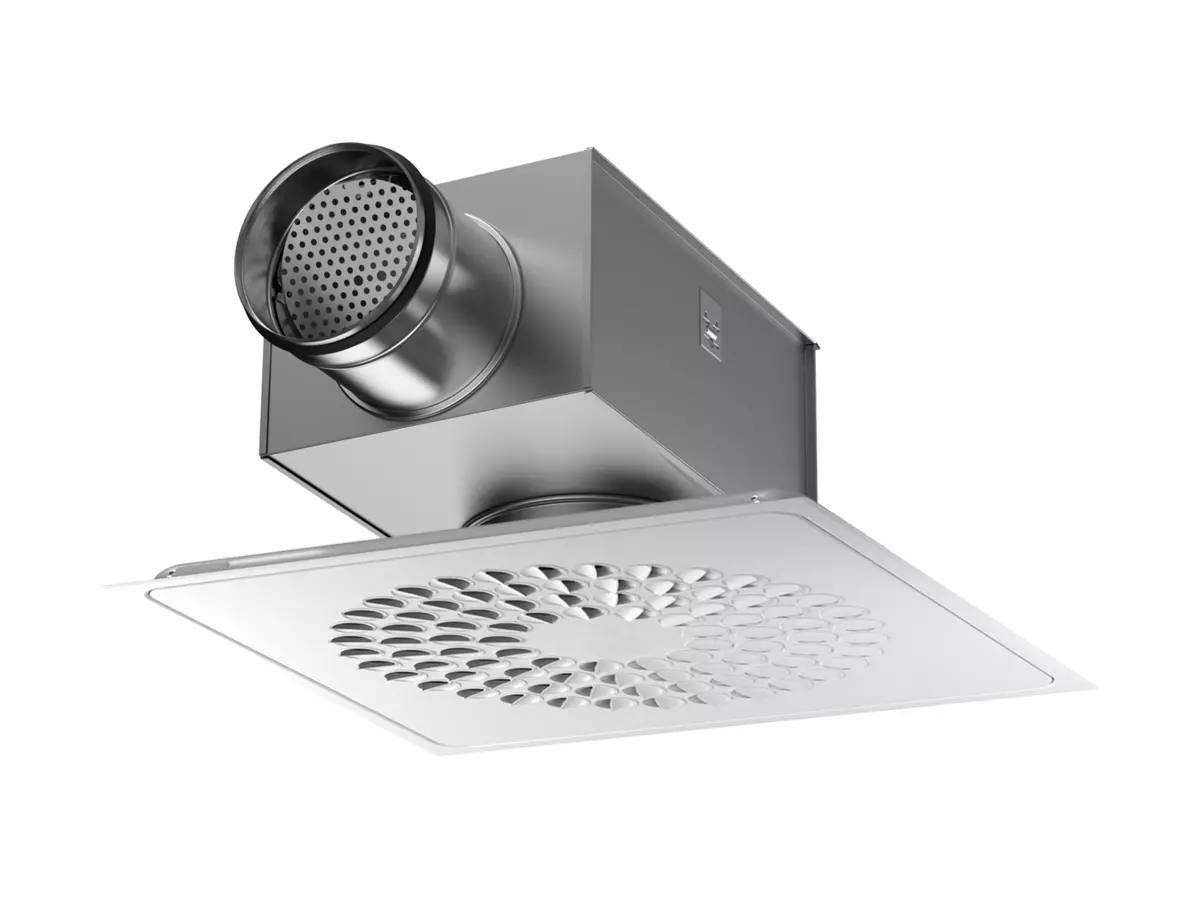

ALS

Commissioning box for air diffusers

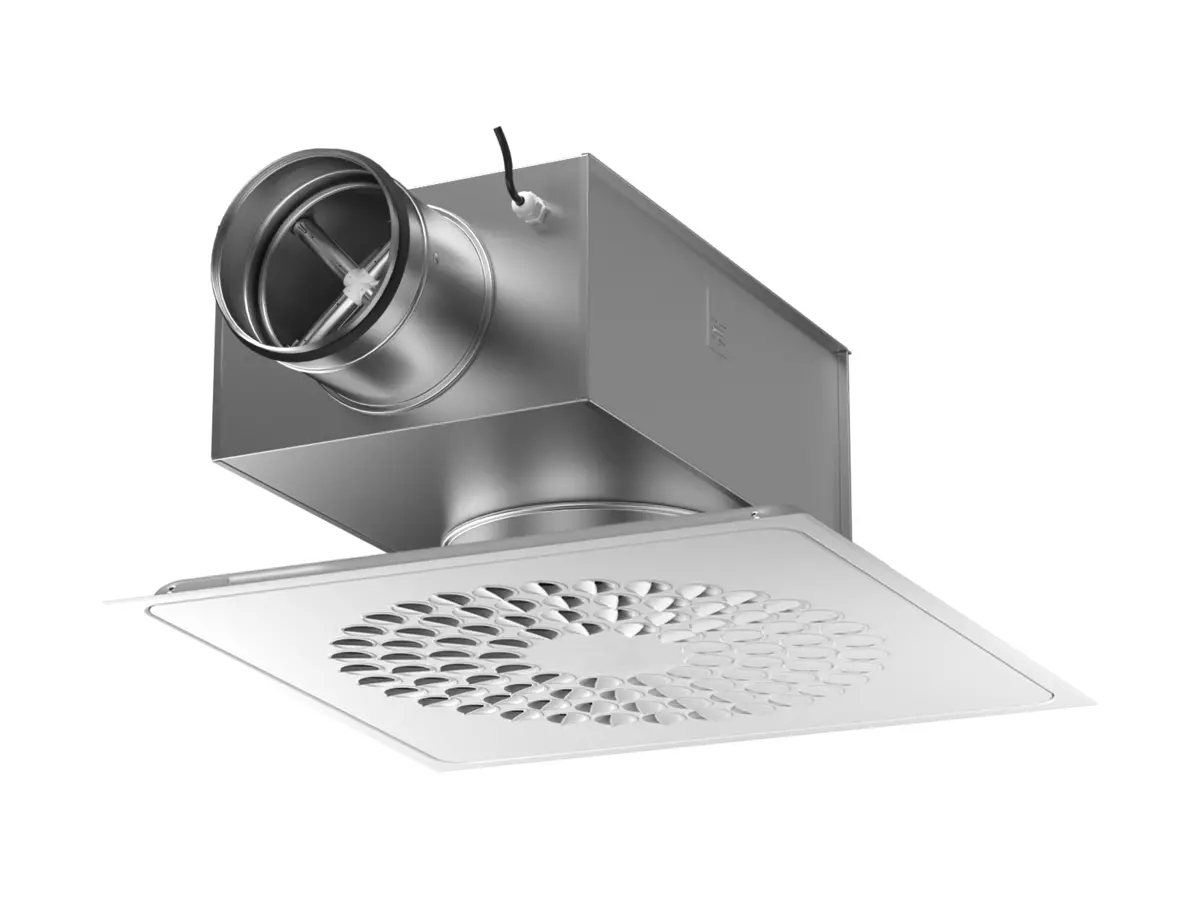

REACT ALS
