Ventilation unit with rotary heat exchanger suitable for ceiling mounting 72-331 m³/h
  • Genius control
  • Air flow range 72-331 m³/h
  • Rotary heat exchanger with temperature efficiency high
  • Ecodesign energy class A
  • Low sound level
  • Eurovent certified

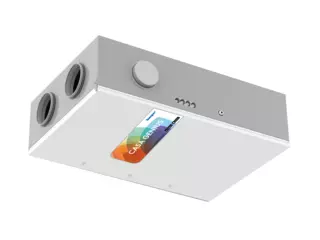

Residential air handling unit (1050 x 700 x 296 mm, Ø160 mm) with rotary heat exchanger for houses, small offices etc.

Flat design and compact size enables various mounting options, also ideal for ceiling mounting as the height of the unit is under 30 cm. Cooker hood connection (Ø125 mm) in the side of the unit.

The ventilation unit has intelligent demand-controlled humidity function (RH) as standard. CO2 and VOC automation are available as accessory. Intelligent anti-frost protection ensures continuous ventilation and automatic summer function with passive cooling helps during summer. Also external coils for heating and cooling are available as accessories.

NEW GENIUS - R4-C is available with the new Genius control system. The ventilation unit can be controlled from a separate Genius control panel, CASA Genius mobile app or with Swegon CASA cooker hoods and it can be connect to the automated building management system with SEM Modbus module or configurable I/O.
