PARASOL

Integrated comfort modules for heating, cooling and ventilation

PARASOL is the generic name of a family of products consisting of comfort modules. The modules are designed to supplement one another and together create optimal room comfort.

The comfort modules operate on a basic principle that is closely akin to that of chilled beams. The difference is mainly that the comfort module distributes air in four directions instead of two. This maximizes the area where supply air is mixed with room air so that the modules discharge air at high capacity, yet they do not occupy more ceiling space than necessary.

The comfort modules are also optimized to quickly mix the discharged air with room air providing better comfort in the room. In heating applications, this technique can be advantageously utilized to efficiently provide provide heat along the ceiling.

Adjustable spread pattern

The easily adjustable nozzles in combination with Swegon ADCII (Anti-Draught Control), offer maximal flexibility if changes in the room layout become necessary.

All the sides can be set independently of one another so that the comfort module can distribute more or less air and simultaneously discharge air in whatever direction desired in the room.

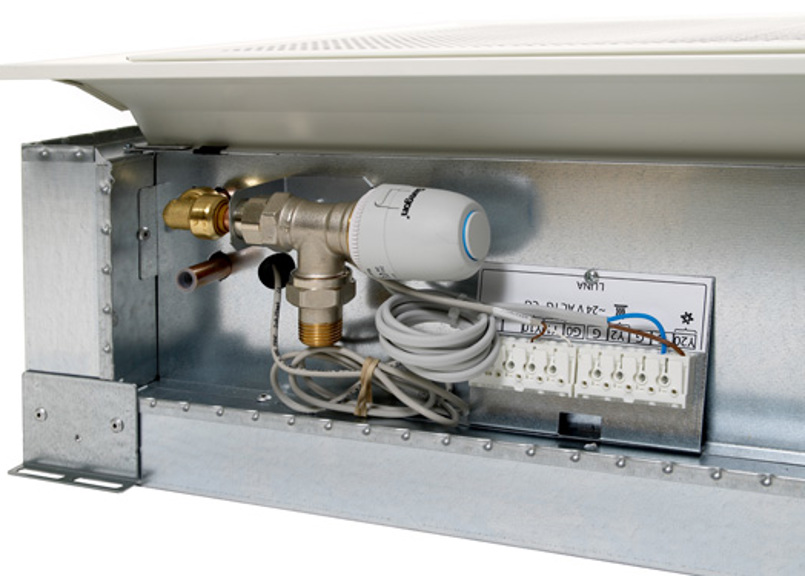

Modules: Supply air Supply air and cooling Supply air, cooling and heating (water) Supply air, cooling and electric heating

See how the product performs based on your requirements

Calculate

Technical specifications



Primary airflow: Up to 85 l/s
Pressure range: 50 till 150 Pa
Total cooling capacity: Up to 2055 W
Heating capacity: Water Up to 2700 W
  Electric: Up to 1000 W

Sizes: Parasol 600: 584 x 584 mm
592 × 592 mm
598 × 598 mm
617 × 617 mm
623 × 623 mm
642 × 642 mm
667 × 667 mm
Height: 220 mm
   Parasol 1200: 1184 × 584 mm
1192 × 592 mm
1198 × 598 mm
1242 × 617 mm
1248 × 623 mm
1292 × 642 mm
1342 × 667 mm
Height: 220 mm / 240* mm
    *=Parasol 1200 PF

Ladda ner dokument

You can find more documents on our document search page. Looking for older versions, you can find them in the document archive

Filter
Document Article Document type Size Format Download
Building product declaration PARASOLc Quality 73.68kB pdf
Installation instructions CG IV-KIT Instruction 1.29MB pdf
Quick Guide - Flexible hoses SYST FH Instruction 75.03kB pdf
Wiring PARASOL - LUNA Instruction 272.69kB pdf
Installation instructions WCD2 WCD2-KIT Instruction 4.09MB pdf
Guide, Suspended ceiling variants Suspended ceiling variants ProductSheet 1.98MB pdf
Application Guide - PARASOL (Stand alone/WISE gen.1) PARASOL Brochure 1.76MB pdf
Operation and maintenance Comfort modules Instruction 39.89kB pdf
Installation instructions, variant X (electrical) PARASOLc Instruction 1.52MB pdf
Quick Guide - PARASOL (Stand alone/WISE gen.1) PARASOL Brochure 1.48MB pdf
Wiring instruction (WISE gen.2) PARASOL-WISE IOREa Instruction 411.3kB pdf
Installation, commissioning, maintenance PARASOLc Instruction 2.71MB pdf
Certificate, Chilled beams EUROVENT Quality 159.81kB pdf
Integrated comfort module PARASOLc ProductSheet 2.79MB pdf
ETL-certification PARASOLc Quality 337.35kB pdf
Condensation sensor CG-IV ProductSheet 184.59kB pdf
Quick guide, Flexible Hoses SYST FH Instruction 73.6kB pdf
Certified - Test standards Confirmation Quality 162.69kB pdf
Installation instructions CG IV-KIT Instruction 1.32MB pdf
Submittal Sheet PARASOLc, U.S. version Others 98.4kB pdf
Installaton-Commissioning-Maintenance PARASOLc-m U.S.version Instruction 2.43MB pdf
Declaration of conformity (CE), variant X PARASOL-X Quality 184.74kB pdf
Overview - Waterborne climate systems (SPREAD) Water Overview Brochure 5.61MB pdf
Installation instruction for plasterboard ceiling frame PARASOLc-T-FPB Instruction 391.65kB pdf
Integrated comfort module PARASOL U.S version ProductSheet 2.63MB pdf

Showing 25 of 26 hits
