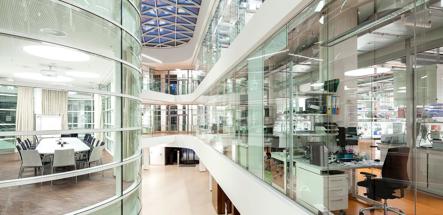

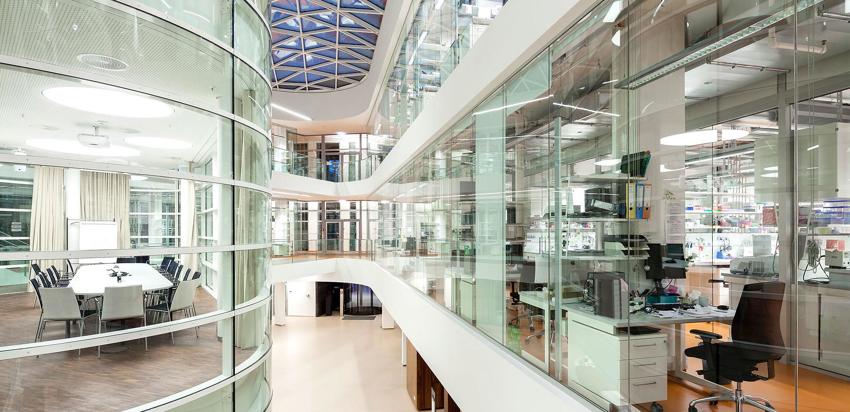

Max Planck Institute for Biology of Ageing | Cologne
?
FIELD OF APPLICATION: R&D Facilities
CLIENT: Max-planck-institute for biology of ageing
PLANNING OFFICE: IGF Feldmeister, Münster​
EXECUTIVE COMPANY: di-pa Technische Gebäudeservice GmbH, Cologne​
Photo: © Jürgen Schmidt
Products used
PDA
Swirl diffuser with fixed delicately stamped, radially arranged blades. Available with circular or square front panel.
VZ-AR
Duct diffuser in a circular or oval design with individually adjustable air deflectors.
AKK-TIE
Chilled beam unit consisting of two halves that are mounted via bayonet suspension around a VZ-AR duct diffuser.
SMC
Round flow rate measurement nozzle SMD consisting of a tube body with centrally positioned measurement holes for measuring the differential pressure as well as a perforated flap with position indicator for adjusting flow rate.
SPI
Due to its fluidic characteristics the iris diaphragm SPI is very well suited for adjusting and monitoring the air flow in circular air ducts.

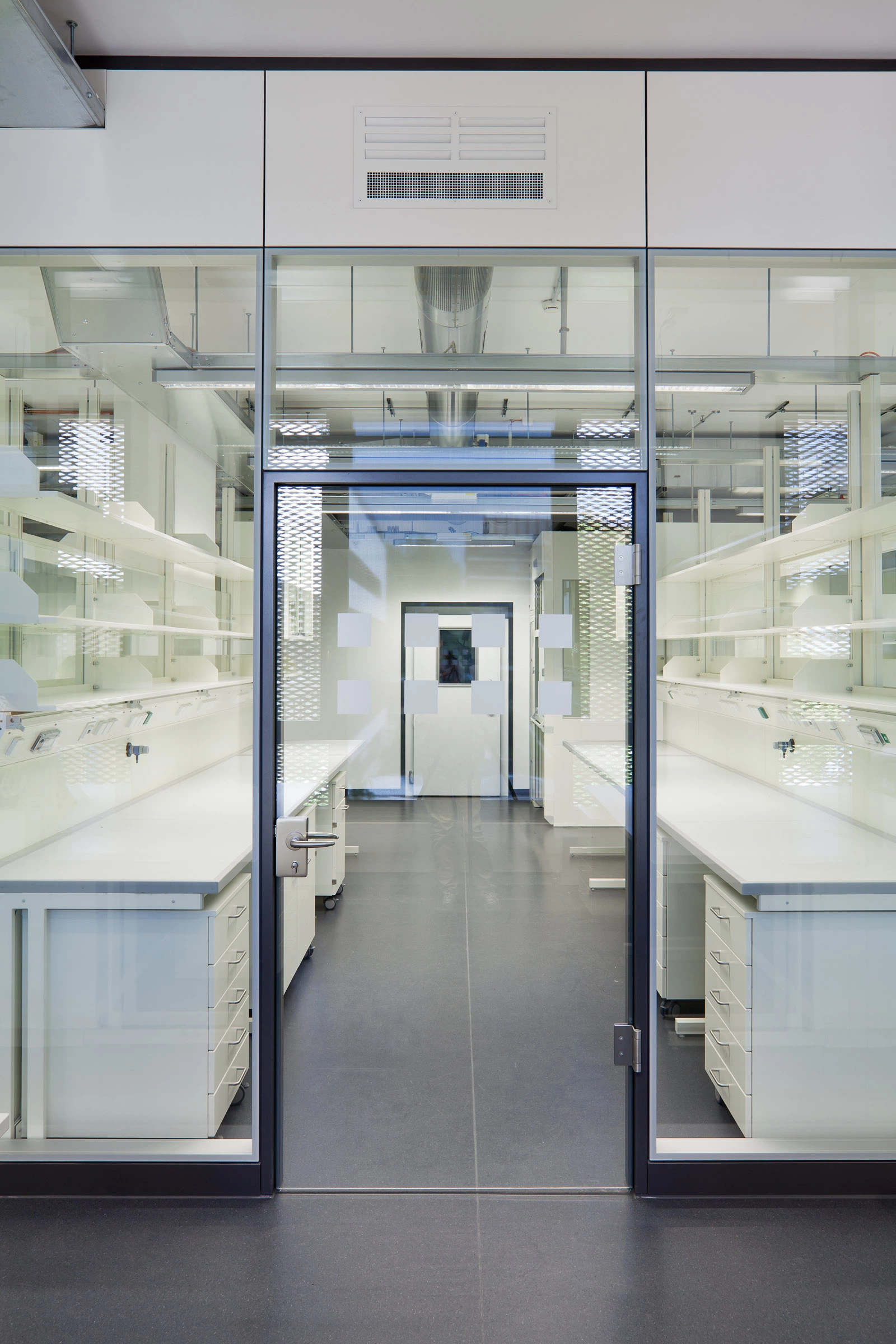

Laboratory Cecad | Köln
Specially designed ventilation components for laboratory use
Over a long development period we specifically designed and supplied ventilation components, such as duct diffuser systems for laboratory use in various diameters, consisting of a volume flow regulator, a silencer, the actual duct diffuser of the VZ-AR series, an iris diaphragm and in the further system strand a combination diffuser for supply- and exhaust air, type: VAR, i. e., a holistic tube outlet system (including smooth pipes, connectors etc.)​
Furthermore we designed floor convectors of the type AKK-DSM, consisting of a height adjustable commissioning box with integrated heat exchanger and axial fans, on top completed with manually manufactured stainless steel structures of the DSM series.
FIELD OF APPLICATION: R&D Facilities
CLIENT: medfacilities GmbH
PLANNING OFFICE: IGF Ingenieurgesellschaft Feldmeier mbH​
EXECUTIVE COMPANY: Pleitz GmbH & Prinzing Gebäudetechnik GmbH
Photo: ©N. Kazakov
Products used
PDA
Swirl diffuser with fixed delicately stamped, radially arranged blades. Available with circular or square front panel.
VZ-41
Linear slot diffuser well suited for wall and ceiling installation, available in single and multi-slot configurations as well as continuous assembly.
SKD
Adjustable swirl diffuser with a square or circular front panel with radially arranged, adjustable air guiding elements.
VZ-AR
Duct diffuser in a circular or oval design with individually adjustable air deflectors.
AKK-TIE
Chilled beam unit consisting of two halves that are mounted via bayonet suspension around a VZ-AR duct diffuser.
PU
A square ceiling diffuser consisting of a perforated, cubic body with a connecting unit and a vertical spigot.
DSM
Design elements made of drawn stainless steel in various designs and arrangements of the structural edges.
VZ-41-ZA
The combined slot diffuser VZ-41-ZA is a linear diffuser with parallel slot rows for supply and extract air. The diffuser system is well suited for mounting in walls.
ASD/CSD
Ventilation grilles for usage with supply and extract air with horizontally or vertically arranged, individually adjustable air guiding blades and self-locking blade bearing.
KVR-S
A constant flow rate controller operated with external energy. Adjustment is done by an asymmetrically arranged, angled control plate that guarantees good control even at low flow rates.
STG
Fan controllers designed for controlling the fan speed of compact fans used in multiple SLT products. For example our chilled beam for floor and wall mounting as well as our chilled beam unit for expanding an SLT duct diffuser system.
VVSR-RU
?????

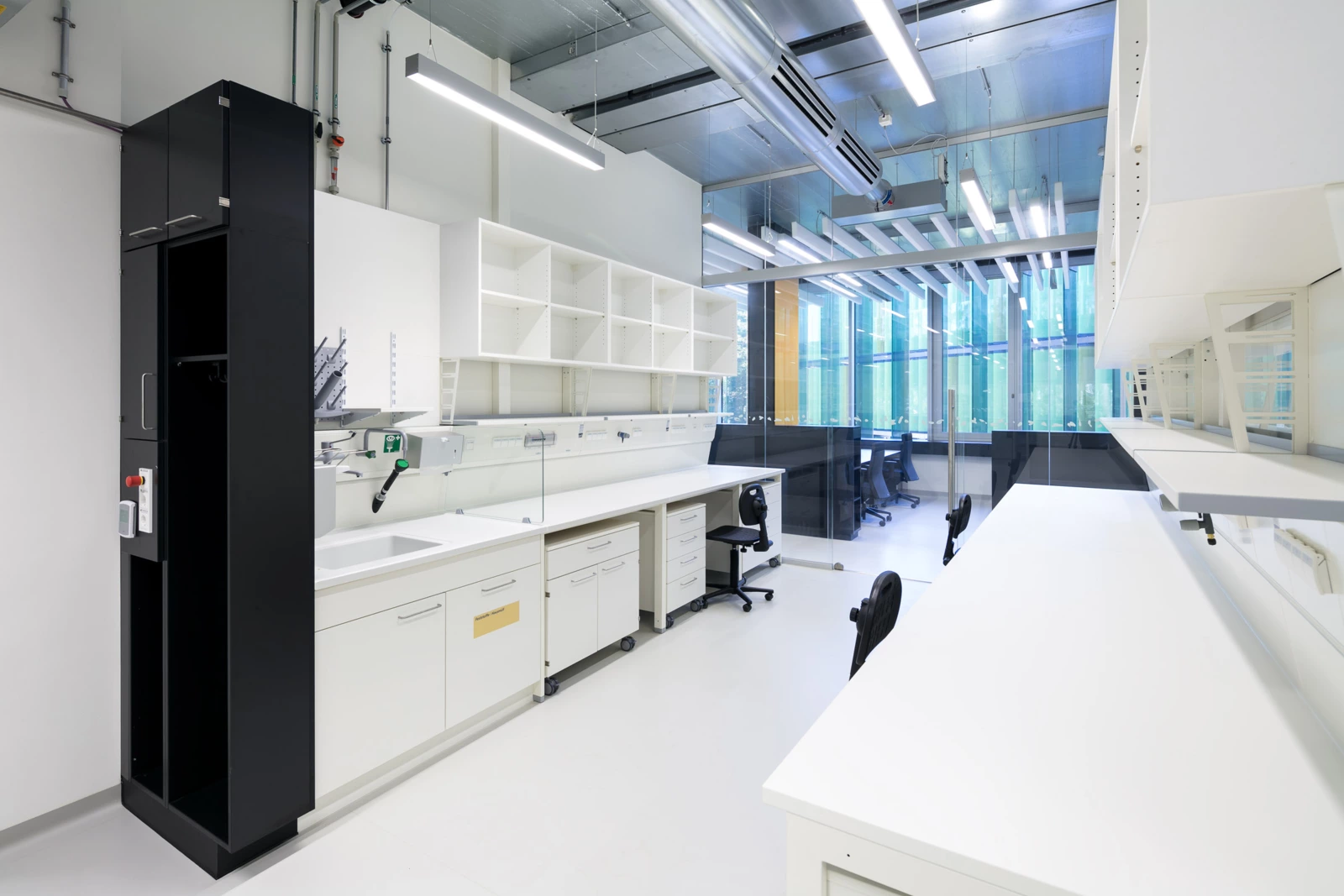

Research Center DZNE | Bonn
A duct diffuser system in a very large scale
For this special application in the DZNE, Bonn, we have developed and delivered unique duct diffuser systems on a very large scale. Duct diffuser system for laboratory use as complete unit in different lengths and diameters, consisting of an analogue variable volume flow regulator, a silencer, the actual duct diffuser of series VZ-AR – in this application with two blow-out areas - and in the further system strand a smooth duct, plug-in binder and possibly end caps.
FIELD OF APPLICATION: R&D Facilities
CLIENT: Waldner Laboreinrichtungen GmbH & Co. KG
PLANNING OFFICE: Dr. Heinekamp Labor- und Institutsplanung GmbH
EXECUTIVE COMPANY: Caverion Deutschland GmbH
Photo: © N. Kazakov
Products used
PDA
Swirl diffuser with fixed delicately stamped, radially arranged blades. Available with circular or square front panel.
VZ-41
Linear slot diffuser well suited for wall and ceiling installation, available in single and multi-slot configurations as well as continuous assembly.
VZ-AR
Duct diffuser in a circular or oval design with individually adjustable air deflectors.
PU
A square ceiling diffuser consisting of a perforated, cubic body with a connecting unit and a vertical spigot.
KVR-S
A constant flow rate controller operated with external energy. Adjustment is done by an asymmetrically arranged, angled control plate that guarantees good control even at low flow rates.
AKK
The active chilled beam AKK is a ceiling cooling convector for free and forced convection during operation. It consists of a finned tube heat exchanger with attached axial fans that are surrounded by a closed frame.
STG
Fan controllers designed for controlling the fan speed of compact fans used in multiple SLT products. For example our chilled beam for floor and wall mounting as well as our chilled beam unit for expanding an SLT duct diffuser system.
VVSR-RU
?????
