VZ-41

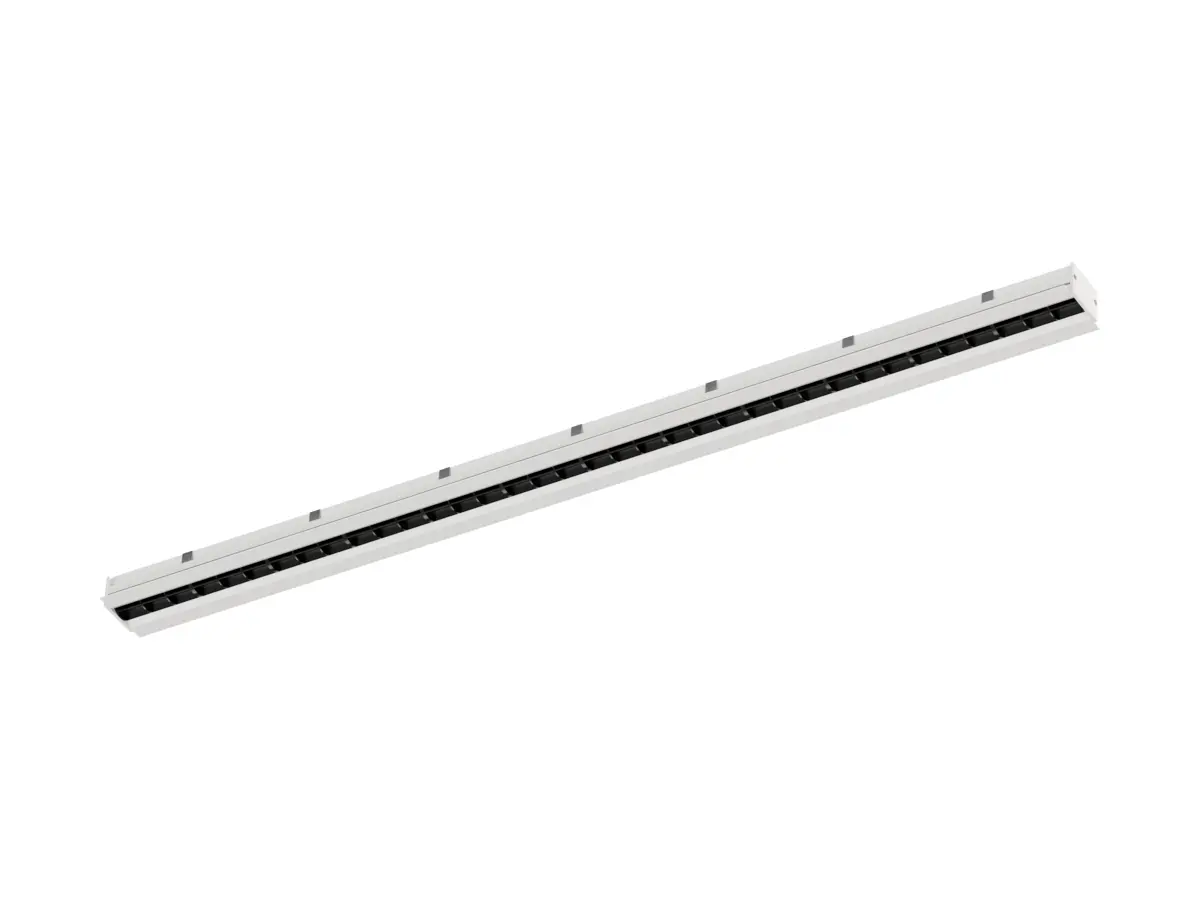

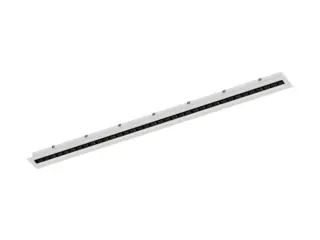

VZ-41 is a linear slot diffuser with a profile width of 41 mm, intended for wall or ceiling installation. The diffuser is available with 1 to 4 slots, and can be installed as single module or in a continuous linear arrangement, with active and passive diffusers without breaking the aesthetic uniformity. End pieces and end angles allow for versatile use of the slot diffuser, these can either be mounted on the right, left or both sides of the diffuser.

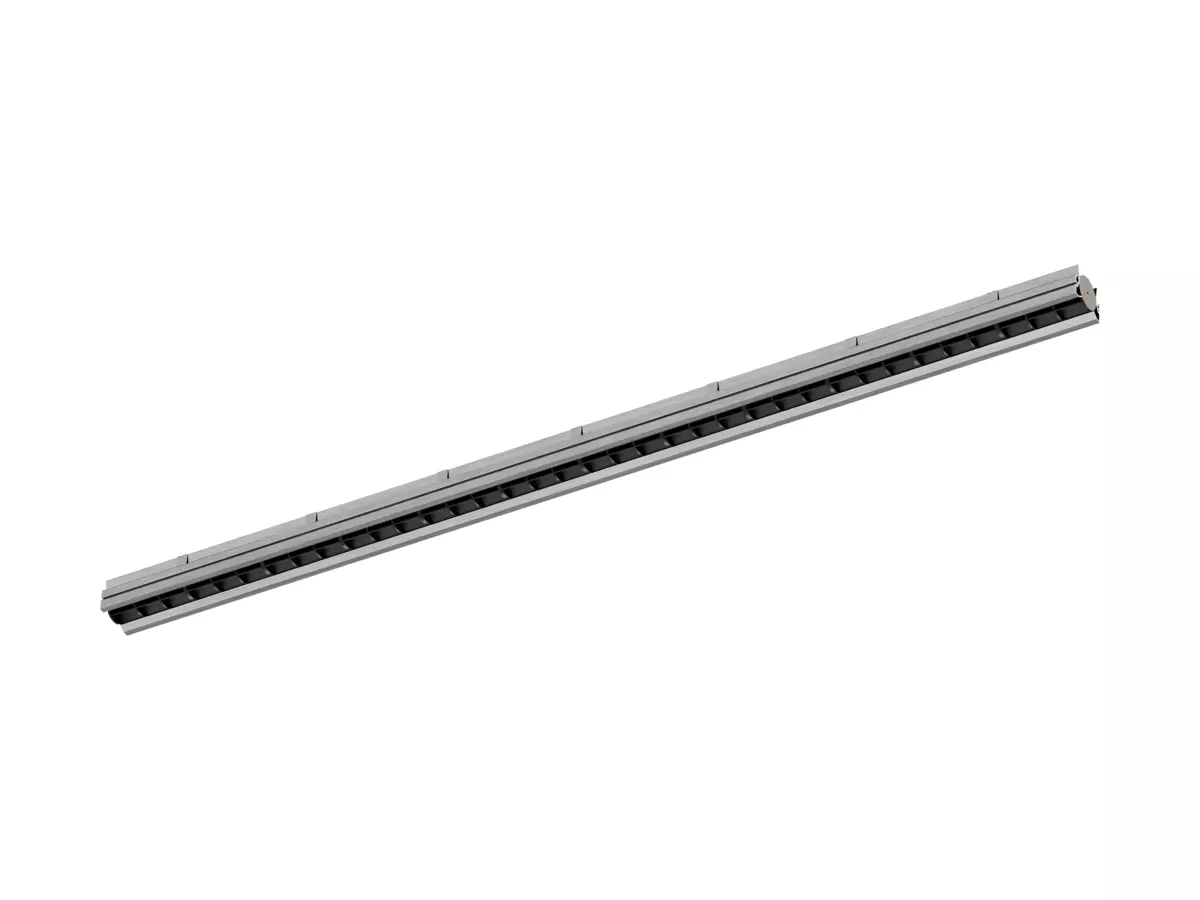

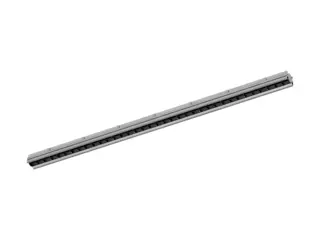

The diffuser is available with or without support profiles. The slot front rail is fitted with 75 mm long air deflectors featuring rectifier blades and double boomerang profiles, each individually adjustable.

VZ-41 is intended for supply or extract air and is suitable for constant or variable air flow systems. Individually adjustable air deflectors on the slot diffuser allow for easy adjustment of the distribution pattern. The air deflectors enables either a uniform air discharge or multiple smaller streams that can be directed within a 180° range. By using smaller air discharge, a rapid velocity can be achieved and a temperature reduction.

Slot diffuser

• Made of extruded aluminium profiles.
• Standard colour:
  • RAL 9003, signal white, gloss 70
• Alternative standard colours:
  • RAL 9010, pure white, gloss 30
  • RAL 9006, white aluminium, gloss 70
  • RAL 9007, grey aluminium, gloss 30
  • RAL 9005, jet black, gloss 70
  • RAL 7035, light grey, gloss 70

End angles and end pieces

• Made of aluminium.
• Painted in the same colour as the slot diffuser.

Air deflectors

• Made of impact-resistant plastic.
• Standard colour (similar to):
  • RAL 9005, jet black
• Alternative standard colours (similar to):
  • RAL 9010, pure white
  • RAL 9003, signal white
  • RAL 9006, white aluminium
  • RAL 7035, light grey

• Other lengths or slots available on request.
• Other colours available on request.

The slot diffuser is available in the lengths 1000, 1200, 1500 and 2000 mm as standard.

VZ-41 is suitable in rooms with ceiling heights from 2.3 m to 4.0 m, with a recommended air flow range between 50 m3/h lm and 150 m3/h lm at temperature differences of +4 K to -12 K.

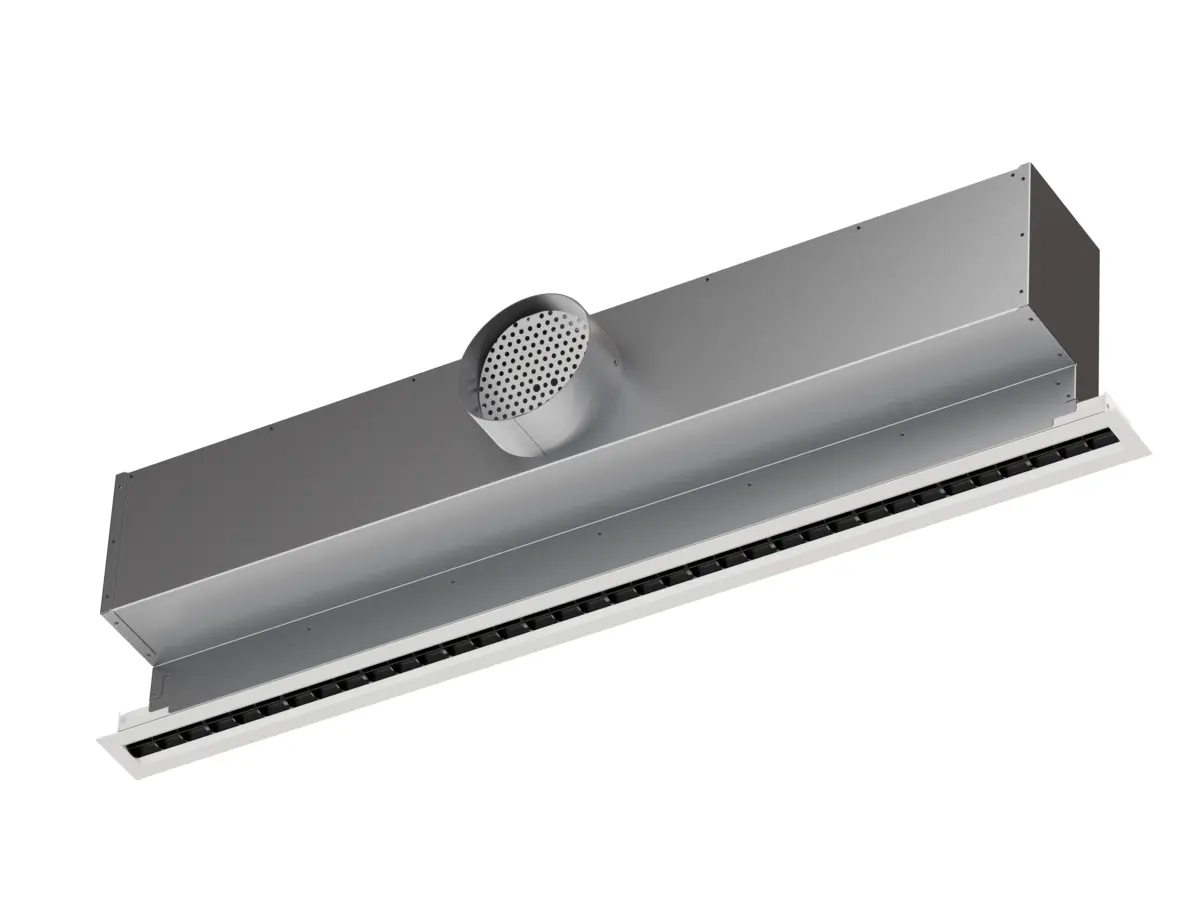

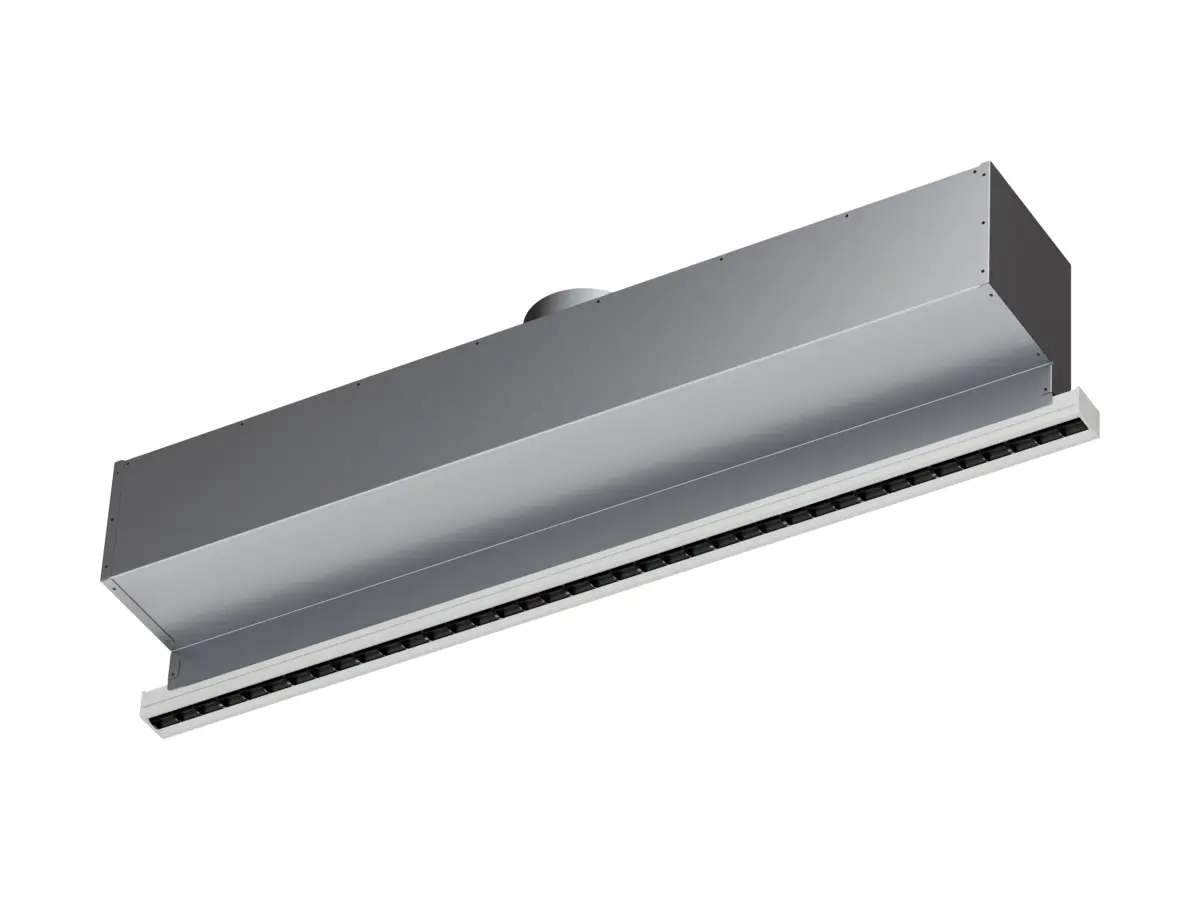

VZ-41 can be installed as a single module or in a continuous linear arrangement, with a combination of active and passive diffusers. The active slot diffusers are connected to the duct system using the plenum box AK-41.

For installation in continuous lengths, a connector is required (UPV40). For the passive diffusers a u-profile connection with M6 suspension is used (UPV40-M6).

The active slot diffusers are fastened to the plenum box using one of the following fastening methods:

• Rivets.
• Traverse drywall.
• Clip fastening (for wall installation).

Slot diffuser VZ-41 with a system width of 41 mm, intended for wall or ceiling installation with the following features:

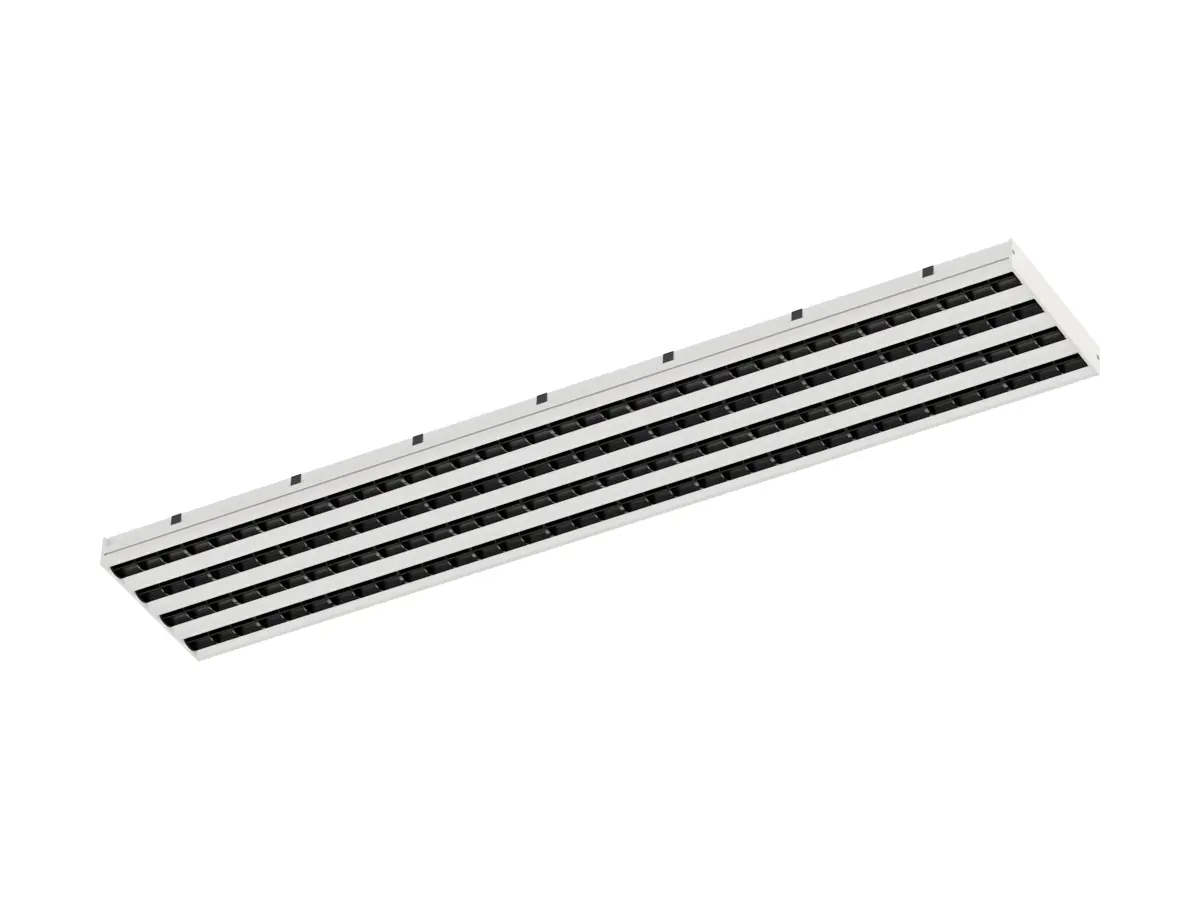

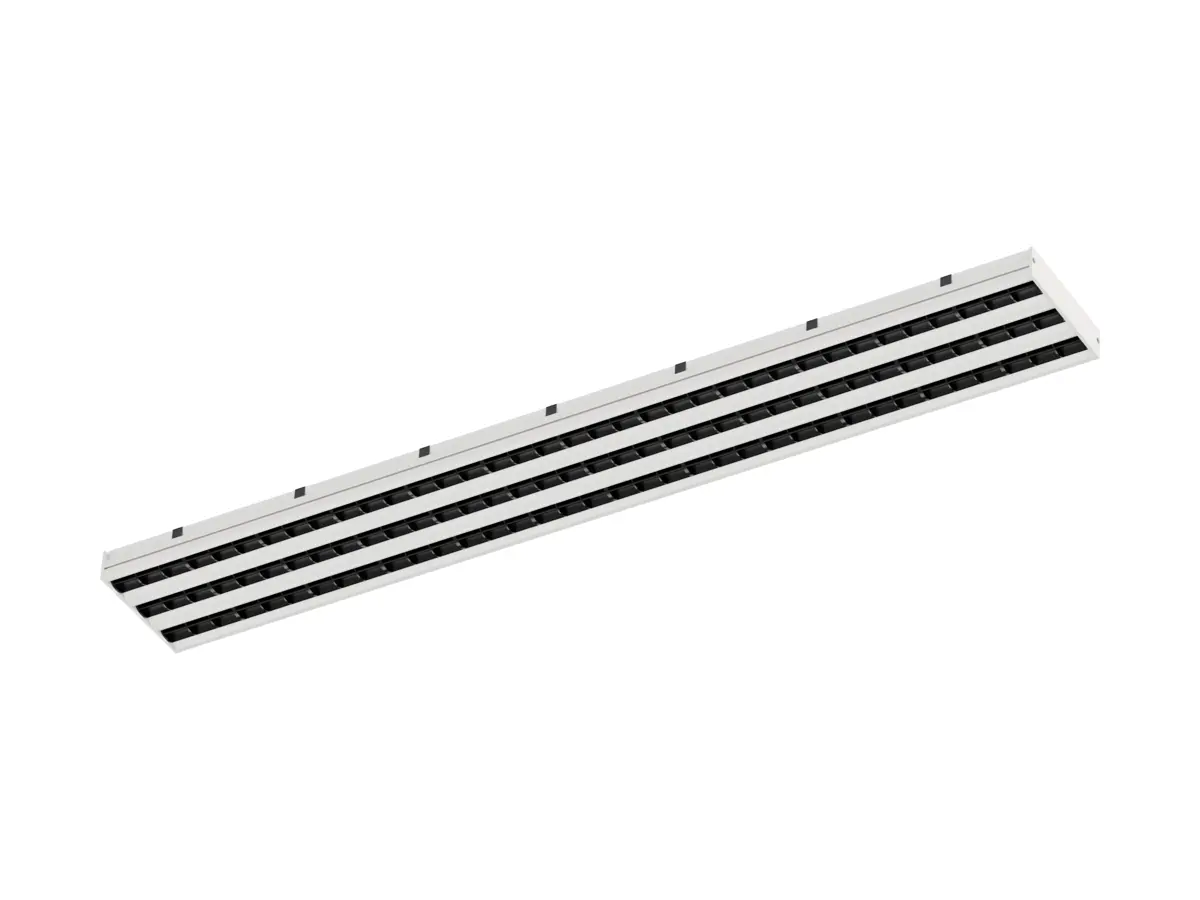

• Available with 1 to 4 slots.
• Extruded aluminium profile rails, painted in white (RAL 9003).
• Available with or without support profiles.
• Fitted with 75 mm long air deflectors, individually adjustable, made in plastic and painted black.
• Plenum box with horizontal or vertical duct connection, made of galvanised steel.
  • Perforated commissioning damper in the spigot, actuated by pull cable.
  • Available with or without internal insulation, class B-s1,d0 in accordance with EN ISO 11925-2.
  • Rubber seal.
