VITA HCC 360 E1

Ventilation unit with enthalpy counterflow heat exchanger for moisture recovery, for homes under 220 m² (14-50 l/s | 50-180 m3/h)

Enthalpy heat exchanger recovers moisture as well as heat – less dry indoor air in winter
Thermal efficiency 80% (EN 13141-7)
Installation height 300 mm
Two built-in humidity sensors
Built-in Modbus TCP/IP connection for building management systems
Time-controlled ventilation with 11 pre-programmed weekly programmes
Summer mode and fireplace mode
Electronic left/right switching of the airflow direction
Built-in pressure measuring points for airflow balancing

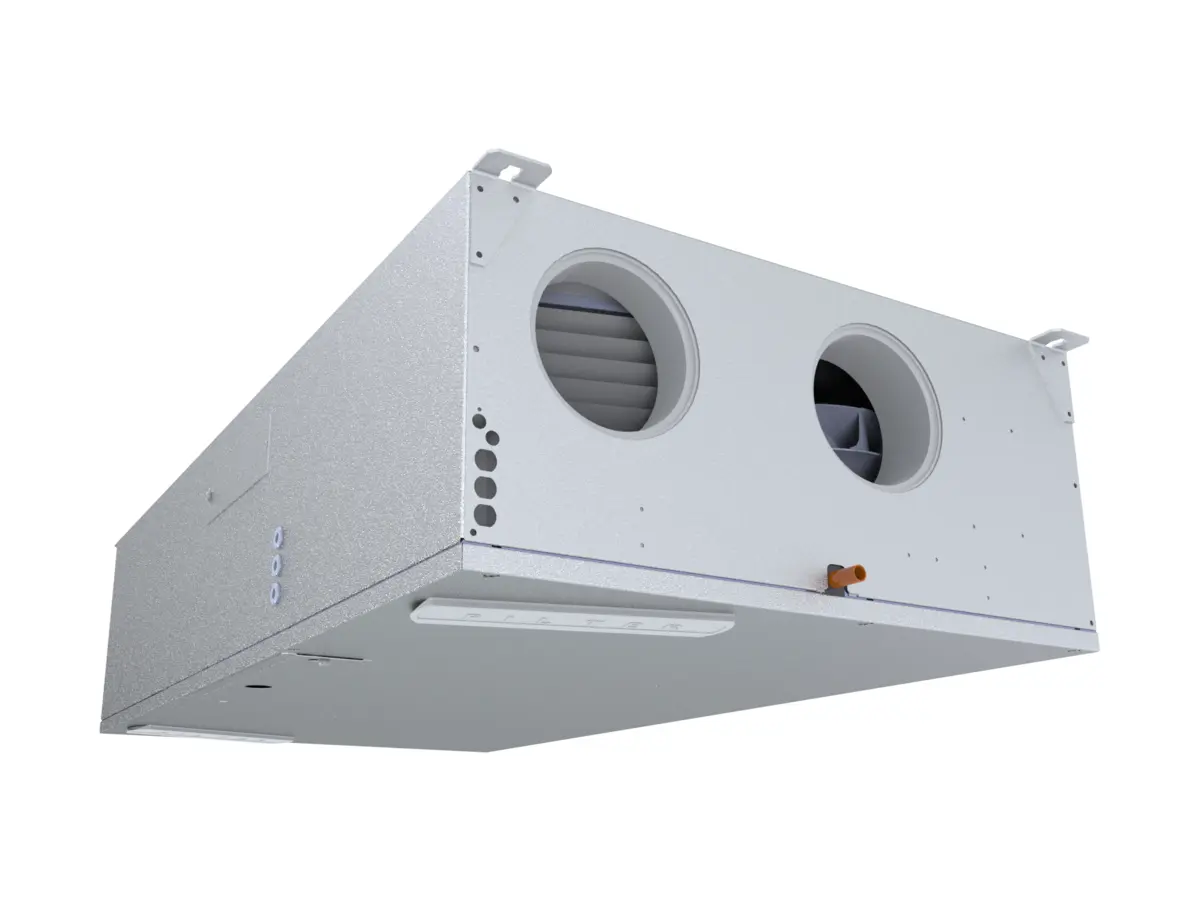

VITA HCC 360 E1 is a residential ventilation unit with heat recovery for ceiling or wall mounting. The unit has an enthalpy counterflow heat exchanger that recovers both heat and moisture. Moisture from the extract air is transferred to the supply air, so the indoor air does not become as dry in winter as with a standard heat exchanger.

The thermal efficiency is 80% (EN 13141-7, at reference airflow). The maximum airflow is 360 m³/h at 100 Pa, and the maximum declared airflow is 180 m³/h.

The installation height is 300 mm.

The unit has built-in controls and a built-in Modbus TCP/IP connection for building management systems.

Specification text

VITA HCC 360 E1 – residential ventilation unit with heat recovery.

Heat exchanger: Counterflow, enthalpy (moisture recovery)
Max. airflow at 100 Pa: 360 m³/h
Max. declared airflow: 180 m³/h
Thermal efficiency (EN 13141-7): 80%
Dimensions (W x D x H): 600 x 279 x 1122 mm
Weight: 34 kg
Duct connections: Ø125 mm
Max. power consumption: 161 W (1061 W with preheater)
Supply voltage: 230 V, 50 Hz
Protection class: IP20
BMS connection: Modbus TCP/IP (built-in)
Commissioning: PC-Tool
