Public Buildings

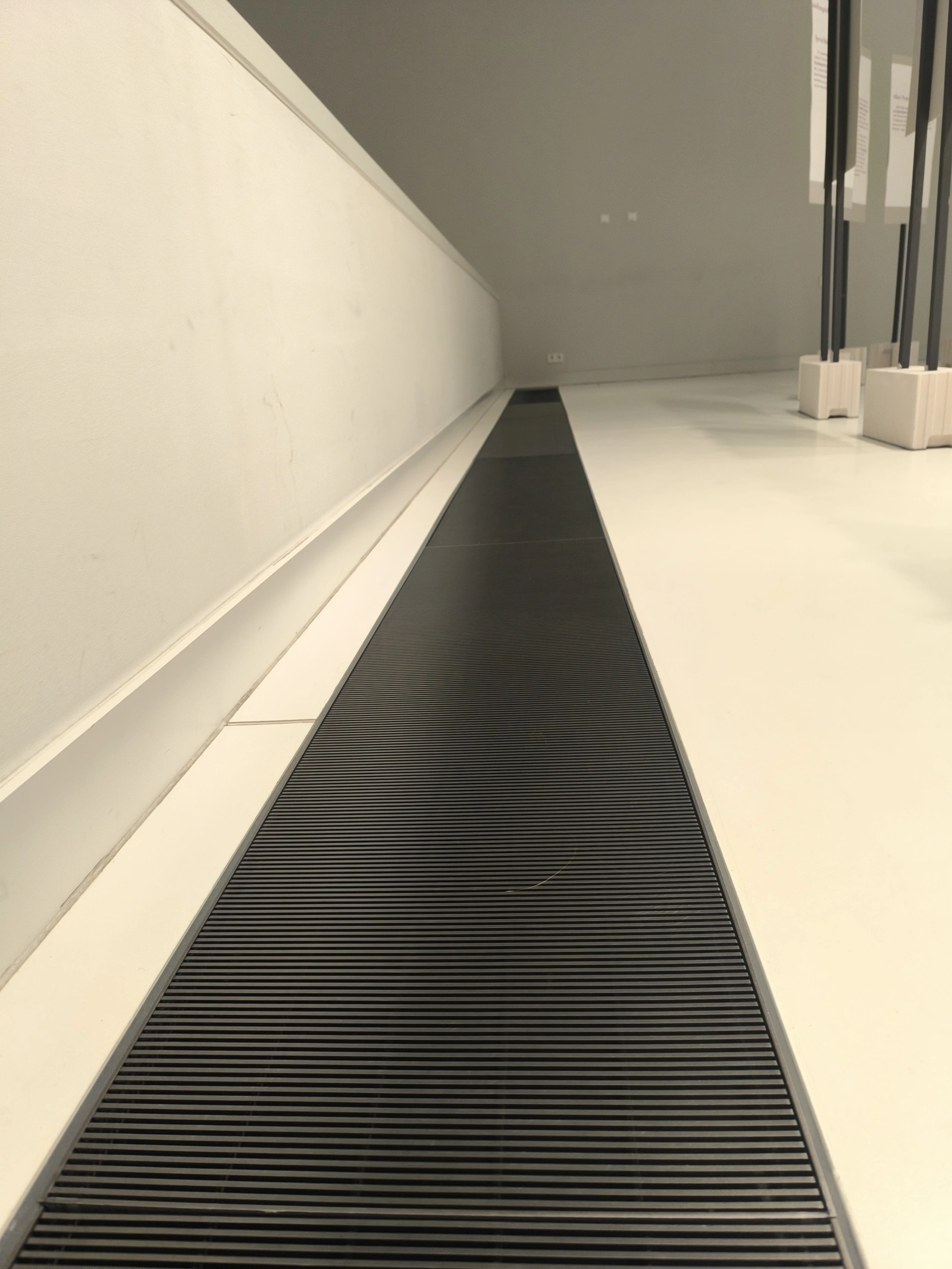

Floor convectors in a timeless design

​The floor outlets integrated in the museum premises were provided with specially treated DSM structures. Due to the applied poly-spectral oxidation process, the grids appear in a bronze, which offers the viewer an interplay with the spectral colors.

FIELD OF APPLICATION: Museums
CLIENT: Apleona Wolfferts, Berlin
PLANNING OFFICE: WINTER Beratende Ingenieure Gmbh, Berlin

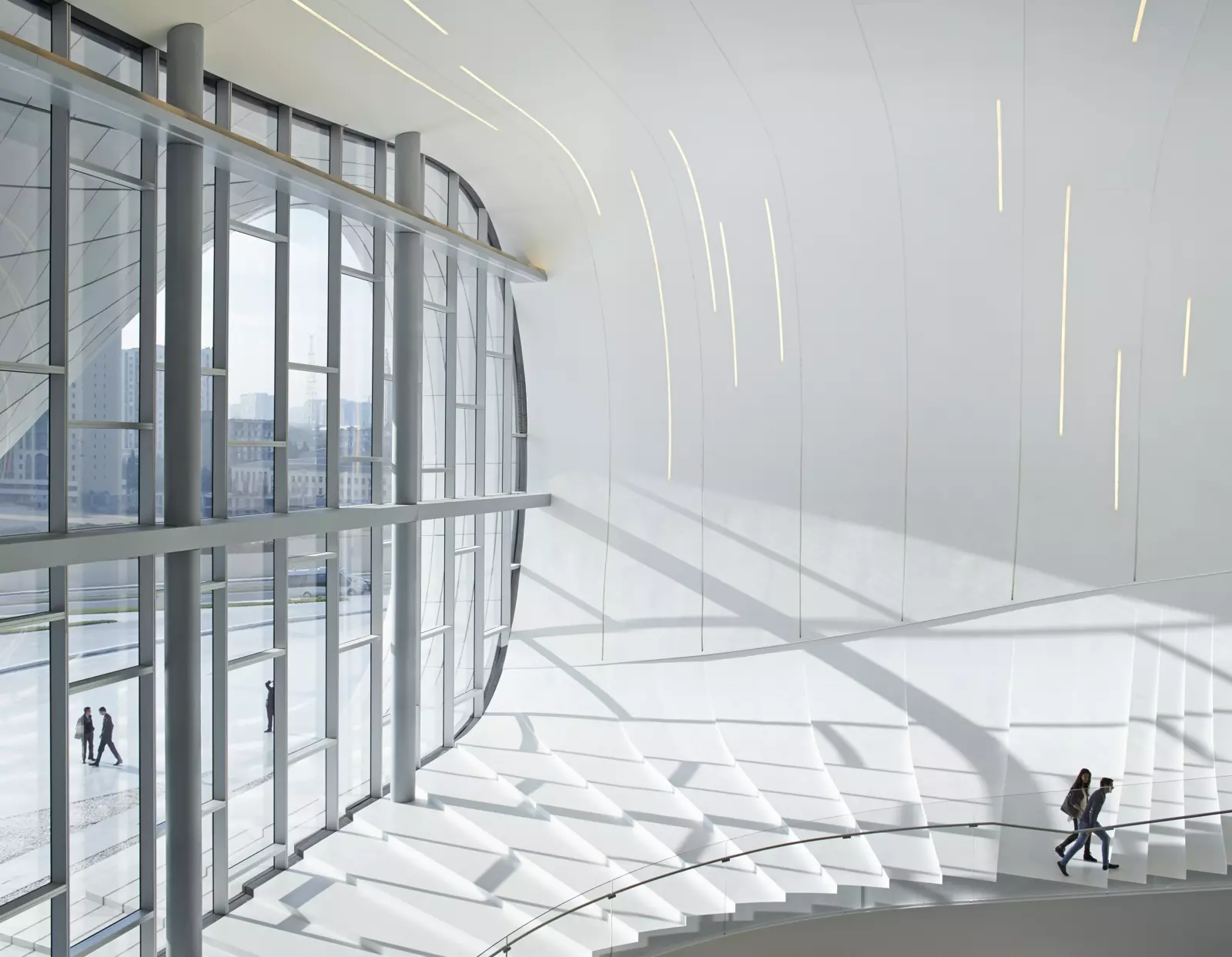

Impressive building with fluent structures

​For this impressive building with its spectacular architecture consisting of mostly fluent structures we were commissioned to manufacture more than one thousand meters of stainless steel structures. Made in many different widths, in straight, bent and twisted designs that were produced in conformance to the building’s structure parallel to the glass façade from the floor up to the curved ceiling structures, each individual grille system is unique and required great designing and manufacturing competence.​

FIELD OF APPLICATION: Event sites
CLIENT: Heyda Aliyev Cultural Center, Baku
PLANNING OFFICE: Zaha Hadid Architects, London​
EXECUTIVE COMPANY: DIA Holding, Istanbul

Exhibition, experience, museum and event venue

The BMW World in Munich is a fascinating exhibition, experience, museum and event venue located at Olympiapark 1 in Munich. SLT Schanze Lufttechnik has delivered DSM structures 28S/Q35, step diffusers with high velocity nozzles and integrated lighting, low velocity diffusers with three-dimensionally curved parapet grilles hidden in DSM structures as well as IBD-2S-AK-ISOL-2046/81-EPB for the extravagant building.

FIELD OF APPLICATION: Event sites, Museums
CLIENT: BMW AG, Munich
PLANNING OFFICE: Kühn Bauer Partner Berat. Ing. GmbH, Munich​
EXECUTIVE COMPANY: Siegle + Epple GmbH & Co. KG, Stuttgart

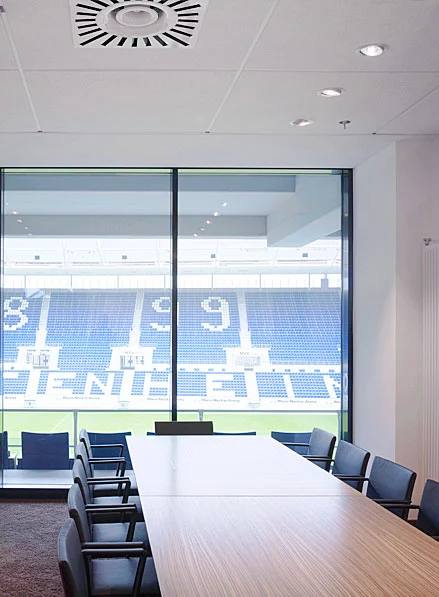

Attractive venue both for sports and business events

With the WIRSOL Rhine-Neckar-Arena TSG 1899 Hoffenheim offers not only a venue for sports highlights but also an attractive venue for business events.

FIELD OF APPLICATION: Event sites

Photo: © Christian Richters

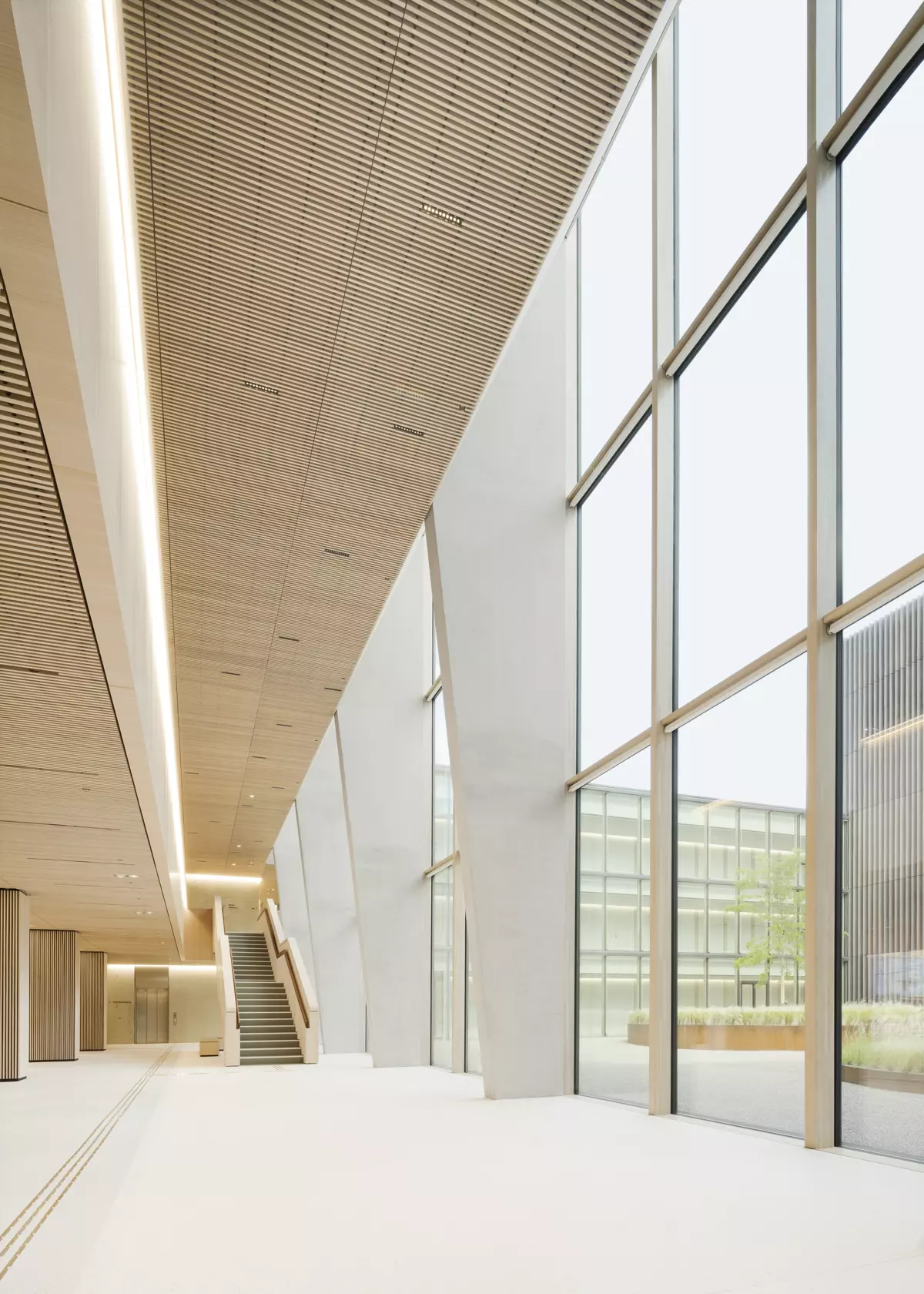

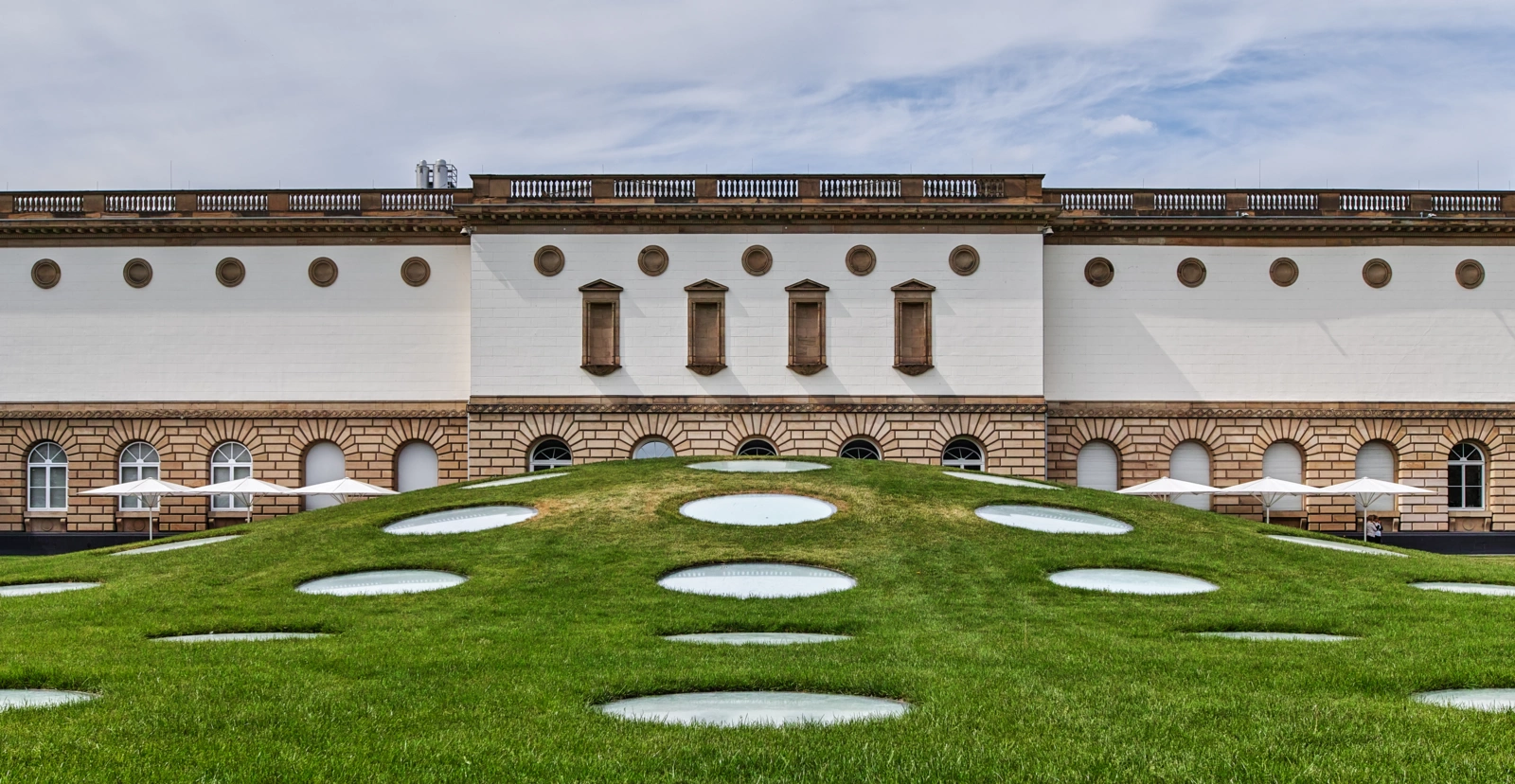

A custom solution with a minimal mounting height

​In order to meet the requirements of the expansion of the Städel Museum we developed a custom profile for installation in floors/walls with a minimal mounting height of 32 mm. Overall about 1000 meters of active as well as inactive systems were installed.​

The newly developed CPD slot diffuser functions next to its excellent ventilation ability as an architectural design element that can give massive walls a touch of elegance with its backwards flowing finish as well as the recessed anti-dirt edges. No possibly irritating nozzles or slot outlines are visible – except for the shapely, aerodynamic Coandă outline.

FIELD OF APPLICATION: Museums
PLANNING OFFICE: Schneider+Schumacher, Frankfurt am Main​
EXECUTIVE COMPANY: YIT Germany GmbH, Deggendorf

Photo: © Norbert Miguletz

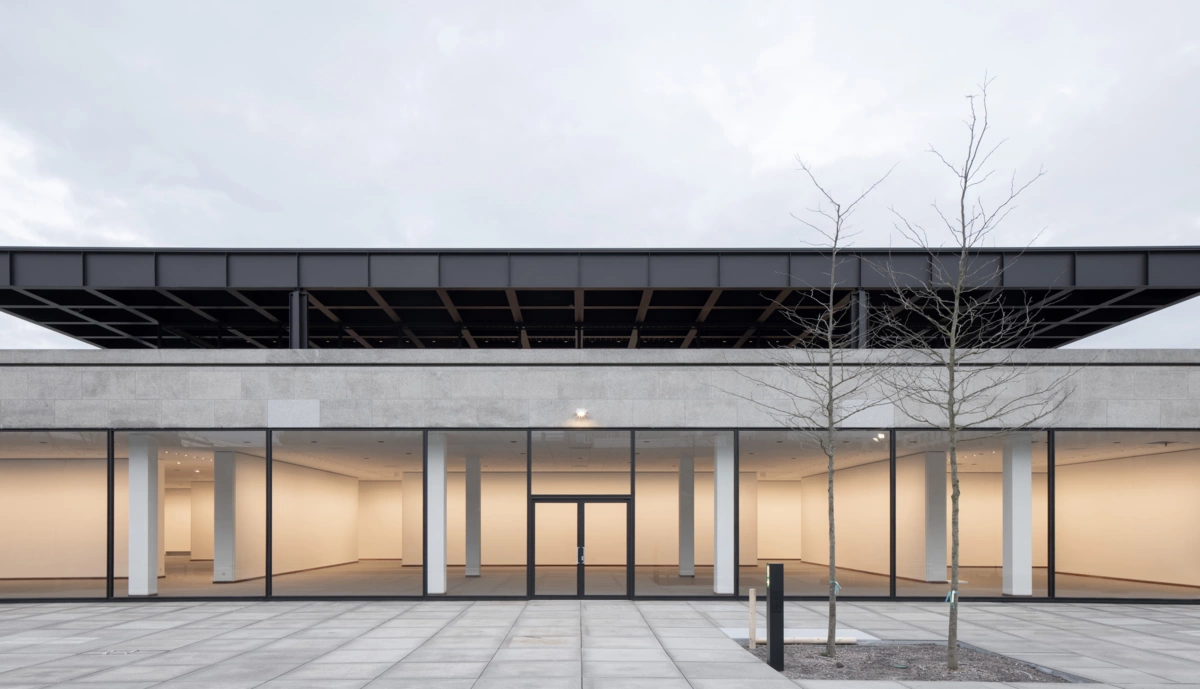

A special facade solution

The New National Gallery Berlin, built in 1965-68, is one of the landmarks of modern architecture and was included in the list of monuments of the State of Berlin. For the recent refurbishment of the New National Gallery (NNG) from 2015 - 2021, SLT was allowed to contribute by supplying new or modified revision of existing and listed ventilation components. Primarily, however, we were able to use our know-how and with the help of our in-house laboratory to develop a facade covering suitable for a museum, which does justice to the climatic requirements of the listed building by the architect Ludwig Mies van der Rohe. It was necessary to use an effective segment jet nozzle system to counteract the drop in cold air on the 8 m high glass façade typical of the NNG and to reduce possible condensation on the single-pane glazing on cold winter days. In this way, exhibited art is protected from temperature and humidity fluctuations, which can otherwise cause serious damage.

FIELD OF APPLICATION: Museums
CLIENT: Bundesamt für Bauwesen und Raumordnung (BBR)
PLANNING OFFICE: Domann Beratende Ingenieure GmbH

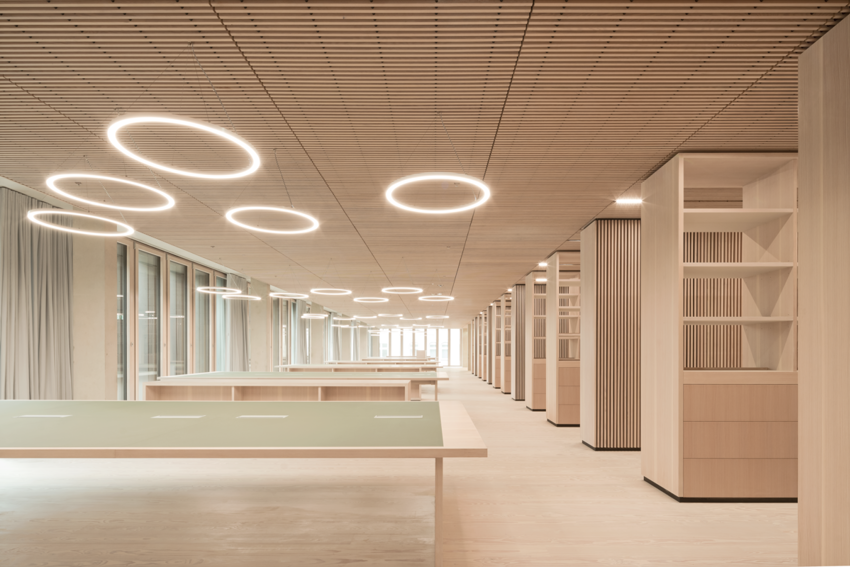

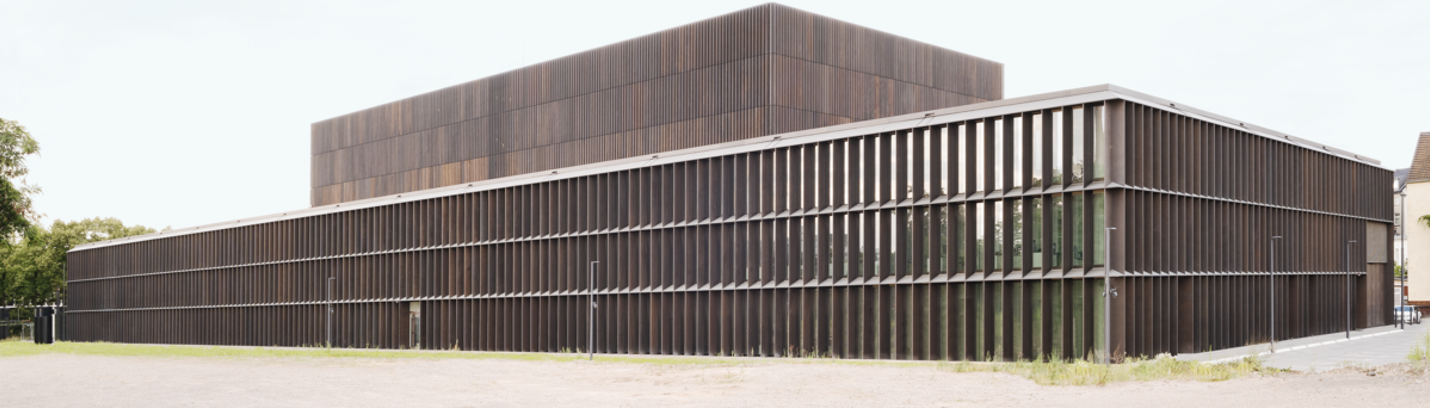

Exclusively special solutions

​0 % standard diffusers were used for the Historical Archive of the City of Cologne. All components are variants or special designs from our extensive product portfolio.

FIELD OF APPLICATION: Museums
CLIENT: Otto Building Technologies GmbH, Bad Berleburg
PLANNING OFFICE: agn Niederberghaus & Partner GmbH, Ibbenbüren

Photo: © Brigida González

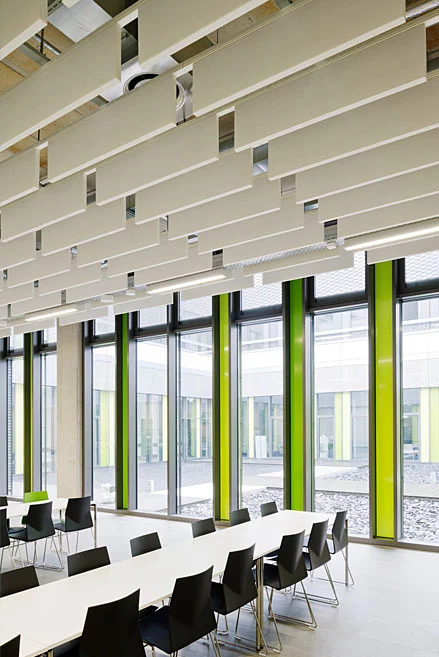

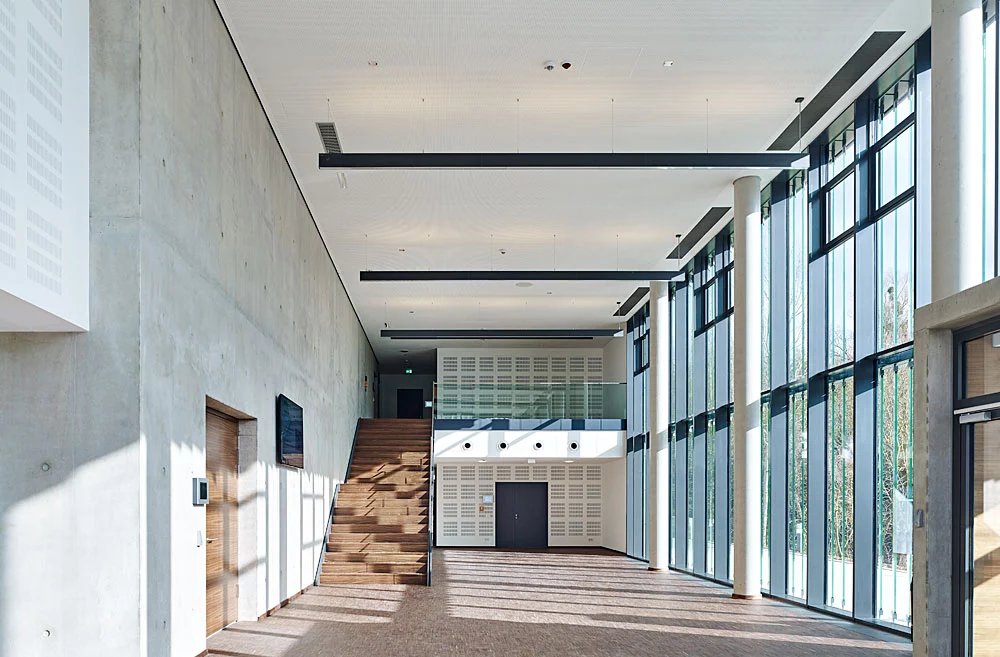

Special systems mixed with standard solutions

Highly inductive special VDP systems with high primary induction as well as many other diffuser systems in standard and custom build were delivered for the ENUS replacement construction of the University of Bielefeld.

FIELD OF APPLICATION: Education​
CLIENT: Zimmer & Hälbig GmbH, Bielefeld
PLANNING OFFICE: AGN Niederberghaus & Partner GmbH, Ibbenbüren
EXECUTIVE COMPANY: Zimmer & Hälbig GmbH, Bielefeld

Photo: © 2016 Olaf Mahlstedt

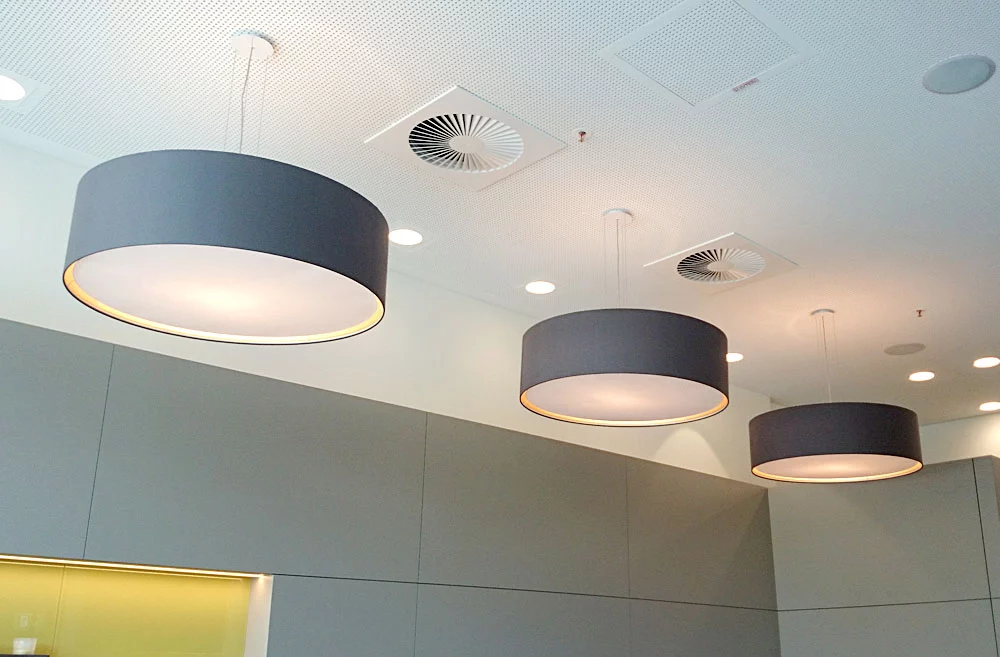

Individually designed ceiling induction diffusers

SLT Schanze Lufttechnik has delivered individually designed ceiling induction diffusers of the type DIA-HF and DIA4 as well as additional diffusers for the new multi-purpose building for the German Primate Center (DPZ). The main auditorium for up to 250 people and office/ laboratory rooms were equipped with our products.

FIELD OF APPLICATION: Education
CLIENT: Suchfort-Anlagenbau GmbH & Co., Göttingen
PLANNING OFFICE: AGN Niederberghaus & Partner GmbH, Halle/Saale

Photo: © Michael Moser

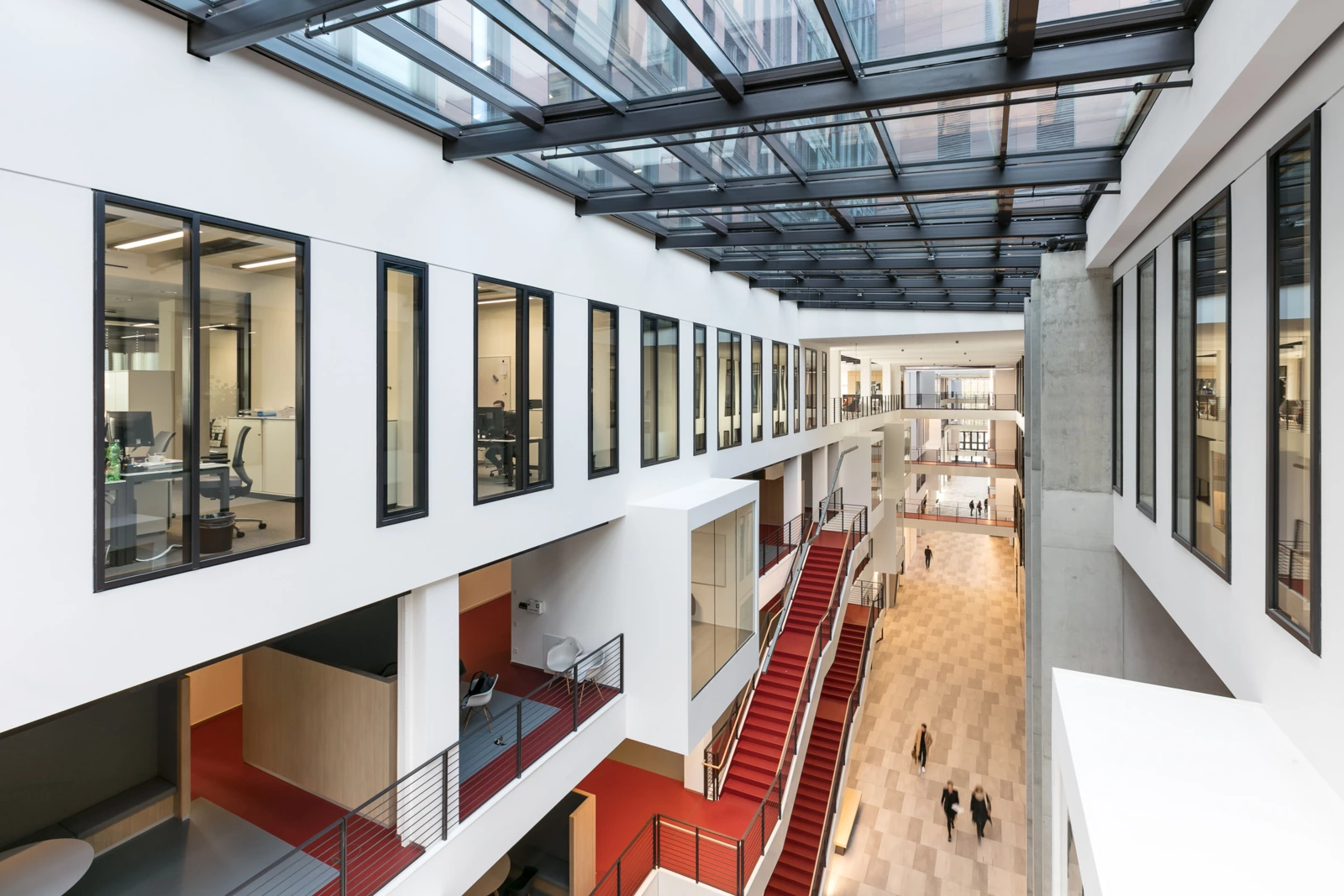

Large quantities of individually designed slot diffusers

For the prestigious Frankfurt School of Finance & Management in Frankfurt, we delivered individually designed slot diffuser of type: VZ-41 in large quantities, furthermore swirl diffuser, type: VDP, with high primary air induction inside the commissioning box and adjustable ceiling diffuser of series TSK.

FIELD OF APPLICATION: Education
PLANNING OFFICE: MOW Generalplanung GmbH
EXECUTIVE COMPANY: Caverion Deutschland GmbH

Photo: © N. Kazakov
