Neue Mainzer | Frankfurt
A unique design with integrated LED lighting

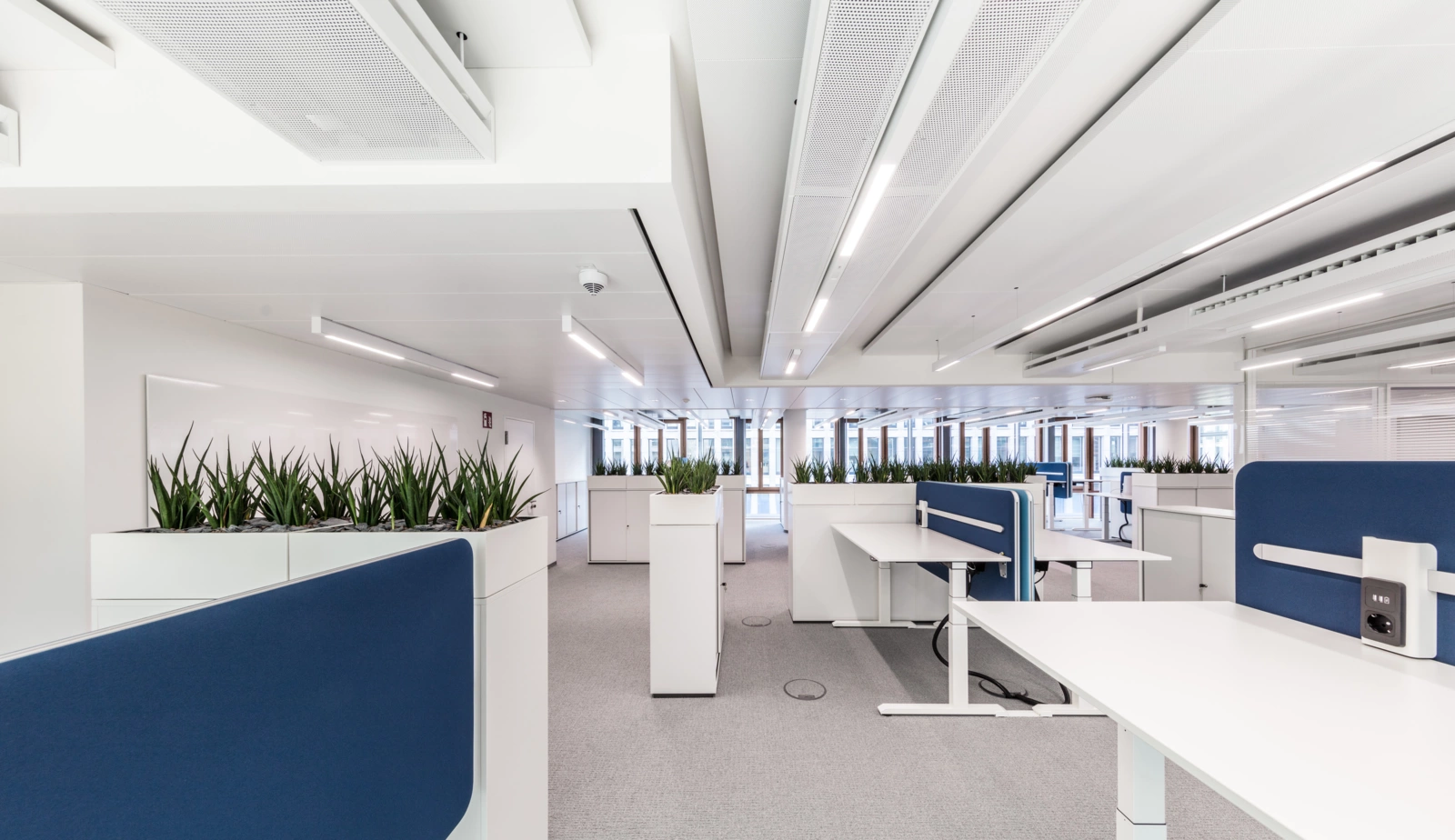

SLT has developed a unique design for ceiling induction units, adapting the DIAF and DIA-HF in large quantities for the refurbishment of an office building on the Neue Mainzer Strasse in Frankfurt, air conditioning several floors, serving a total of approx. 8,000 m² of office space. The newly developed units are made up of a series of sections with a total length of up to 3900 mm. Running alongside the induction function of the product are integrated LED lighting fixtures and sound-absorbing sail surfaces.​​
FIELD OF APPLICATION: Office Building
CLIENT: Talanx Immobilien Management GmbH
PLANNING OFFICE: Bieker AG​
EXECUTIVE COMPANY: SLT Schanze Lufttechnik GmbH & Co. KG
Photo: © Achim Reissner
Products used (standard)
DIA-HF
Ceiling diffuser designed to ensure comfortable ventilation of rooms with high cooling loads.
DIAF
Exposed ceiling diffuser that is equally suited for heating and cooling.
Microsoft Neubau MK8 | München
Airborne room units for podium installation

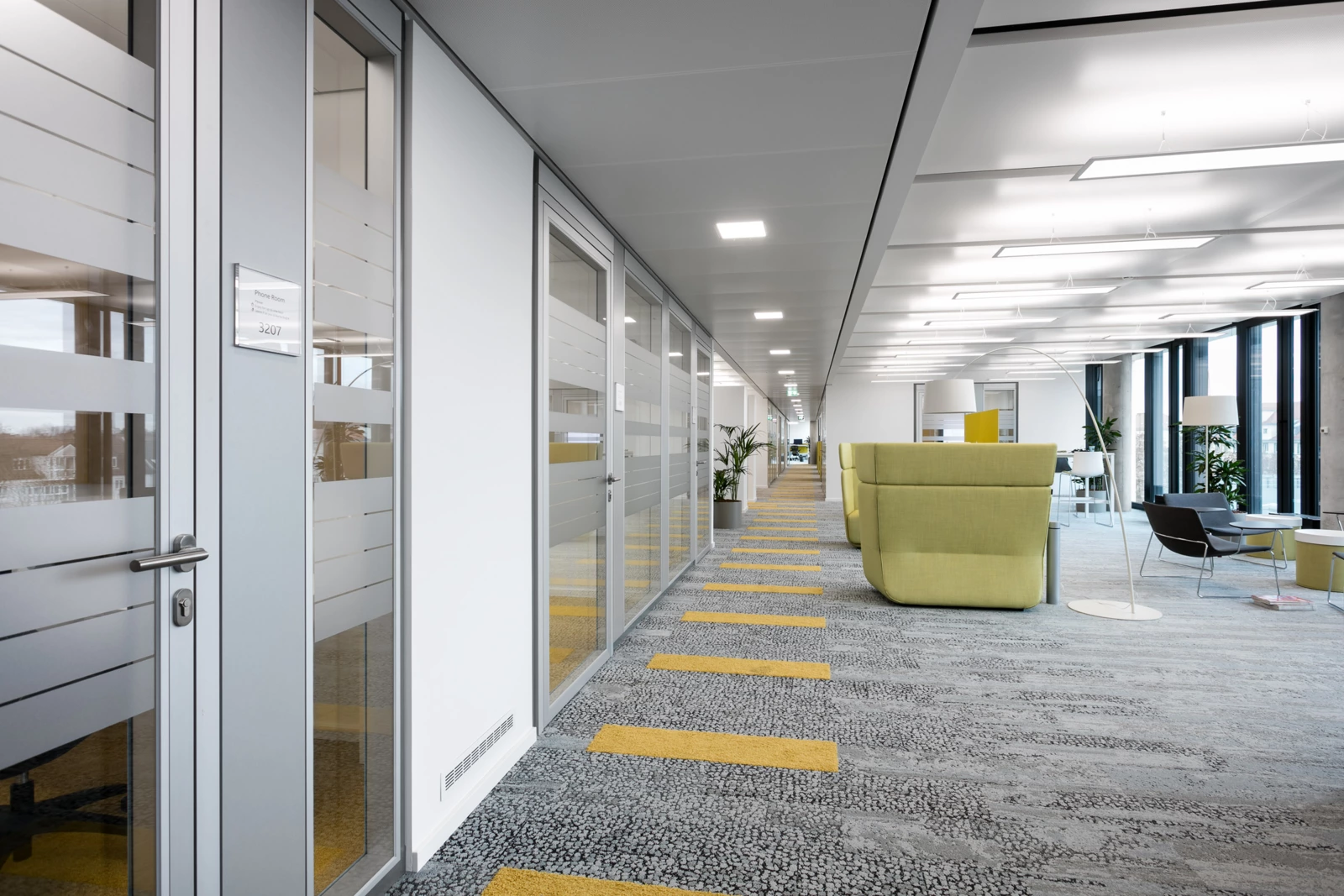

In addition to extensive contingents of our VZ-15, VZ-41 and RBF slot diffuser, in addtion to our VZ-AR tube diffuser units, we were able to design and supply room air conditioning systems for podium installation, which were covered with manually manufactured DSM stainless steel structures.
FIELD OF APPLICATION: Office Building
PLANNING OFFICE: Teuber + viel ingenieurgesellschaft mbH
EXECUTIVE COMPANY: BACON Gebäudetechnik GmbH & Co K
Photo: © N. Kazakov
Products used (standard & special?)
VZ-15
A linear diffuser especially well suited for nearly invisible incorporation into ceiling panels and shadow joints as a single diffuser or as a continuous run.
VZ-41
Linear slot diffuser well suited for wall and ceiling installation, available in single and multi-slot configurations as well as continuous assembly.
RBF
Slot diffuser intended for wall and ceiling installation for modular or continous assembly.
VZ-AR
Duct diffuser in a circular or oval design with individually adjustable air deflectors.
DSM
Design elements made of drawn stainless steel in various designs and arrangements of the structural edges.
VS-5
Jet diffuser suitable for providing cold and warm air at a high throw distance, with low sound power levels.
Südkreuz SXB | Berlin
Specially manufactured displacement units

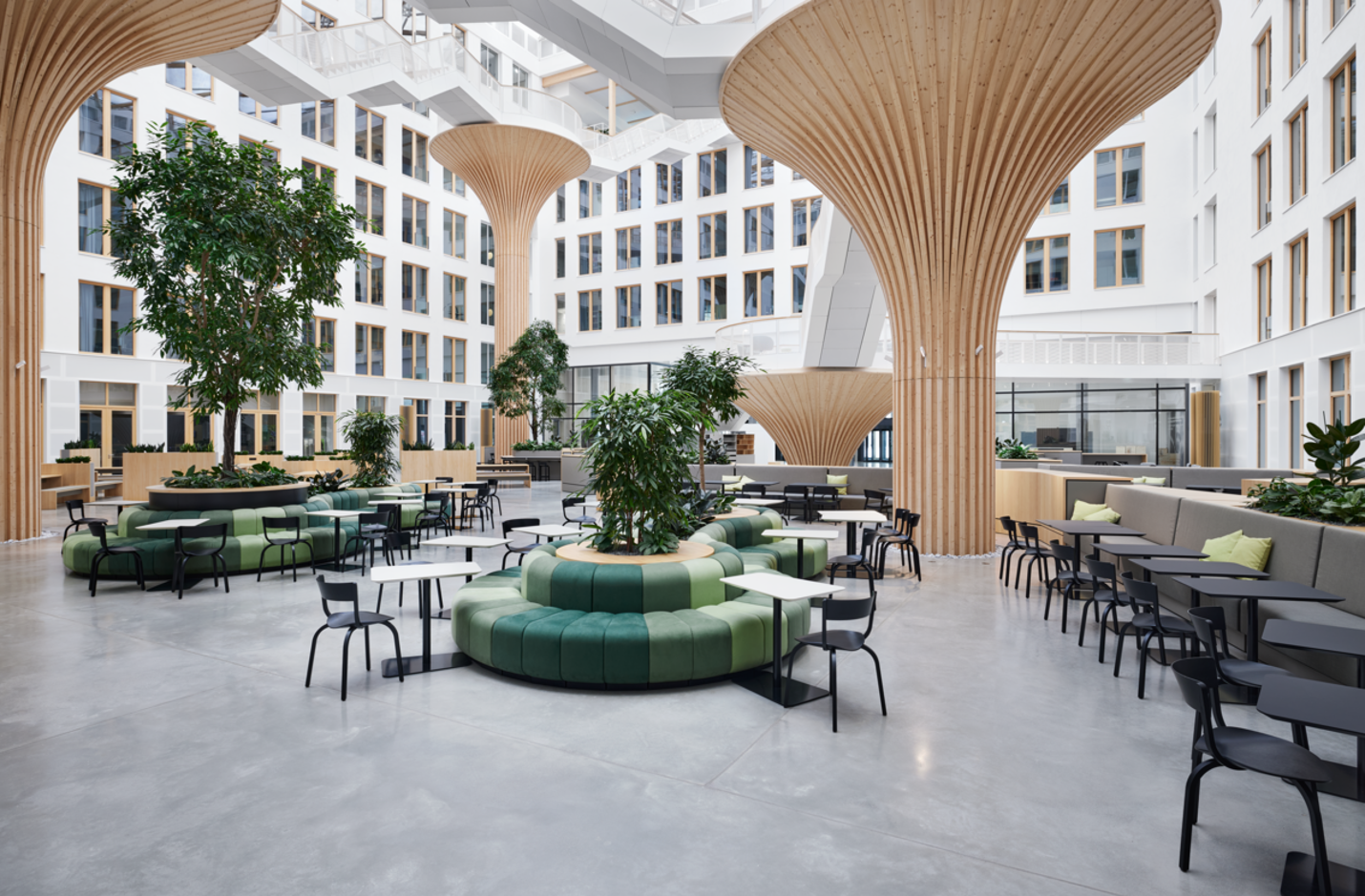

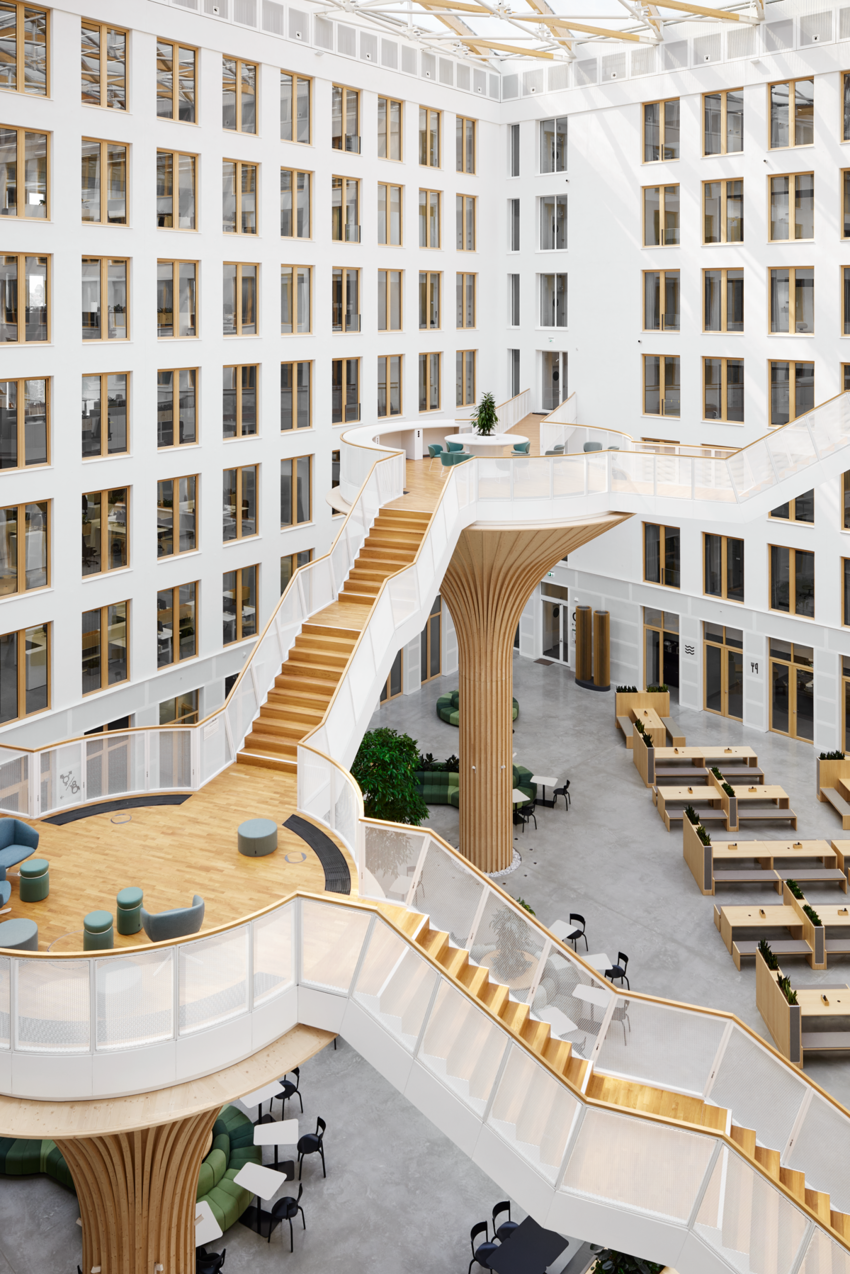

The atrium hall was equipped with specially manufactured displacement ventilation columns. This SLT special solution consisted of displacement air units in the lower area as well as jet nozzles in the upper area of the column. The ventilation elements were clad with a wooden structure and thus integrated into the theme of sustainability. This product ensures the supply of fresh air in the near and far areas of the diffuser and thus ensures a complete supply of fresh air to the occupied zone.
FIELD OF APPLICATION: Office Building
CLIENT: Rud. Otto Meyer Technik GmbH & Co. KG (ROM), Dresden
PLANNING OFFICE: IBB, Ingenieursbüro Balint
Products used (special?)
DIA-HF
Low velocity diffuser with a cuboid design whose rectangular perforated front plate is mounted to a connecting unit with a round or square spigot.
IBD
A special diffuser designed for high vertical or horizontal throw distances, equipped with nozzles that achieve high induction and high throw distances at low sound levels.
