ECO M-C

Radiant Metal Ceiling

Thermal comfort according to EN ISO 7730
High heating and cooling capacity
Active area ratio: 65 %
Advanced acoustic properties (class B)
Easy to install
Integration of various components

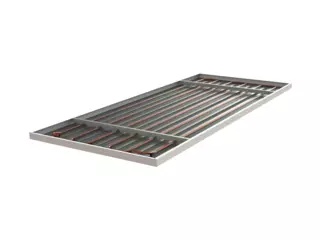

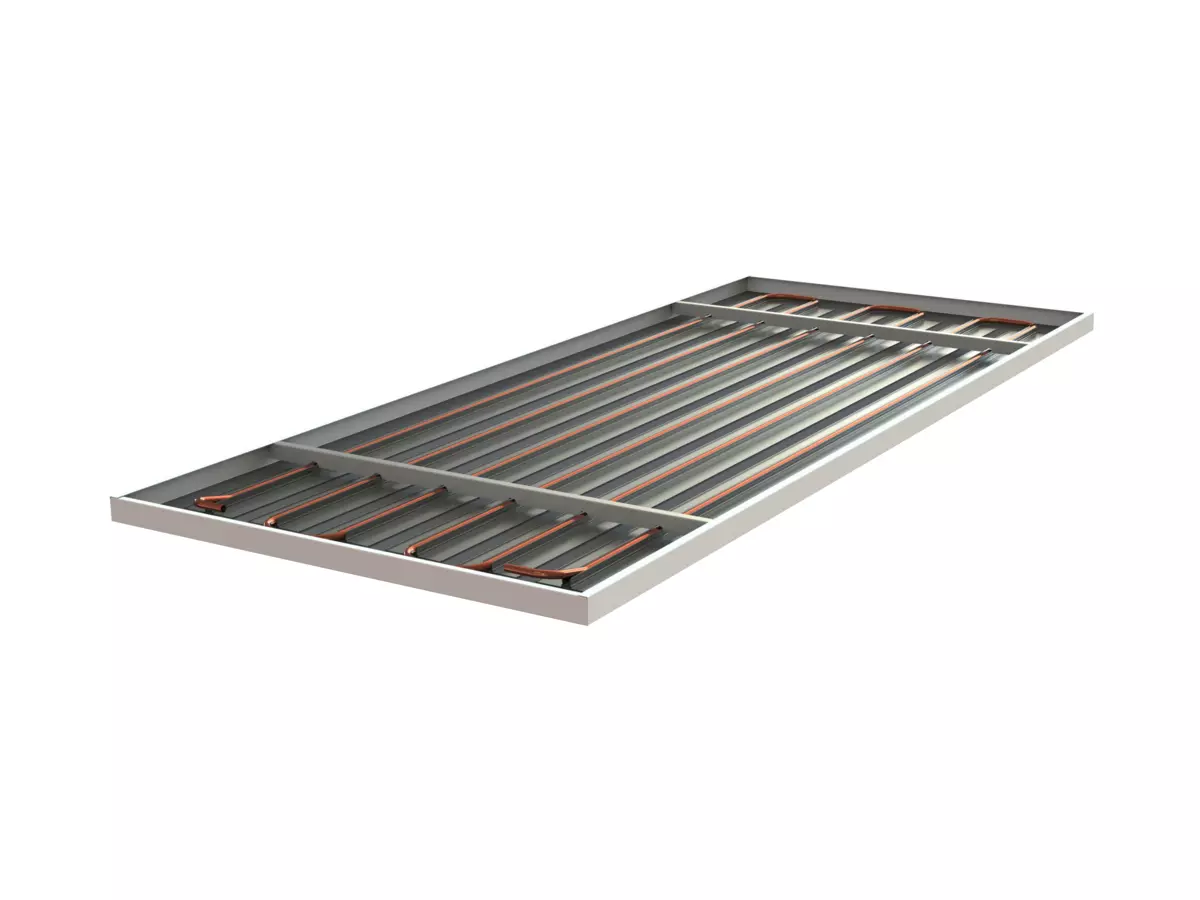

ECO M-C is a water-based radiant ceiling system in which the heating/cooling coil is securely attached to the ceiling panels by an innovative magnetic connection. The system works predominantly according to the radiation principle, which offers high thermal comfort, optimum energy efficiency and a pleasant, draught-free indoor climate.

In addition, room acoustics are good due to a specially developed acoustic fl eece that is glued into the perforated ceiling panelling. With indirect lighting via the refl ective ceiling surface, glare-free illumination of the room can be achieved.

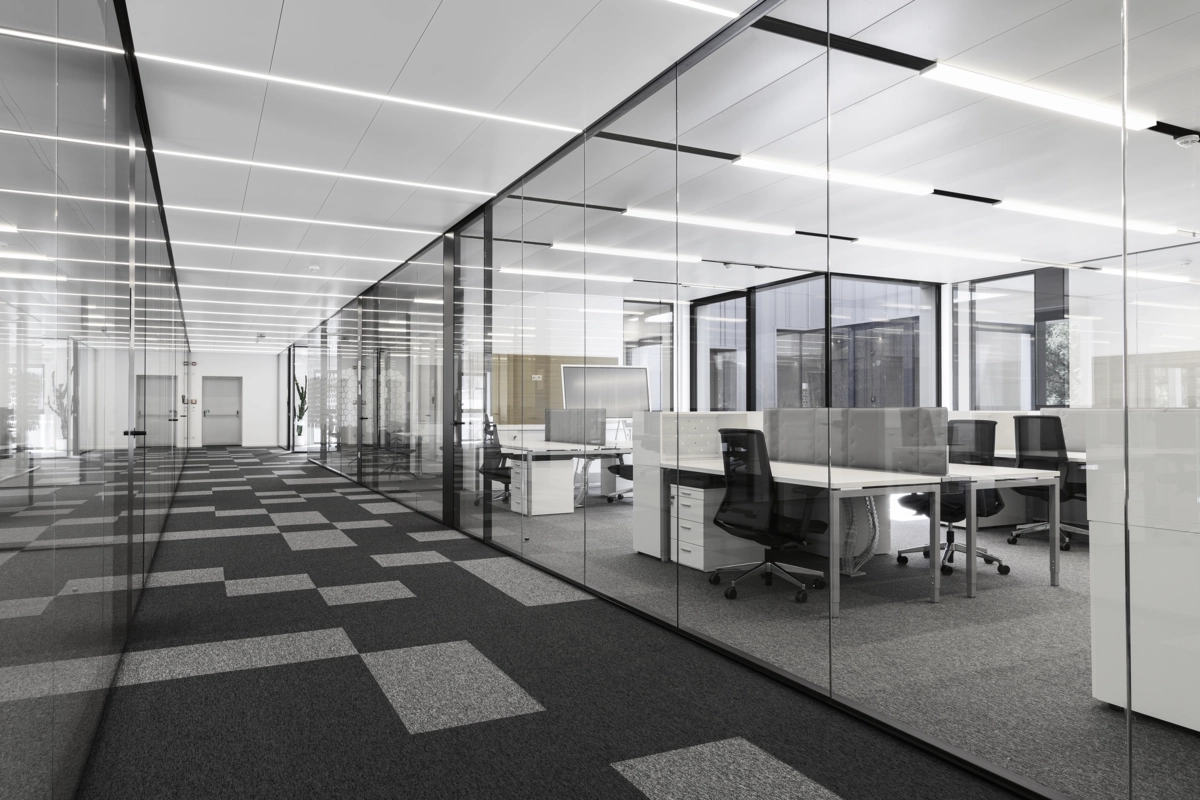

This radiant ceiling system is characterised by a wide range of application and design options. It is primarily used in offi ce and administration buildings, shops, training/conference facilities and hospital treatment rooms.

Dimensions:

Installation height: 200 mm

Standard dimensions:
- Panel length: 500 – 2000 mm
- Panel width: 300 – 800 mm
- Panel height: 30 – 40 mm
Custom dimensions on request

Capacity water:

Cooling: up to 72 W/m² (ΔT: 8 K)
Active area ratio: 65 %

Heating: up to 71 W/m² (ΔT: 15 K)

Acoustics:

Sound absorption αw: up to 0,85
Sound absorption class B, EN ISO 11654
