GTKV

GTKV is a square extract air grille made of 2 mm sheet steel for installation in walls or ceilings.

The robust design makes it suitable for installation in demanding environments with high safety requirements. The design of the grille protects against tampering and restricts access where required for safety purposes.

The extract air grille is available in two designs:

• GTKV 6, with 6 mm square perforations.

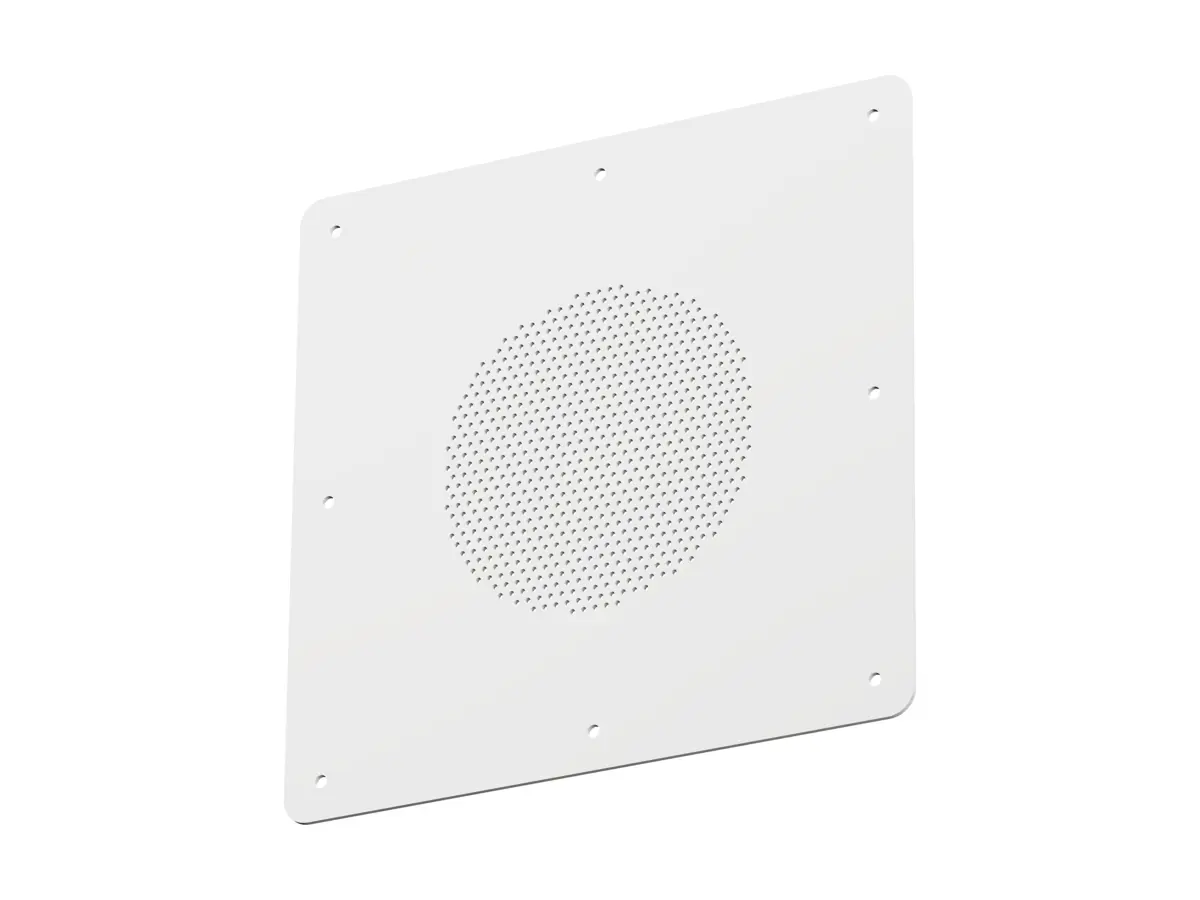

• GTKV 2, with 2 mm circular perforations.

Made of recycled galvanised sheet steel.

• Standard colour:
  • RAL 9003, signal white, gloss 40
• Alternative standard colours:
  • RAL 9006, white aluminium, gloss 80
  • RAL 9007, grey aluminium, gloss 80
  • RAL 9010, pure white, gloss 40
  • RAL 9005, jet black, gloss 35
  • RAL 7037, dusty grey, gloss 30

Other colours are available on request.

Calculation and simulation of the product can easily be done via the product selection programmes Single Product Calculator and Room Unit Design.

GTKV is designed for simple and secure installation via screw fixing to a wall or ceiling.

The airflow is adjusted via a damper in the duct system.

The extract air grille can be vacuumed using a brush attachment and, if required, cleaned with lukewarm water and detergent

Swegon’s square extract air grille GTKV for wall or ceiling placement with the following functions:

• Robust design for environments with safety requirements.
• Made of 2 mm sheet steel.
• Design with circular (2 mm) or square (6 mm) perforations.
• Made of at least 75% recycled steel with a 66% lower CO2 footprint compared with traditional steel.
• Powder-coated white, RAL 9003.

Size: GTKV 6a bbb-ccc-ddd xx pcs
