METAL LINE

Radiant Baffle

Thermal comfort according to EN ISO 7730, SIA 382/1
Building material class A2-s1, d0 according to EN 13501-1
Very high heating and cooling capacity
Acoustically effective (class C)
Easy to install
Suitable for retroactive installation
Available in various colours and surfaces, including wood-look finishes
Components can be integrated

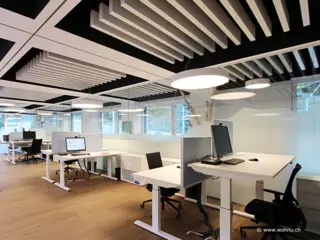

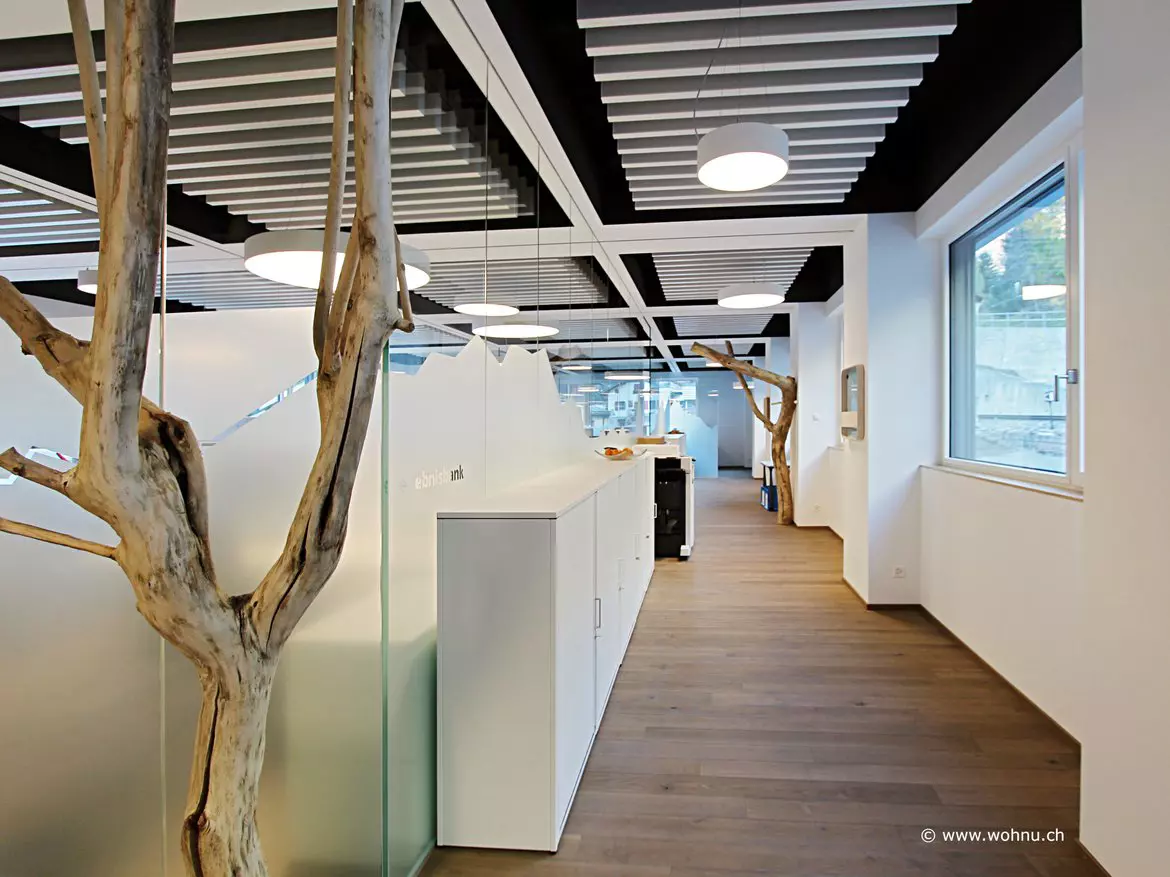

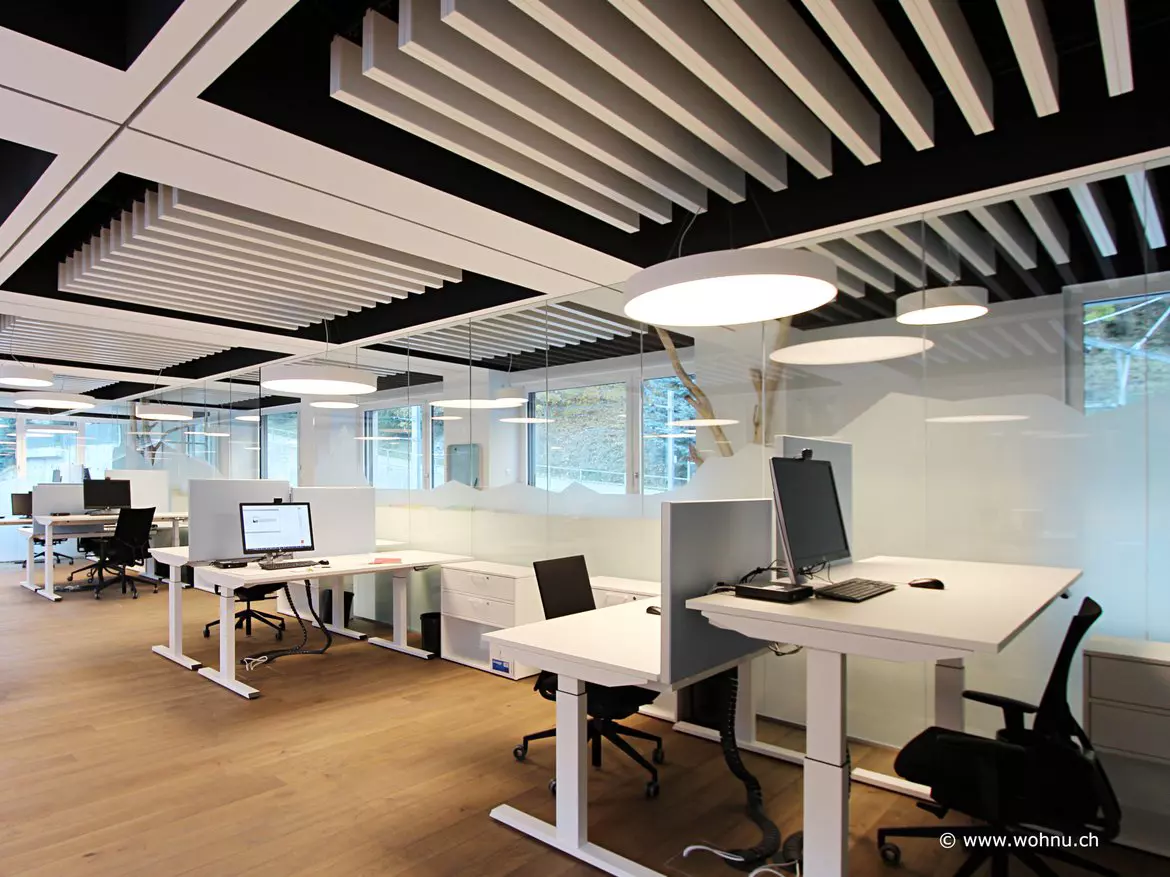

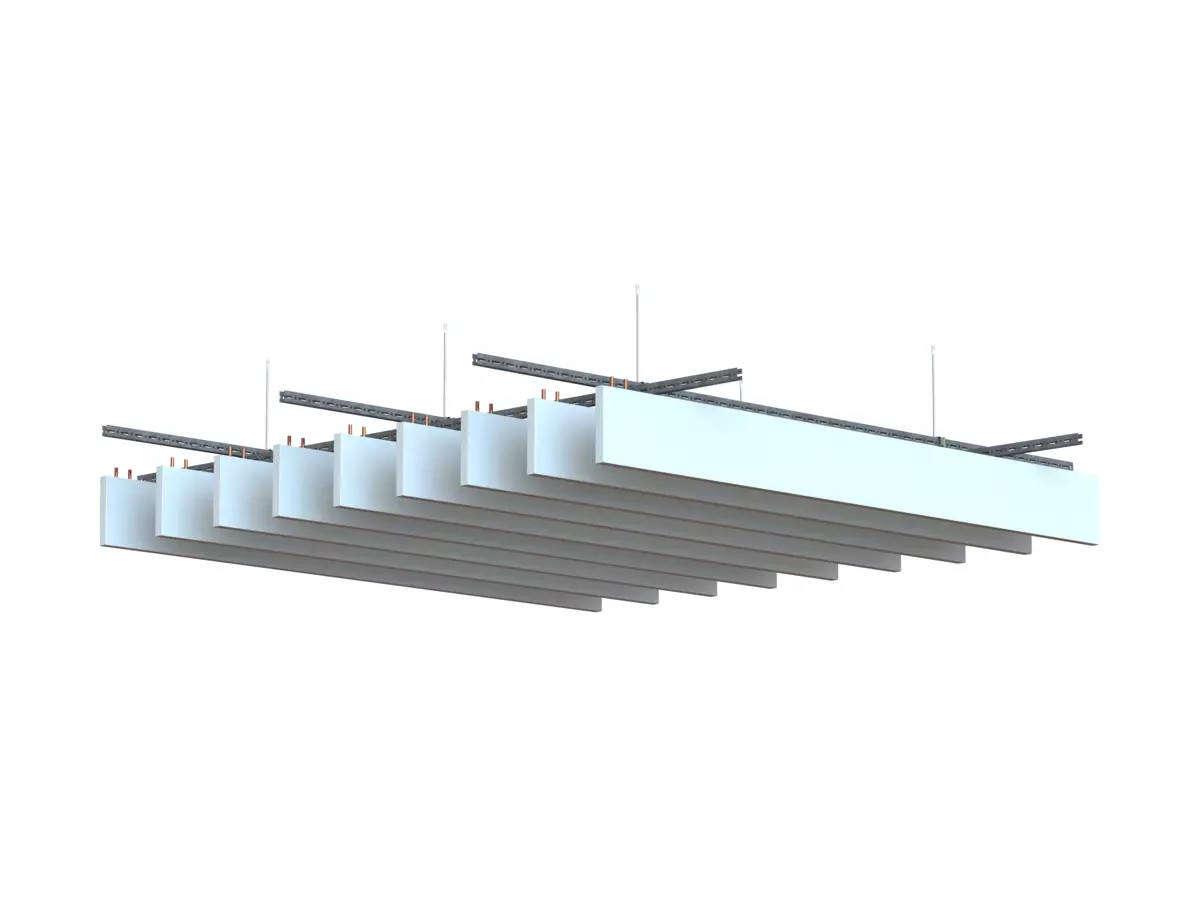

METAL LINE radiant heating and cooling baffles combine thermal activation with acoustic effectiveness. The vertical arrangement of the metal baffles provides a comparatively large thermally and acoustically effective surface area.

The system is also suitable for retrofitting existing buildings. Thanks to simple installation, the radiant heating and cooling baffles can be integrated into different room situations and combined with various design requirements.

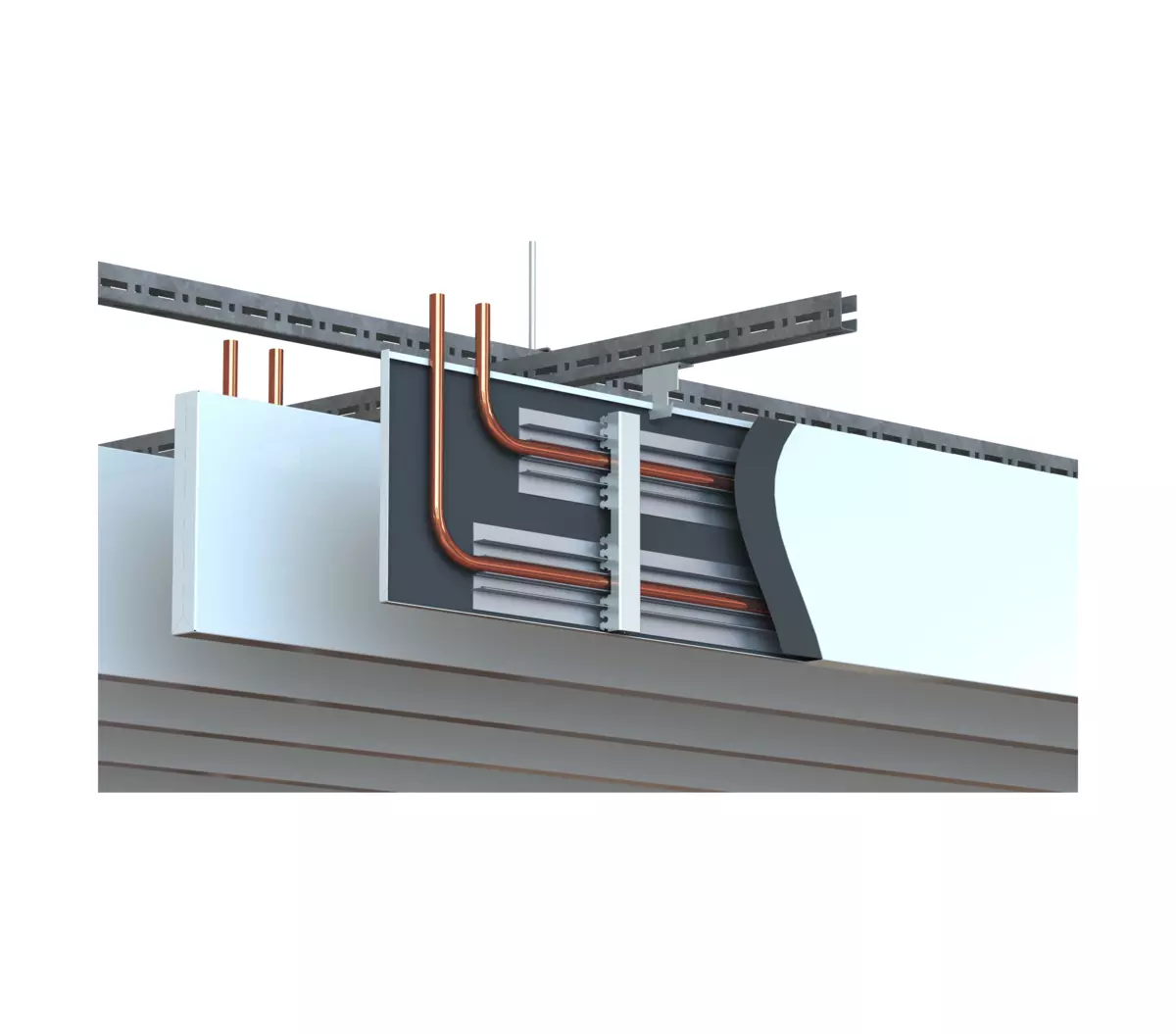

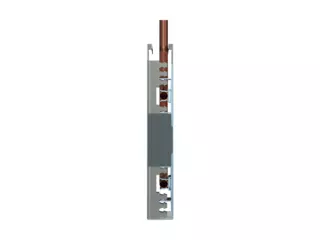

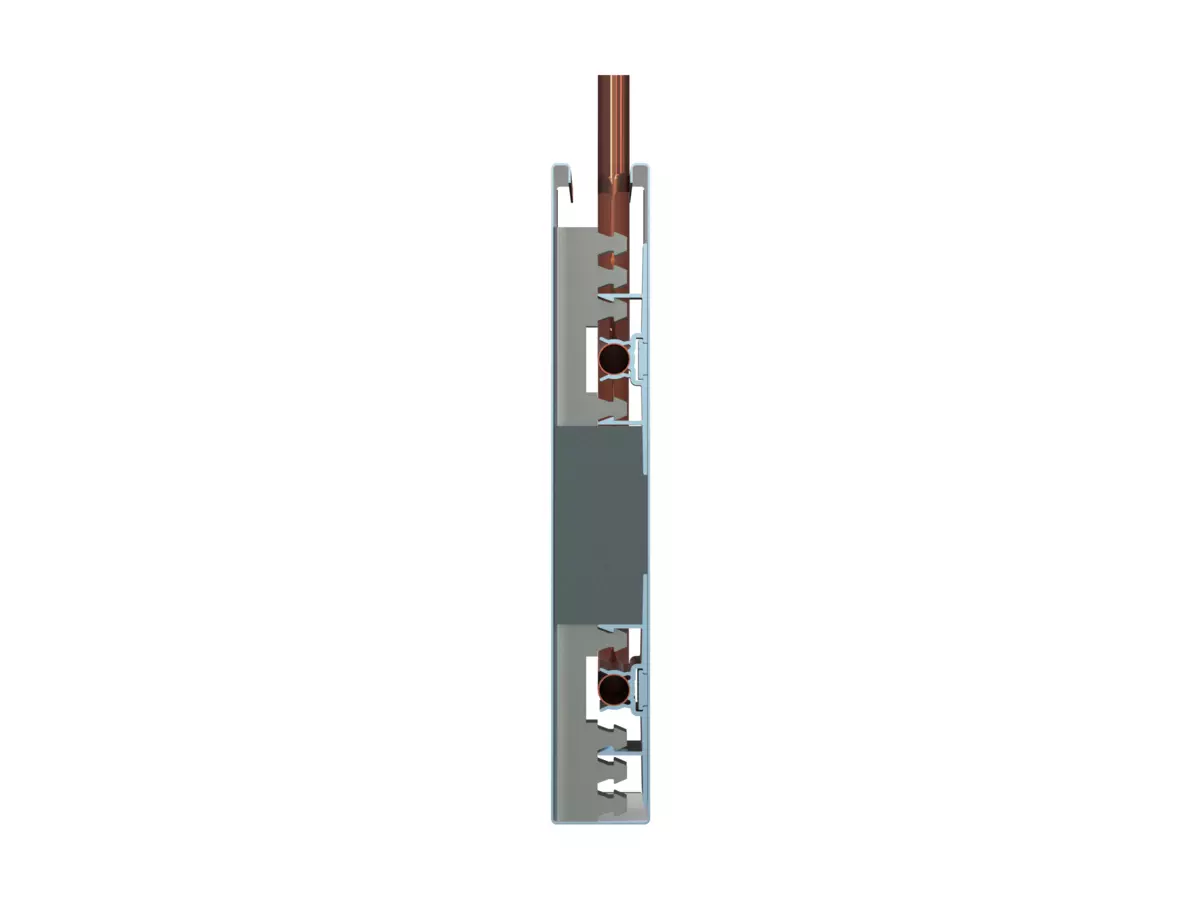

An acoustic fleece is integrated into the baffle for sound absorption. For higher acoustic requirements, an additional insulation insert can be provided.

Design

Functionality

Dimensions:

Installation height: Construction height min. 260 mm

Standard dimensions:
- Lenght: 500 – 2500 mm
- Width: 30 / 40 mm
- Height: 200 mm
Special dimensions on request

Capacity water:

Cooling: up to 22 W/lm (ΔT: 8 K)
Active area ratio: 90 %

Heating: up to 25 W/lm (ΔT: 15 K)

Acoustics:

Sound absorption αw: bis 0,75
Sound absorption class C (EN ISO 11654)
