BIA-ID

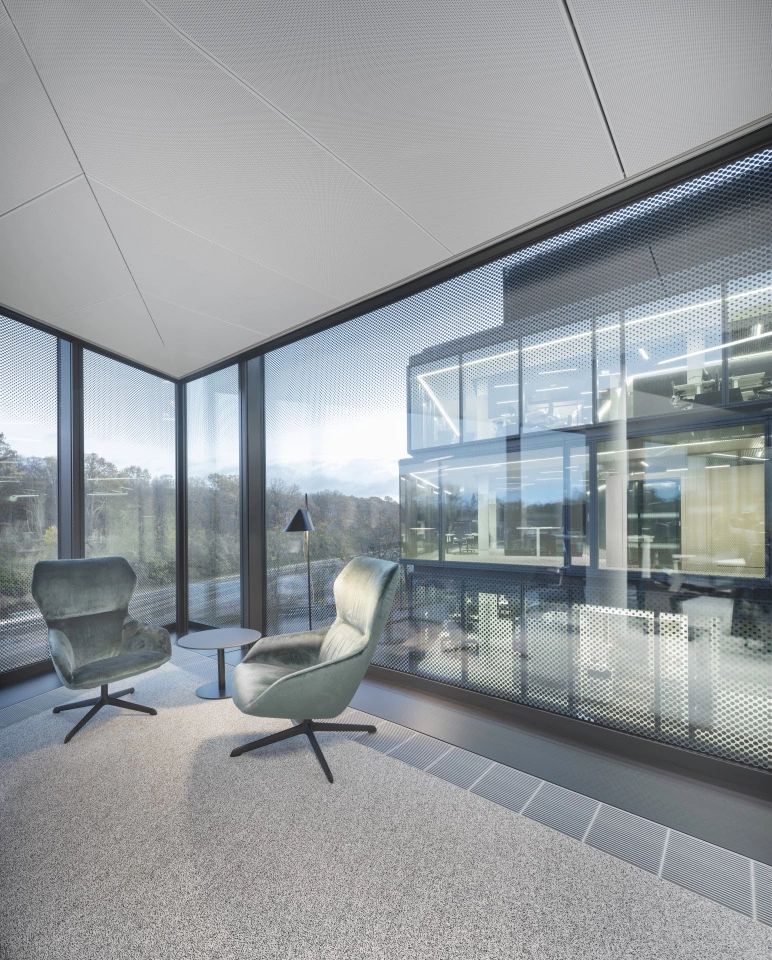

Underfloor induction unit for cooling or heating

Well suited for offices and conference rooms
Installed in raised and hollow-core floors
Installed on the subfloor using adjustable feet to make it flush with the floor surface
Can be installed as a single module or in continous lengths
Available with intermediate pieces, end pieces, mitred corners and column cut-outs for installation as continous lengths
Heat exchanger available as 2- or 4-wire
Standard modular length: 600–1800 mm (other lengths upon request)

BIA-ID-1100/340/200, 2-wire - Cooling capacity
Primary air flow (m³/h)		35			45
Inlet pressure (Pa)		68			110
Sound pressure level (dB(A))		29			33

Medium		Cooling capacity (W)
VL / RL* (°C)	RT** (°C)	Water output	Air output	Overall output	Water output	Air output	Overall output
15 / 17	30	333	143	476	390	184	574
	28	297	119	416	343	153	496
	26	241	95	336	294	122	416
	24	194	71	265	244	92	336
VL = Water flow, RL = Water return * RT = Room temperature Given: Primary air temperature: 18 °C

BIA-ID-1100/340/200, 2-wire - Heating capacity
Primary air flow (m³/h)		35			45
Inlet pressure (Pa)		68			110
Sound pressure level (dB(A))		29			33

Medium		Heating capacity (W)
VL / RL* (°C)	RT** (°C)	Water output	Air output	Overall output	Water output	Air output	Overall output
75 / 65	15	1966	60	2026	2261	77	2338
	18	1859	24	1883	2138	31	2169
	20	1788	0	1788	2056	0	2056
	22	1716	-24	1692	1973	-31	1942
VL = Water flow, RL = Water return * RT = Room temperature Given: Primary air temperature: 20 °C
