IQlogic: superior control system

Overview

All-inclusive controls

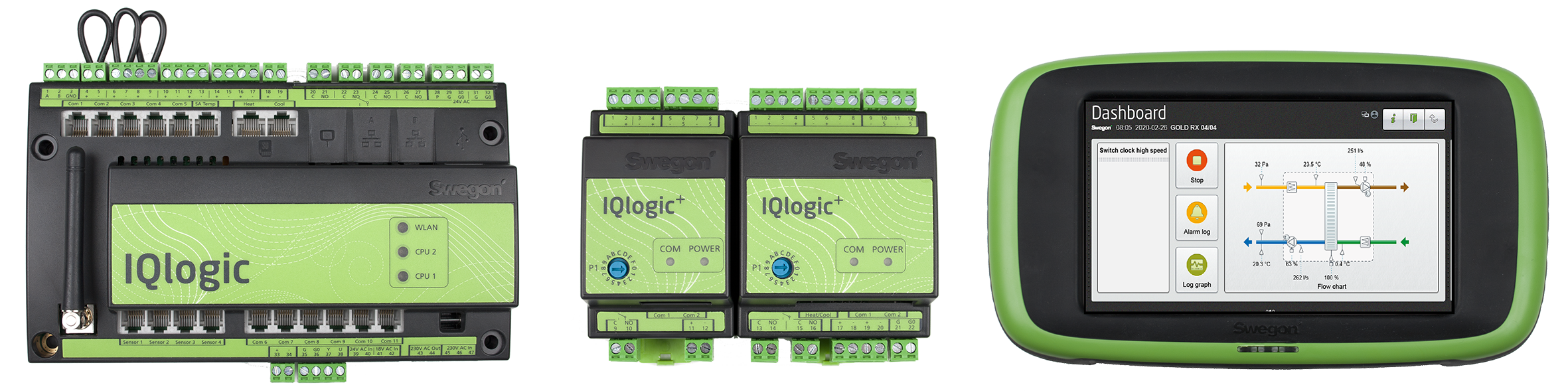

IQlogic control system ensures reliable operation, helps reduce energy costs and simplifies system management. Every GOLD unit is delivered with factory installed and tested controls, ensuring a consistent, superior experience with every GOLD unit. It is also future-proof.​

• Adaptable: All functions are built-in, ready for activation when you need it.
• Plug-and-play: Simple installation and commissioning saves time and reduces errors.
• User-friendly: Hand-held terminal (HMI) with easy access to settings, smart guides, real-time system insights and fault tracing support.
• Consistent experience: The same HMI and functions on all GOLD units makes life easier for those responsible for start-up and maintenance across multiple air handling units and locations.
• Smart: Built-in intelligence and seamless connectivity to Building Management Systems, secure cloud connection and remote access from any device.

Learn more in the following tabs or scroll down to explore the 80+ control functions!

• Airflow regulation

User interface

Advanced controls, made simple

Unlock the full potential of GOLD with IQnavigator, a lightweight hand-held terminal with a 7" multitouch screen. The HMI has an intuitive interface designed for easy and reliable AHU management.

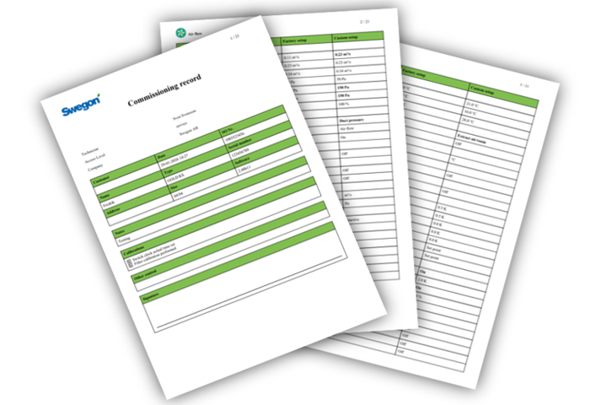

Quick and easy commissioning using files with pre-configured set-up from the AHU Design selection. Editable commissioning records keep everything documented.

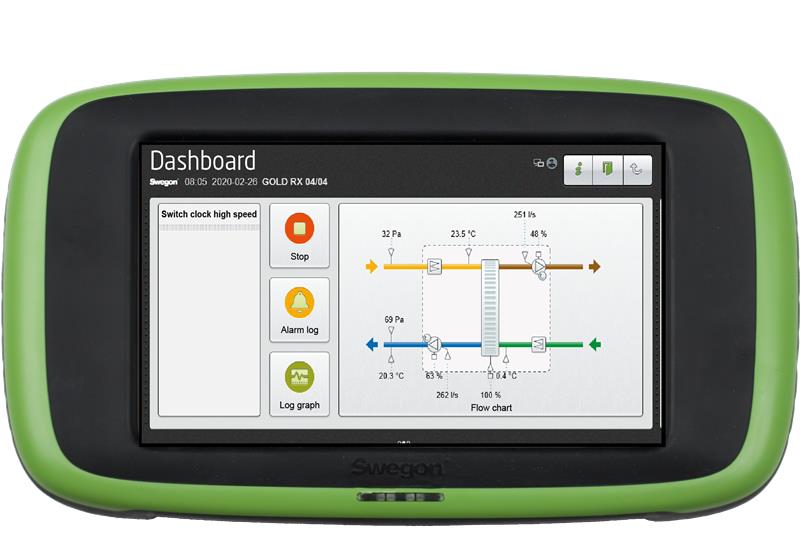

Dashboard shows real-time status and alarms at a glance.

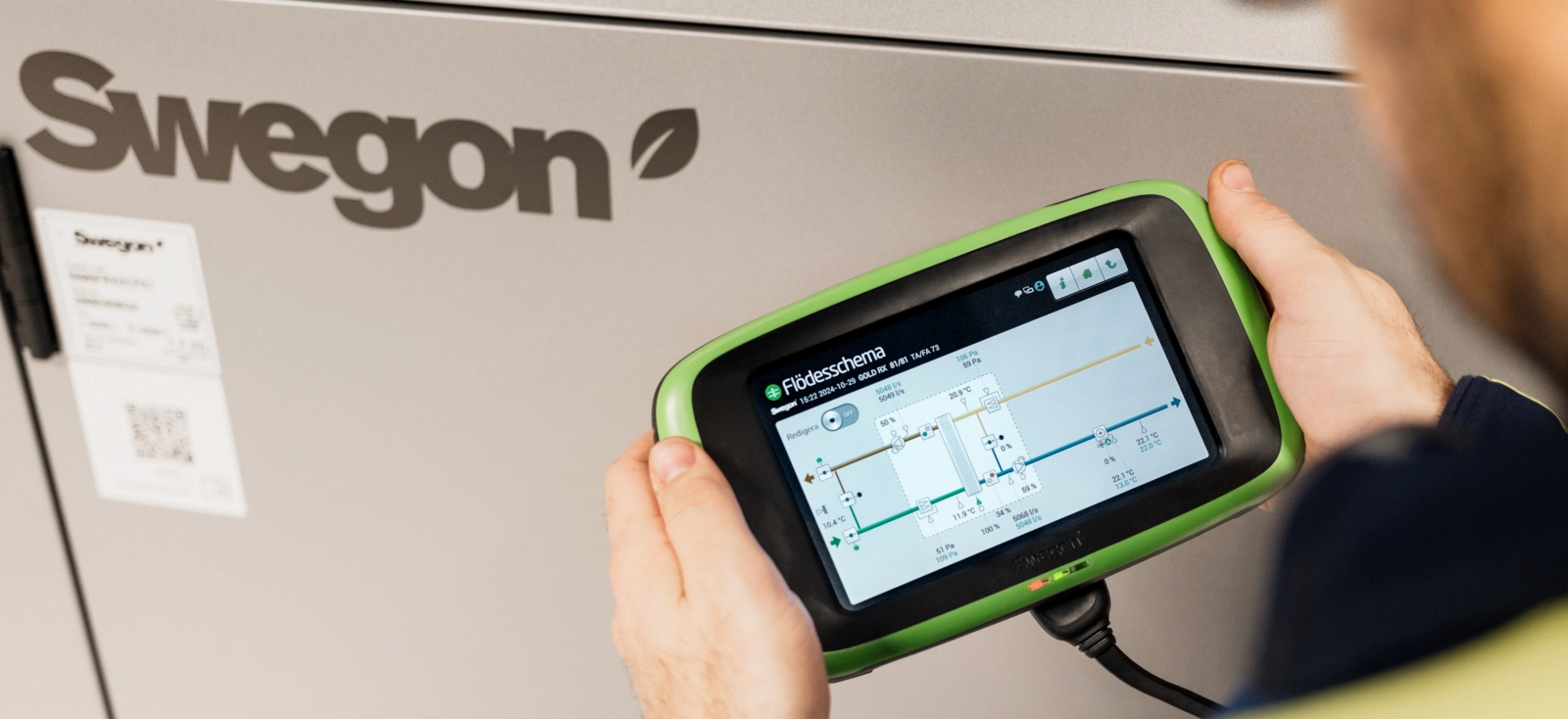

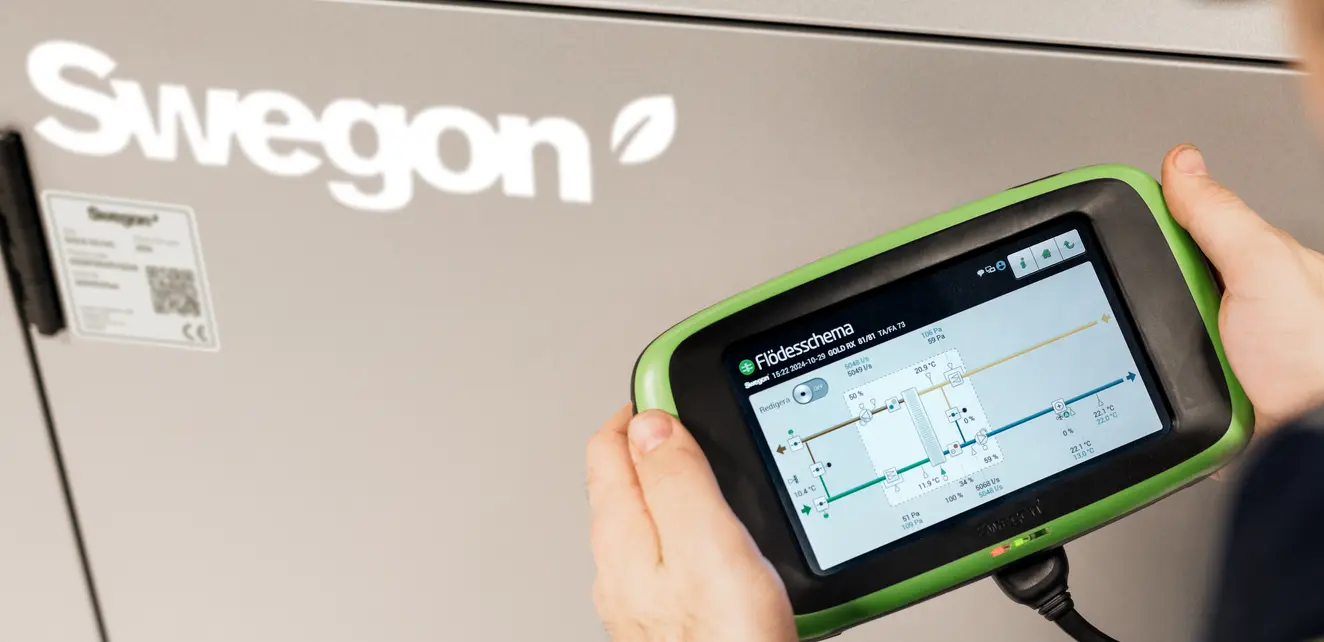

Dynamic flow chart with object-specific customisable component labelling displays live performance data.

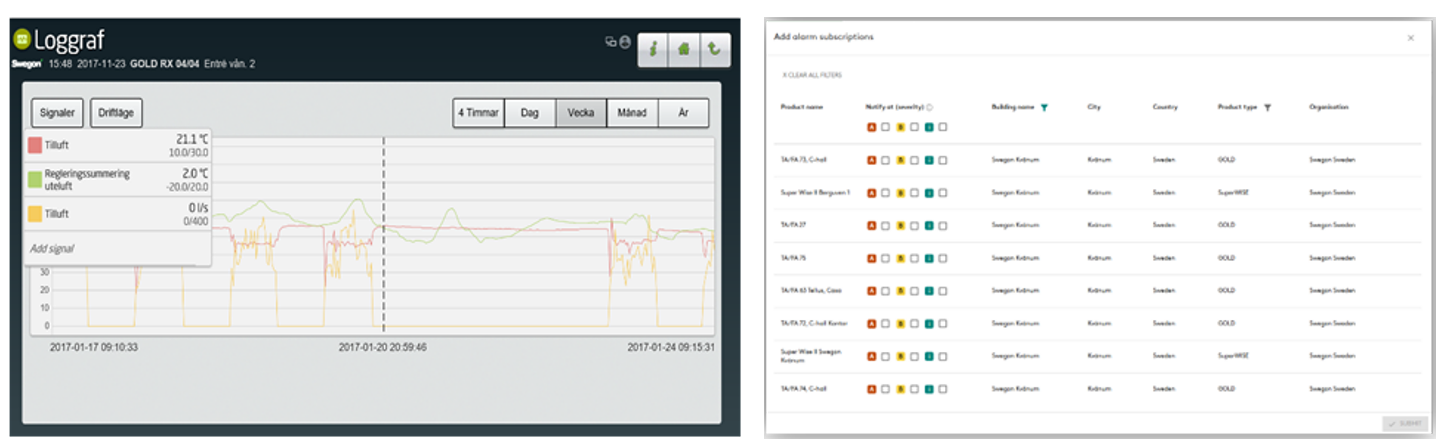

Log graphs offer deeper insights and historic data.

Smart guides supports start-up, alarm troubleshooting and filter calibration to reduce errors.

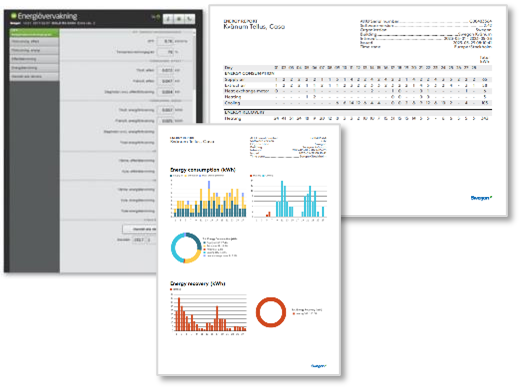

Energy monitoring and printable reports tailored to your needs for better efficiency tracking.

All functions are built-in and available, with help texts explaining why and how to activate them.

Remote access using laptop, tablet or smartphone.

Learn more

• IQnavigator operating procedures
• Function manual for users

Communication

Connected and in control

With built-in intelligence GOLD offers seamless connectivity to Building Management Systems, secure cloud connection and remote access from any device.

At the unit

• Use the IQnavigator hand-held terminal
• Connect your computer, tablet or smartphone via the secure Wi-Fi access point and access the internal webpage to manage GOLD just like on the hand-held terminal. Enjoy complete control and monitoring.

From a distance/remote

• Communication with building management systems can be established via Ethernet or EIA 485 interfaces.Supports Modbus TCP, Modbus RTU, Metasys N2, Exoline and BACnet IP out of the box. Also Cloud APIs are available.
• INSIDE Connect router offers access the GOLD internal webpage where you can enjoy complete control, monitoring and visualisation identical to the hand-held terminal.
• Use INSIDE Connect router or Ethernet connection to connect effortlessly and securely to the cloud. All GOLD units are INSIDE Ready, enabling free access to the INSIDE Portal. Monitor key parameters, track alarms and activate extra services to optimise efficiency.

Full cyber security
GOLD units are certified according to the extended CE marking according to the Radio Equipment Directive (RED) for wireless products. When using the internal webpage unique passwords are required. To connect a product to Swegon INSIDE Cloud, a secure internet connection and a valid certificate for each unit is required to approve them to share data with INSIDE Cloud, in addition to a certain hardware and software version.

Links

• Digital services by Swegon
• How to connect GOLD to the cloud

Energy monitoring

Monitor – Analyse – Optimise – Report

Get a clear overview of energy consumption and optimise efficiency using powerful monitoring and reporting tools.

Track key metrics
Monitor consumed and recovered energy, SFP values, fan power, and temperature efficiency in real time. Add sensors and pulse counters for more details.

Smart alarm monitoring
Valve monitoring with automatic alerts for valve actuator deviations and temperature efficiency limits supports quick troubleshooting.

Analyse performance
Access log graphs via the hand-held terminal or web interface for deeper insights.

Customisable reporting
Reports are generated via the hand-held terminal, INSIDE Portal or web interface, and can be tailored to your needs for level of detail and time intervals. If connected to Swegon INSIDE, you can also forward data to your building management system.

Proactive maintenance

Making maintenance predictive

Built-in functions provide actionable data for proactive maintenance and optimal system efficiency. Monitor, diagnose and receive alerts and reports from anywhere.

Continuous filter monitoring: Integrated pressure sensors track filter condition in real time, alerting you when filters need attention. Automatic calibration ensures accurate readings after filter changes.

Smart alarm management and instant notifications for deviations related to temperature, airflow, or component status. Alarms are clearly displayed in the HMI, web page or INSIDE Portal and can be forwarded to your email or building management system.

Comprehensive logging & diagnostics of key parameters such as operating status, energy use and filter pressures, all visualised in the hand-held terminal or web interface. Historical data and trends help you identify issues early and plan maintenance.

Service period tracking: Set service intervals and receive automatic reminders when it’s time for scheduled maintenance, helping you stay compliant and avoid unexpected downtime.

Predictive insights: Efficiency measurement and component monitoring helps identify and address issues before they affect performance.

Demo

Try IQlogic and IQnavigator online

Use the link to the right, log in and explore the GOLD control system yourself!

• Try IQlogic yourself
