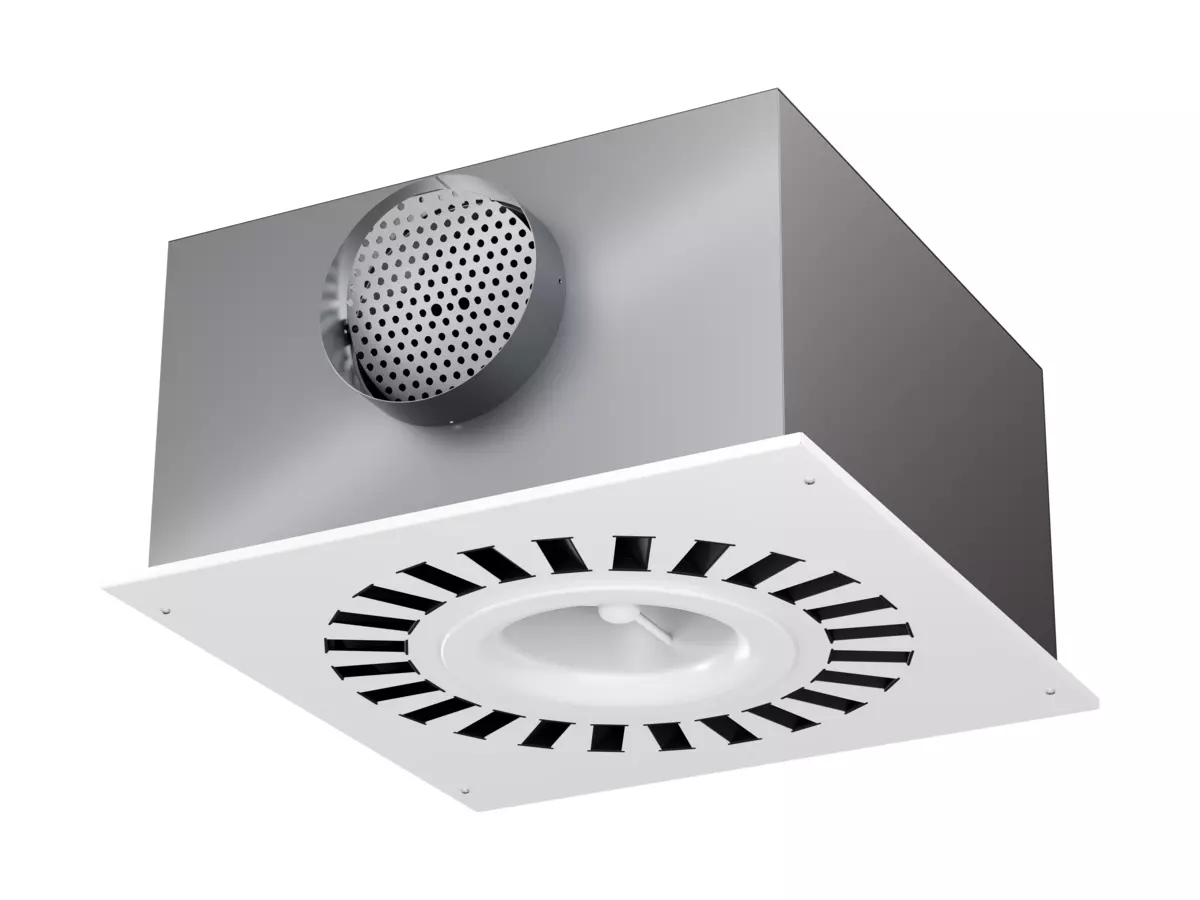

SKD-ZA
Kombinierter Zuluft- und Abluft-Deckenauslass
- Platzsparender Auslass für effiziente Belüftung
- Anschlusskasten entsprechend der Größe und dem Luftvolumenstrom angepasst
- Die Zuluft wird über verstellbare Luftleitelemente radial verteilt
- Die Abluft wird über den zentralen Kegel abgeführt
Schnellauswahl | ||||||||
Größe | LPA = 30 dB | LPA = 35 dB | LPA = 40 dB | LPA = 45 dB | ||||
V (m3/h) | ∆ p (Pa) | V (m3/h) | ∆ p (Pa) | V (m3/h) | ∆ p (Pa) | V (m3/h) | ∆ p (Pa) | |
400 | 203 | 24 | 322 | 56 | 481 | 119 | 684 | 230 |
500 | 241 | 16 | 322 | 28 | 413 | 45 | 514 | 68 |
600 | 315 | 15 | 394 | 23 | 483 | 35 | 575 | 49 |
