JPK

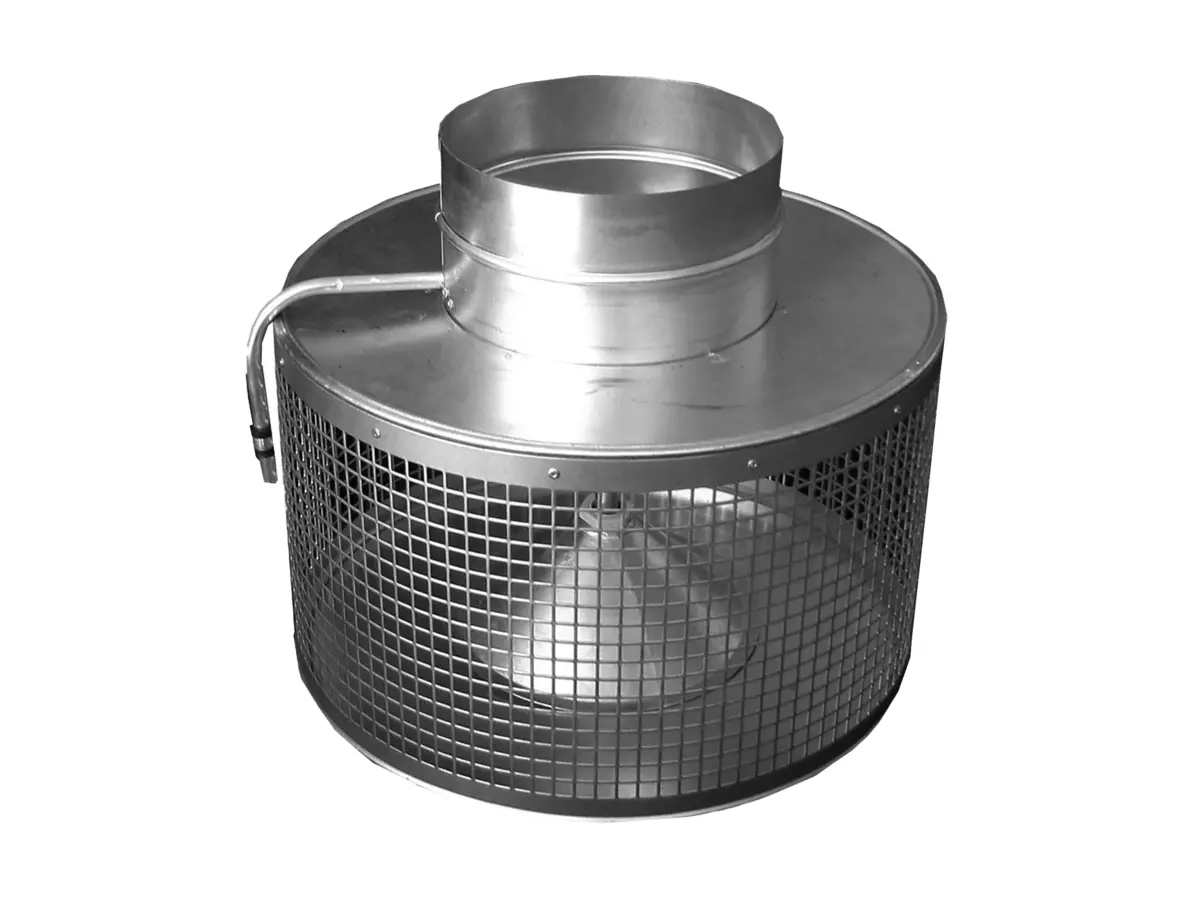

Runder Radialauslass für große Luftvolumenströme
- Radialstrahlauslass mit einstellbarem Steuerkegel für horizontale oder vertikale Verteilung
- Steuerkegel manuell oder über Elektromotor verstellbar
- Gewährleistet zugfreie Belüftung in großen Räumen, insbesondere im Kühlmodus, auch bei hohen Luftvolumenströmen und Temperaturunterschieden
- Größere Abmessungen sind auf Anfrage erhältlich (400–1.420 mm)
Horizontalstrahl | |||||||||
Größe | LPA = 30 dB | LPA = 35 dB | LPA = 40 dB | LPA = 45 dB | |||||
V (m3/h) | ∆p (Pa) | V (m3/h) | ∆p (Pa) | V (m3/h) | ∆p (Pa) | V (m3/h) | ∆p (Pa) | ||
25 | 592 | 17 | 798 | 30 | 1080 | 54 | 1440 | 95 | |
31 | 1420 | 16 | 1790 | 25 | 2250 | 37 | 2830 | 55 | |
35 | 1470 | 13 | 1840 | 19 | 2330 | 30 | 2940 | 46 | |
40 | 1790 | 11 | 2220 | 16 | 2740 | 24 | 3400 | 36 | |
Vertikalstrahl | |||||||||
Größe | LPA = 30 dB | LPA = 35 dB | LPA = 40 dB | LPA = 45 dB | |||||
V (m3/h) | ∆p (Pa) | V (m3/h) | ∆p (Pa) | V (m3/h) | ∆p (Pa) | V (m3/h) | ∆p (Pa) | ||
25 | 485 | 16 | 599 | 24 | 739 | 37 | 913 | 58.3 | |
31 | 1070 | 15 | 1390 | 26 | 1810 | 43 | 2370 | 71 | |
35 | 1420 | 15 | 1720 | 23 | 2100 | 34 | 2550 | 51 | |
40 | 1950 | 18 | 2260 | 24 | 2630 | 31 | 3060 | 40 |
