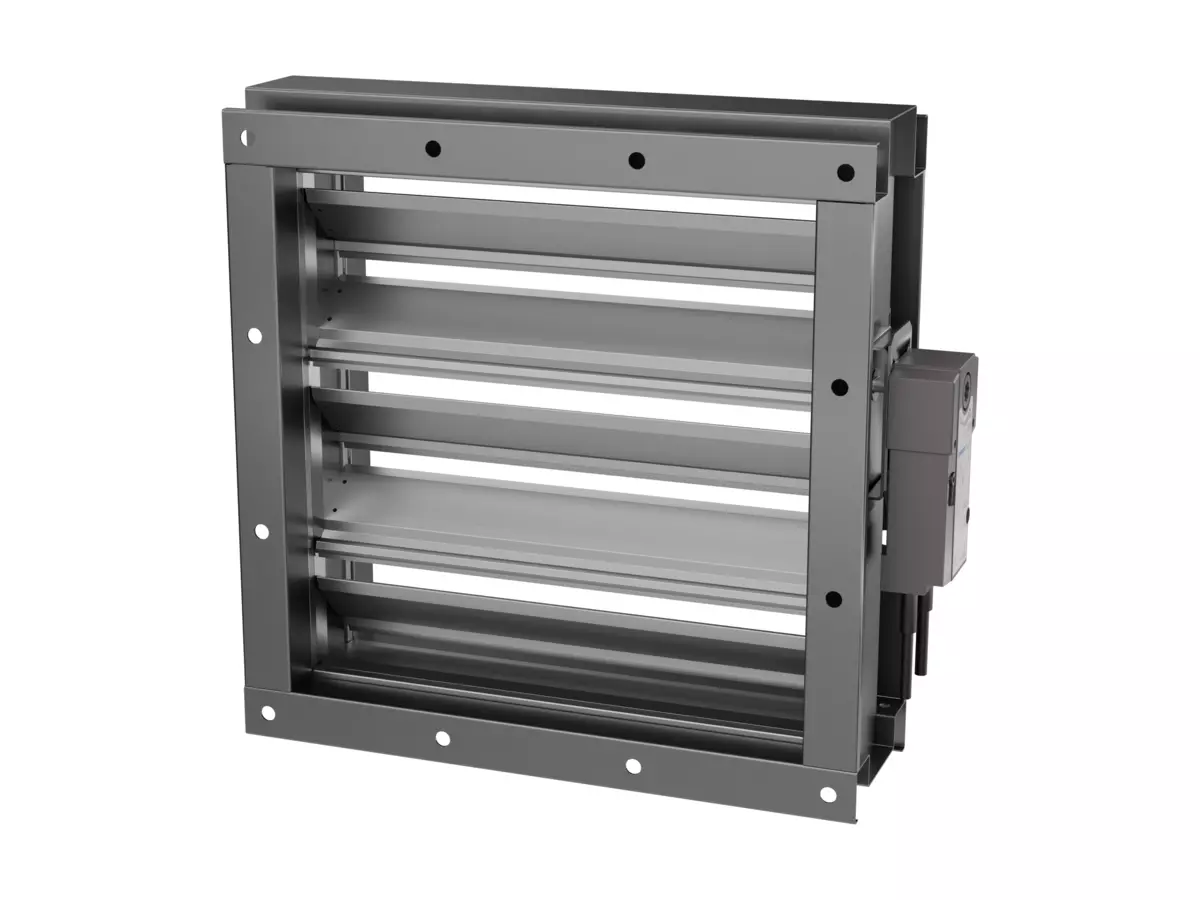

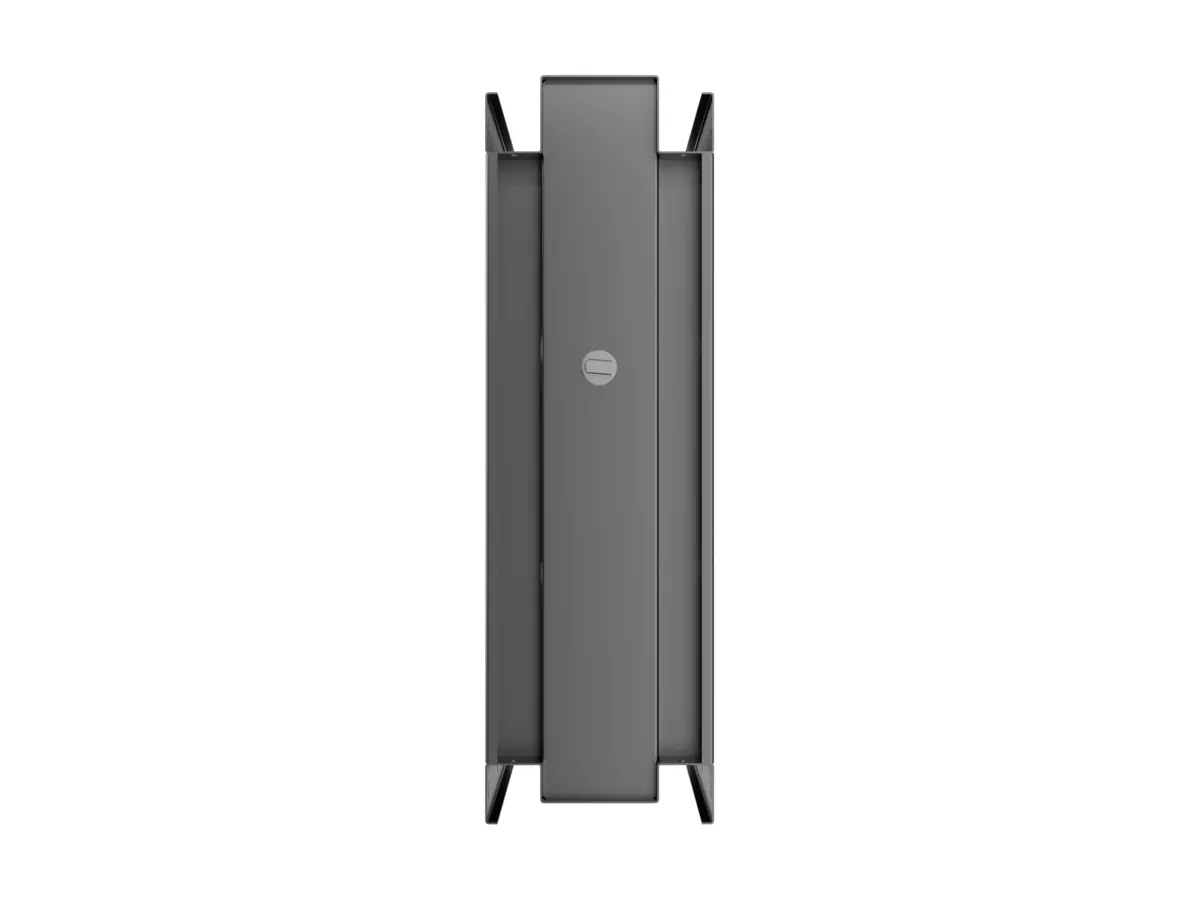

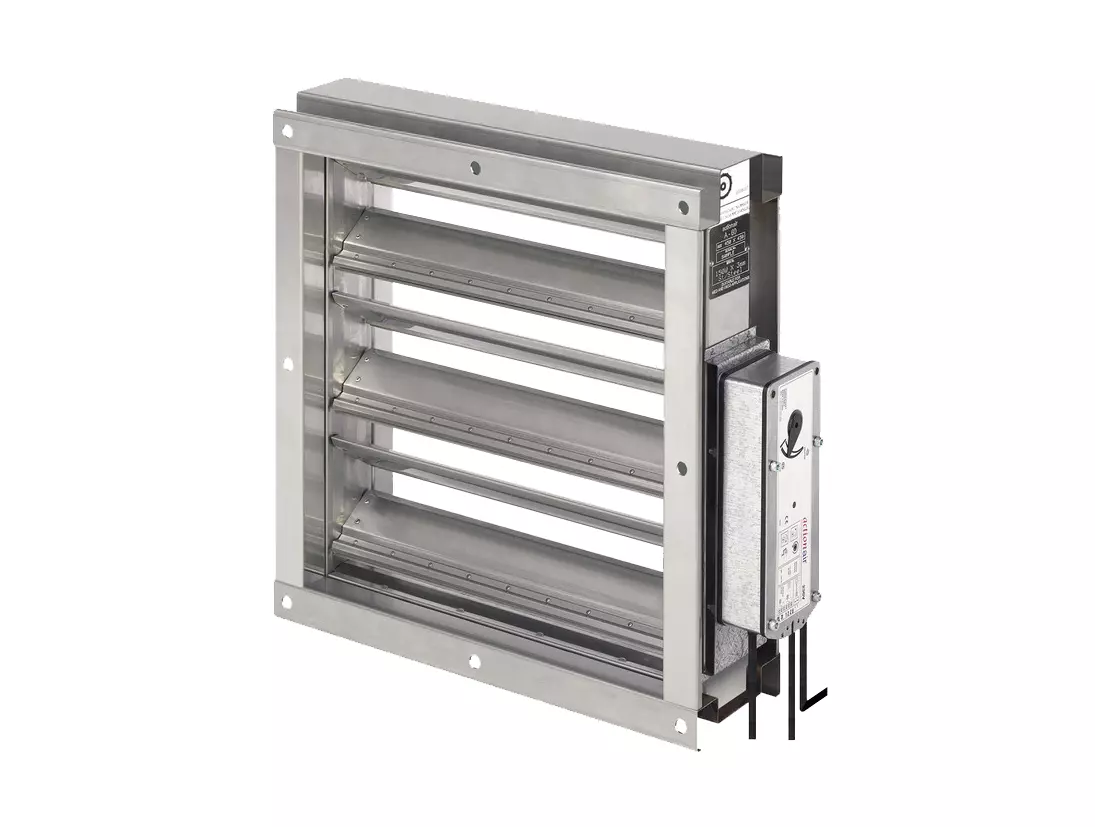

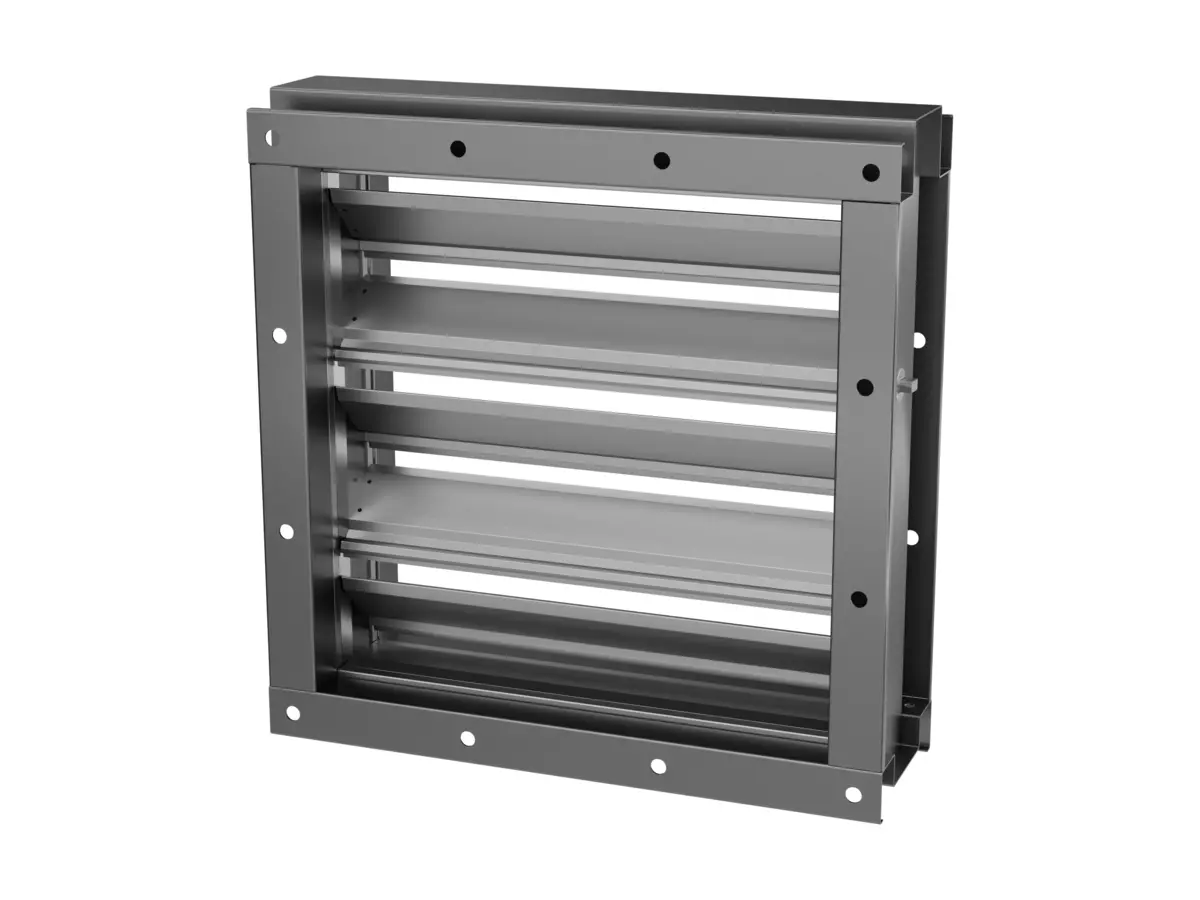

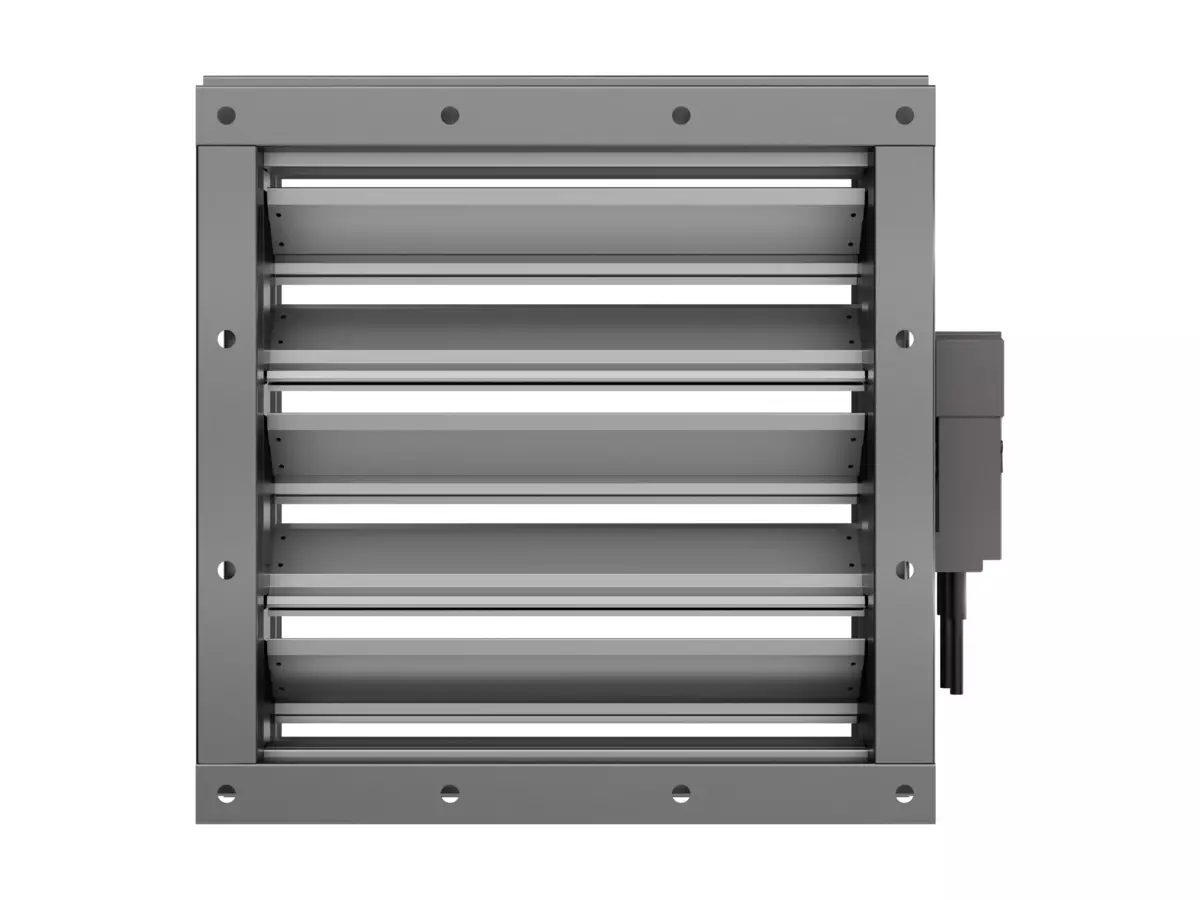

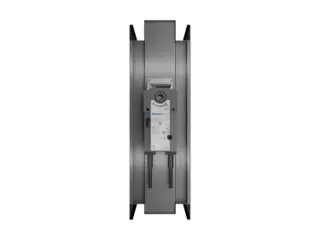

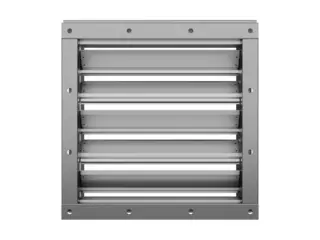

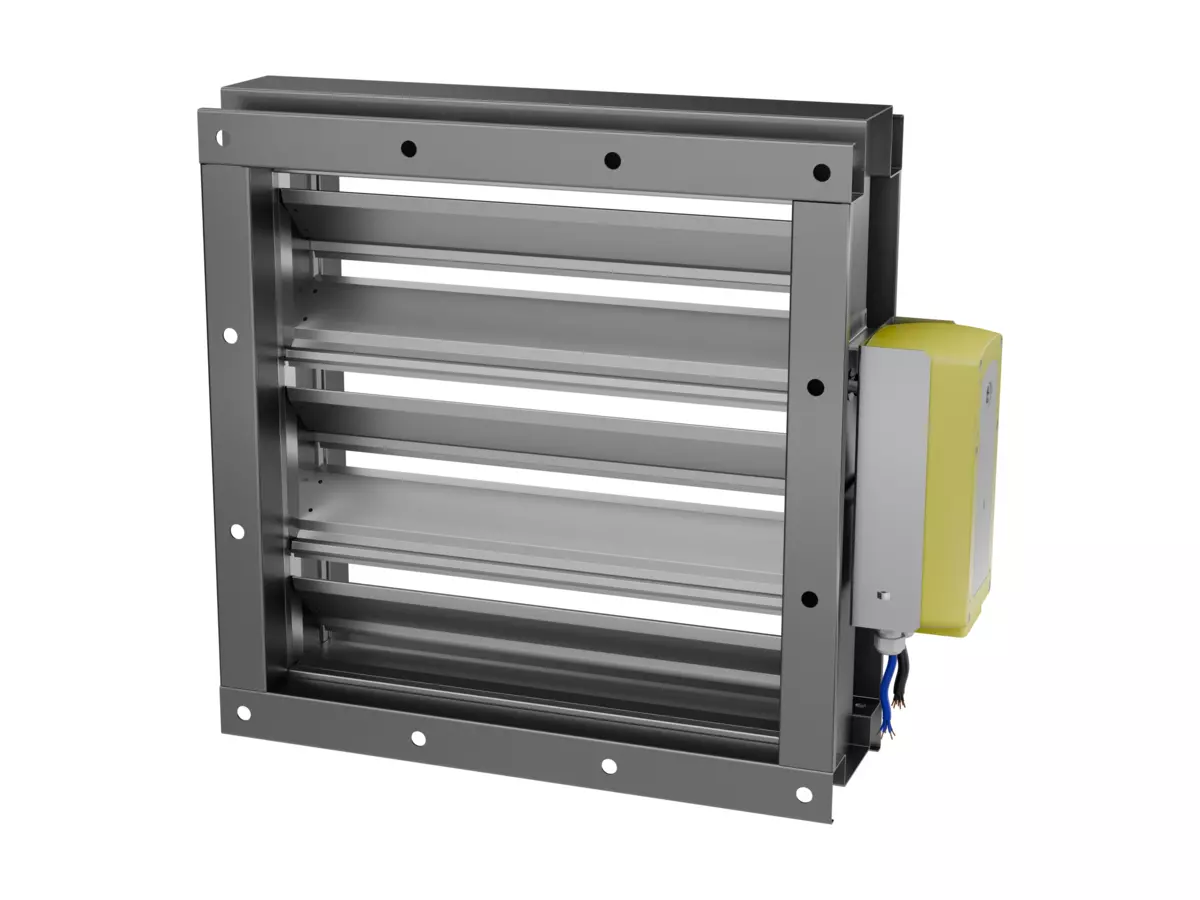

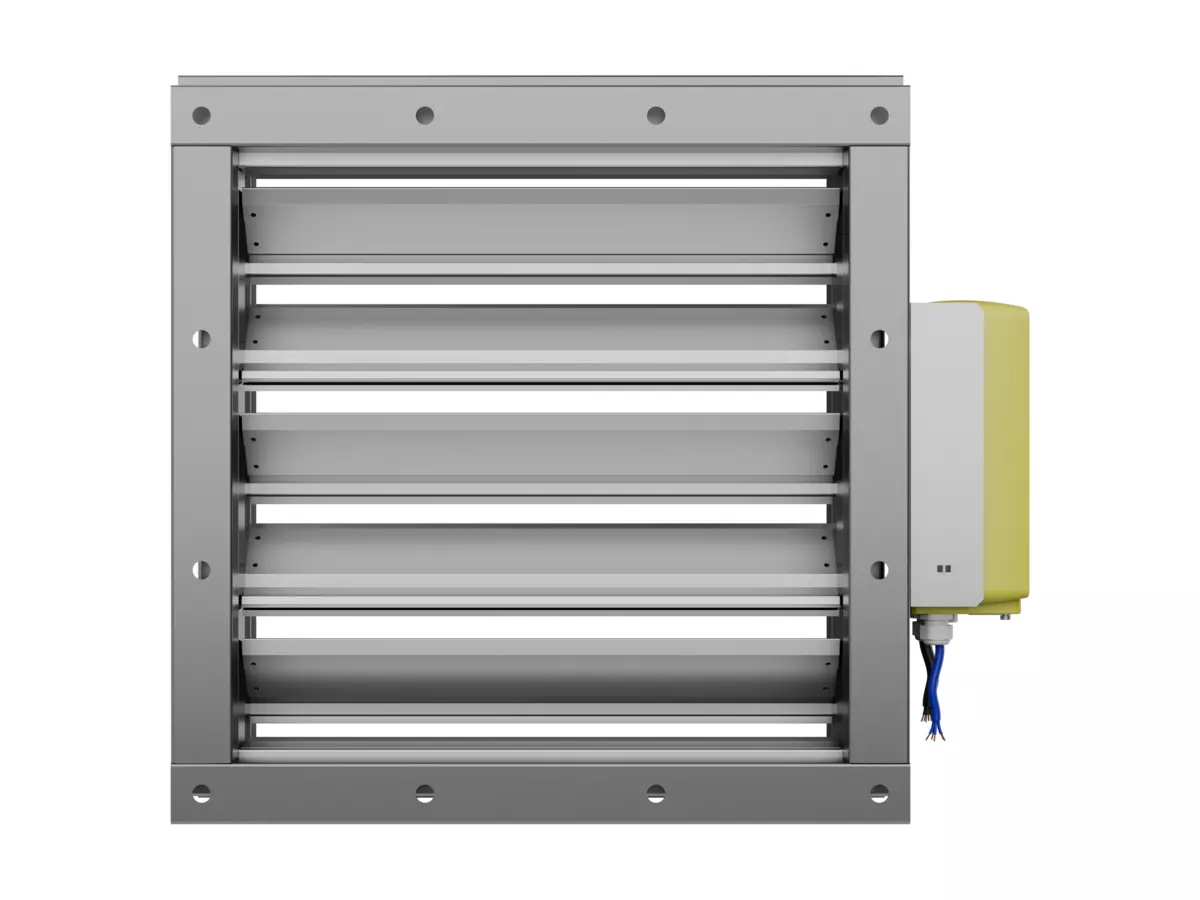

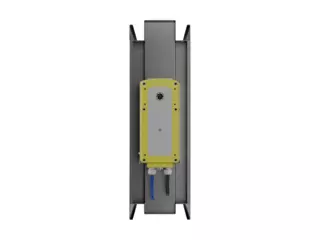

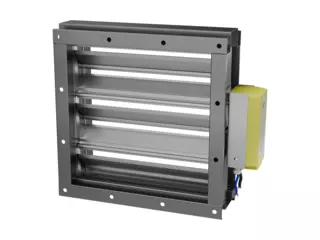

A60 MARINE FIRE DAMPER

Marine Fire Damper suitable for applications in A0, A15, A30 and A60 class bulkheads and decks
  • Designed for inclusion in air conditioning and ventilation systems, in dry filtered air, and is tested and approved for fitting to class A-0, A-15, A-30 and A-60 divisions (bulkheads and decks).

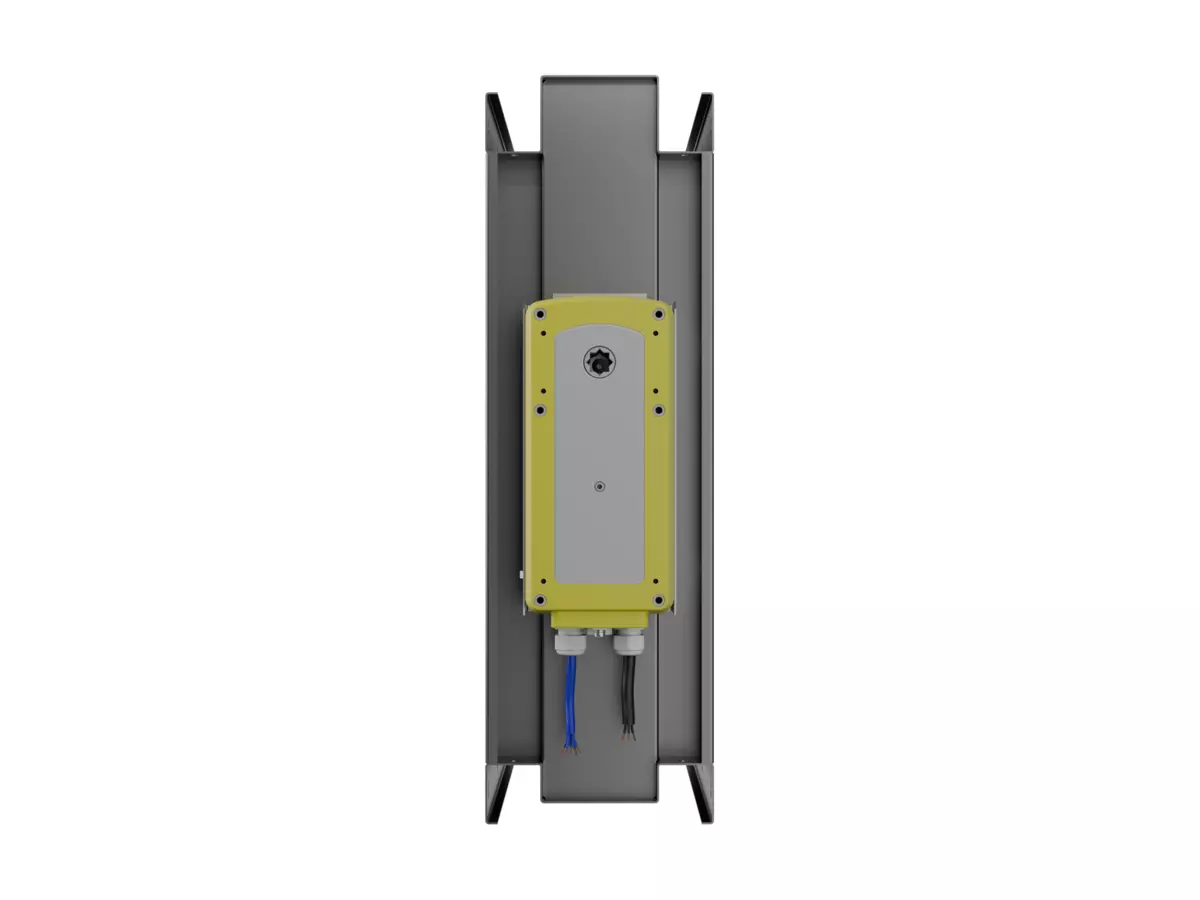

  • ATEX options available.

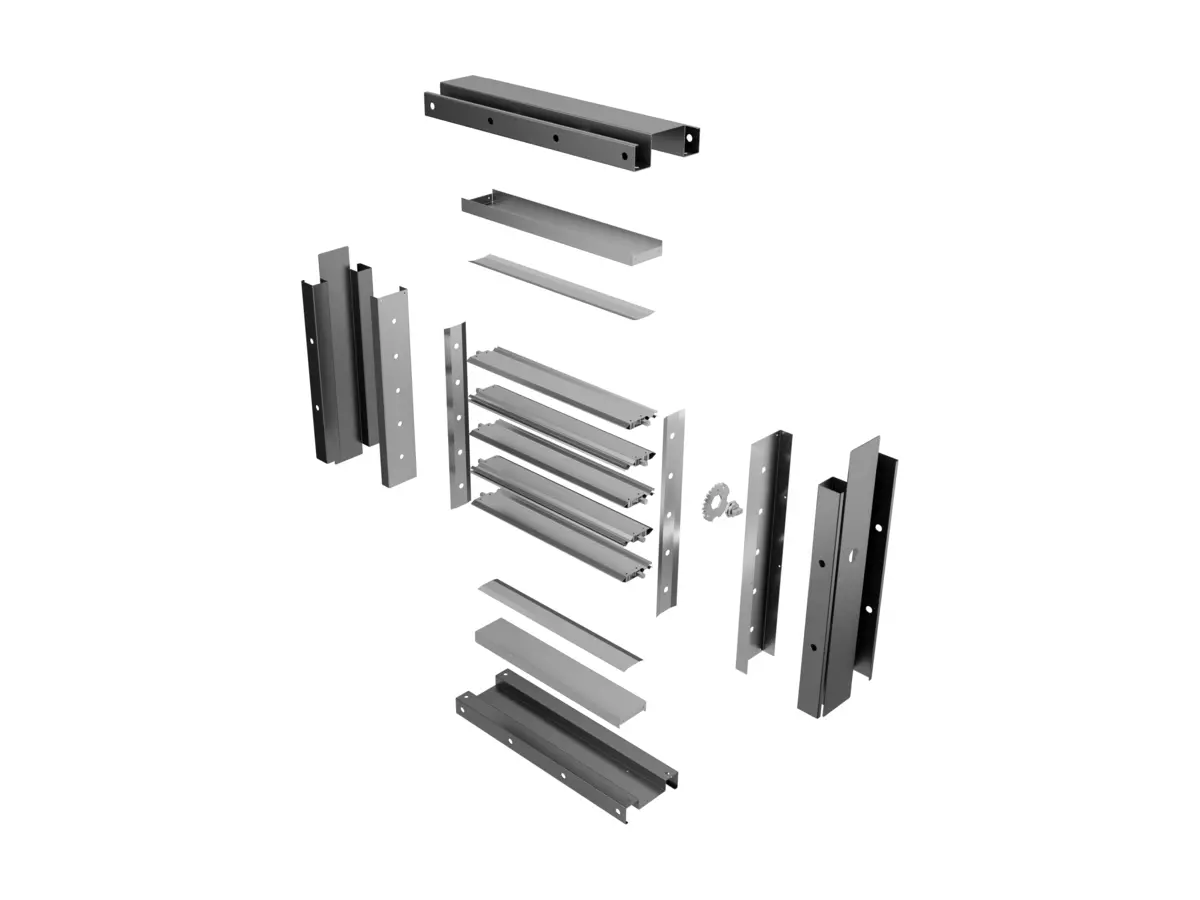

  • Supplied with either 430 Ferritic Stainless steel blades, galvanised steel casing or 316 Austenitic Stainless steel blades, casing and drive.
  • DNV Type approved.
  • Lloyds Register Approval to IMO Fire Test Procedures Code, Annex 1, Part 3, for Class A0, A15, A30 & A60 Division bulkheads and decks.
  • ABS (American Bureau of Shipping) Product Design Assessment.
  • Certificate of Fire Approval.

The A-60 Marine Fire Damper compliments the comprehensive range of automatic fire and smoke dampers and associated controls, provides the complete solution for shipboard air conditioning and ventilation systems and fire safety engineering strategies. The A-60 Marine Fire Damper has been designed for inclusion in air conditioning and ventilation systems, in dry filtered air, and is tested and approved for fitting to class A-0, A-15, A-30 and A-60 divisions (bulkheads and decks), when suitably insulated (refer to insulation details).
