GOLD

GOLD

Our premium air handling unit range, covering a wide air flow range and suitable for most applications. Best-in-class and fully integrated controls, with comprehensive and adaptable functionality to ensure lowest life cycle cost.

Why GOLD?

  • World-class energy efficiency
  • T2, TB2, L2, D1 casing performance according to EN 1886
  • VDI 6022 Hygiene certified
  • Inhouse developed components, including rotary heat exchanger, fan impeller and control equipment
  • Fully integrated controls, with unrivalled functionality
  • Easy to adapt functionality for altered requirements
  • Easy to plan, install and commission
  • Minimal installation space required
  • QR code on unit to access documentation
  • Recycled and renewably produced steel with Magnelis® coating (C5) lowers carbon footprint
GO TO AHU DESIGN SELECTION SOFTWARE

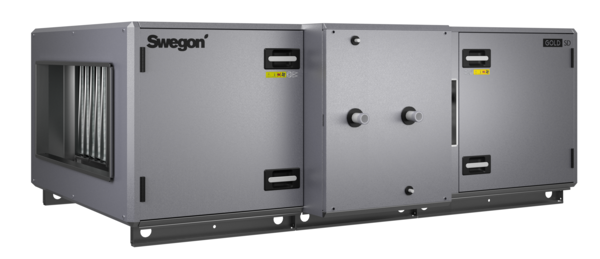

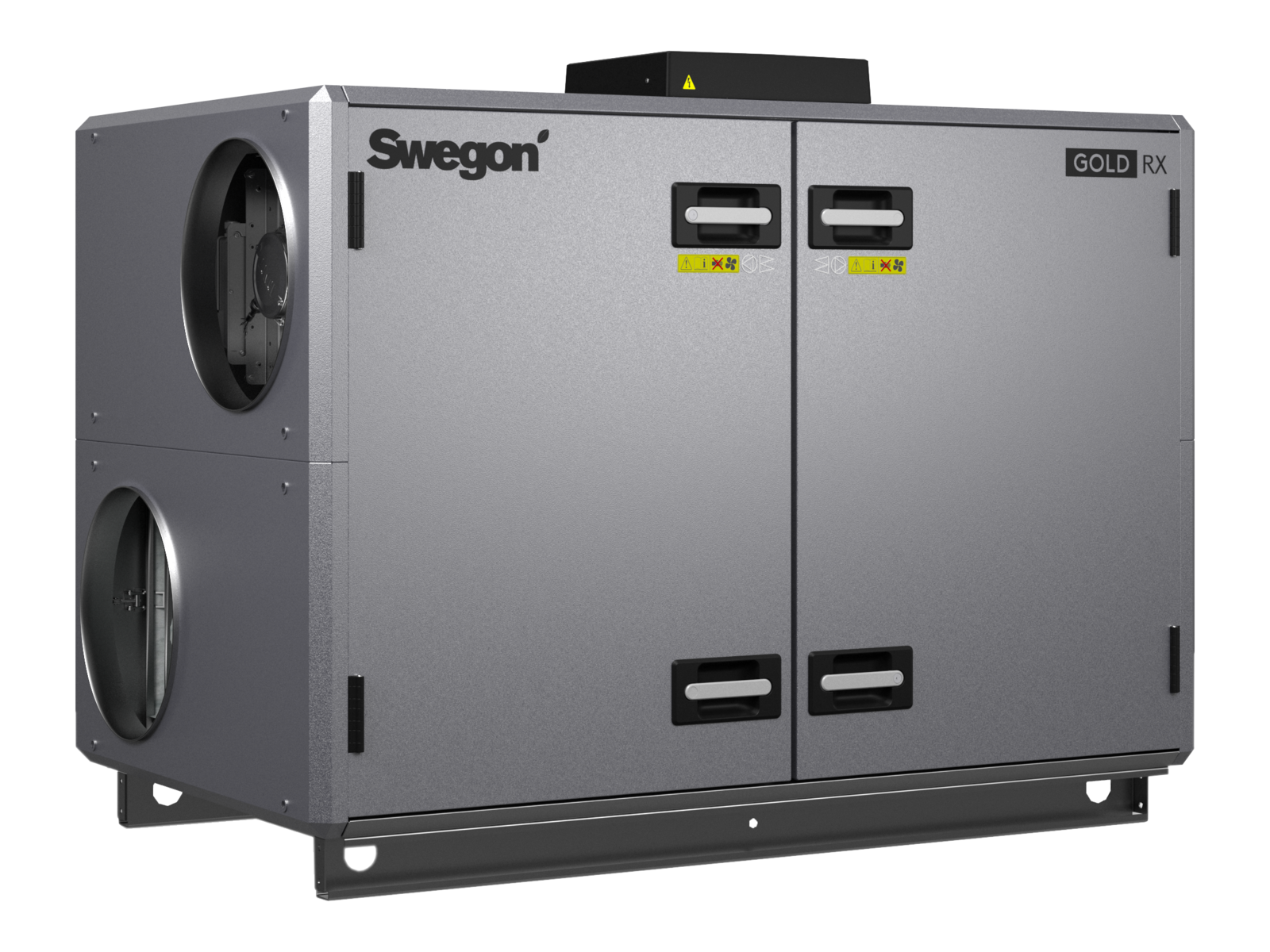

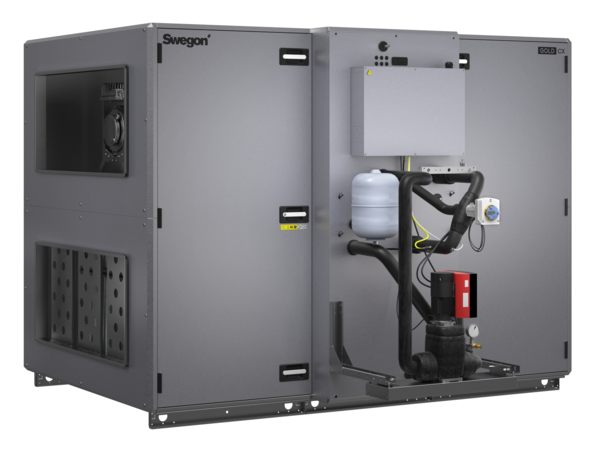

    GOLD RX  GOLD PX    GOLD CX GOLD SD   GOLD RX/HC
Heat exchangers   Rotary  Counterflow  Coil  Coil  Rotary
Air flow (m3/h) Ecodesign 290-39180   290-18112  1800-39188   290-39188   1620-25100
Air flow (m3/s) Ecodesign 0.08-10.9  0.08-5.0  0.5-10.9  0.08-11  0.45-6.9
Eurovent-certification
Control and system integration
Outdoor installation (optional extra)
Top connection –   –   –
Integrated reversible heat pump  –  – –   –
Option of separated air flows  –  –  –    –
Customisable for hygienic design (optional extra)  ●●●●  ●●●● ●●●●  ●●●●  ●●●
High level of general customisability  ●●●●  ●●●●  ●●●●  ●●●●  ●●●●
Superior energy recovery  ●●●●●  ●●●●  ●●●  ●●●  ●●●●●
High-level internal air tightness  ●●●  ●●●●  ●●●●  ●●●●●  ●●●

Superior control system IQlogic

Simple and smart - The IQlogic control system has an award-winning user interface and an easy-to-use hand-held terminal (IQnavigator), making it easy to unlock the full potential of GOLD.

  • All functionality built-in, ready to activate.
  • Seamlessly communicates with BMS via BACnet and Modbus.
  • Energy monitoring as standard with printable Energy reports.
  • Dynamic flow chart with object-specific component labelling.
  • Built-in function descriptions and alarm troubleshooting.
  • Generates commissioning records in PDF format.

Test the control system from your internet browser. Log in using the following credentials: User name: local or installation - Password: 0000 for local, 1111 for installation

WEB DEMO

IQnavigator HMI

Connecting GOLD units to the Swegon INSIDE cloud enables digital services and remote monitoring

ALL GOLD units are delivered Swegon INSIDE Ready, meaning ready to connect to the Swegon INSIDE cloud.

  • Simplify service and maintenance
  • Monitor performance and alarms
  • Full overview of all Swegon products in one place
  • Easy access from smartphone, tablet or computer
  • Different services available to fit your needs
  • Future proof – ready to connect to various systems
  • High security
READ MORE ABOUT SWEGON INSIDE SERVICES

Update older GOLD units

GOLD air handling units are built to last. By replacing selected components and installing new controls, the product gets a boost and lives longer. The Refurb kit is a spare parts solution that upgrades older units (manufactured 1996-2005) to today's controls and functionality. Also, the complete fan inserts can be changed to modern fans with EC motors. This extends the service life of the unit while minimising the environmental impact.

Benefits include:

  • Prolonged life and secured availability of spare parts
  • Extended functionality and BMS communication, enabling future upgrades and connectivity
  • New, easy to use interface
  • Improved energy efficiency of the fans
  • Quick installation, avoiding major interventions in the building
READ MORE

Support from project start to finish

All videos

You need to allow cookies for marketing if you want to view this type of content from Swegon

Swegon INSIDE Ready - connect products to Cloud

Connecting products to the Swegon INSIDE cloud enables digital services and remote monitoring​.

ALL GOLD units are delivered Swegon INSIDE Ready, meaning ready to connect to the Swegon INSIDE cloud. It is provided through a software update in IQLogic along with a digital certificate that makes sure that each GOLD unit is a verified product, permitted to connect to the Swegon INSIDE Cloud.

Not only air handling units are connected to the Swegon INSIDE cloud, allowing you to manage many different Swegon products in the same cloud, using the same tools. That is one of a kind.
