Hydronic optimisation
Hydronic optimisation of multiple cooling/heating units, variable flow control, pumps and additional energy sources are optimised using the Hyzer functionality.
Main functionality
Hyzer comes in three different versions depending on your need, from a fully embedded solution to a fully customized solution based on your specific project.
- HYZER E - Embedded

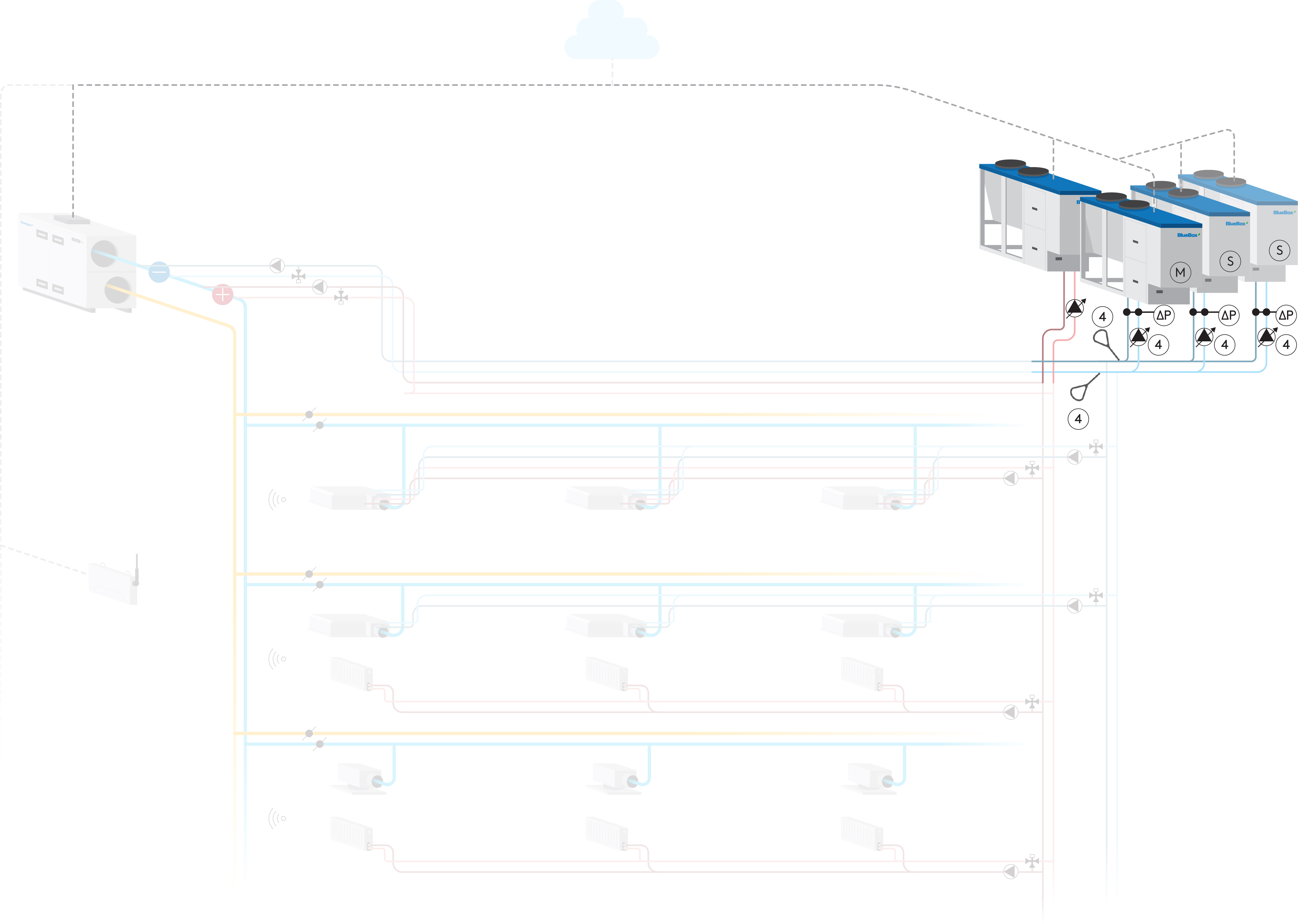

Multilogic + Flowzer for units with pumps on board - HYZER X - Advanced (Not presented in illustration)
Multilogic + Flowzer on hydronic plants with centralized pumps
Dedicated external switchboard with synoptic and manual pumps selectors - HYZER C -Custom (Not presented in illustration)
Tailor made plant control
Added value
- Integrated control of complex systems with external centralized pumping system (up to 4 pumps with inverter each, with capacity and rotation control)
- Full plant control, optimization and supervision
- Easy integration of external devices (auxiliary sources, dry coolers, well pumps, 3rd party units supervision)
- System energy monitoring (EER, COP, cooling/heating production)
Description
See also Multilogic Water and Flowzer details.
Multiple site configuration are supported:
- Similar or different A/W, W/W or multifunctional units
- Different and multiple sources
- Different water distribution systems with pumps on board or centralized, w/o inverter, up to 4 pumps with up to 2 pumps in back-up
- Primary and secondary or full primary system with variable flow management with temperature or pressure control (on single or multiple plant points of measurement)
- Different auxiliary sources working in substitution or integration
Technical details
HYZER E (Embedded)
- Fully integrated, no need for external hardware.
- Master unit is managing the thermoregulation and variable flow by controlling the speed of the pumps of each unit. See Multilogic and Flowzer for more details.
HYZER X (Advanced) and C (Custom) (not presented in illustration)
- The units are connected through Ethernet cable to an external dedicated switchboard with on board an Industrial PLC and with Touch interface with plant synoptic. By Modbus TCP/IP the Hyzer panels send commands to the units and read units status
- Plant probes (temperature and/or pressure) are directly connected to the Hyzer panel
- Hyzer panel is controlling the inverters of the pumps and the bypass valve if present
Products

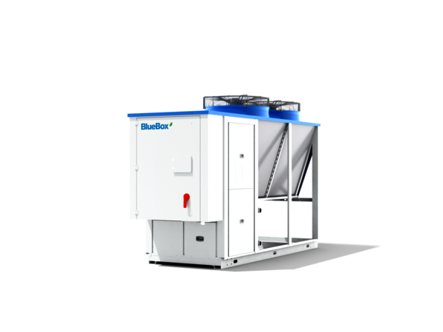

Here is a selection of the products included
