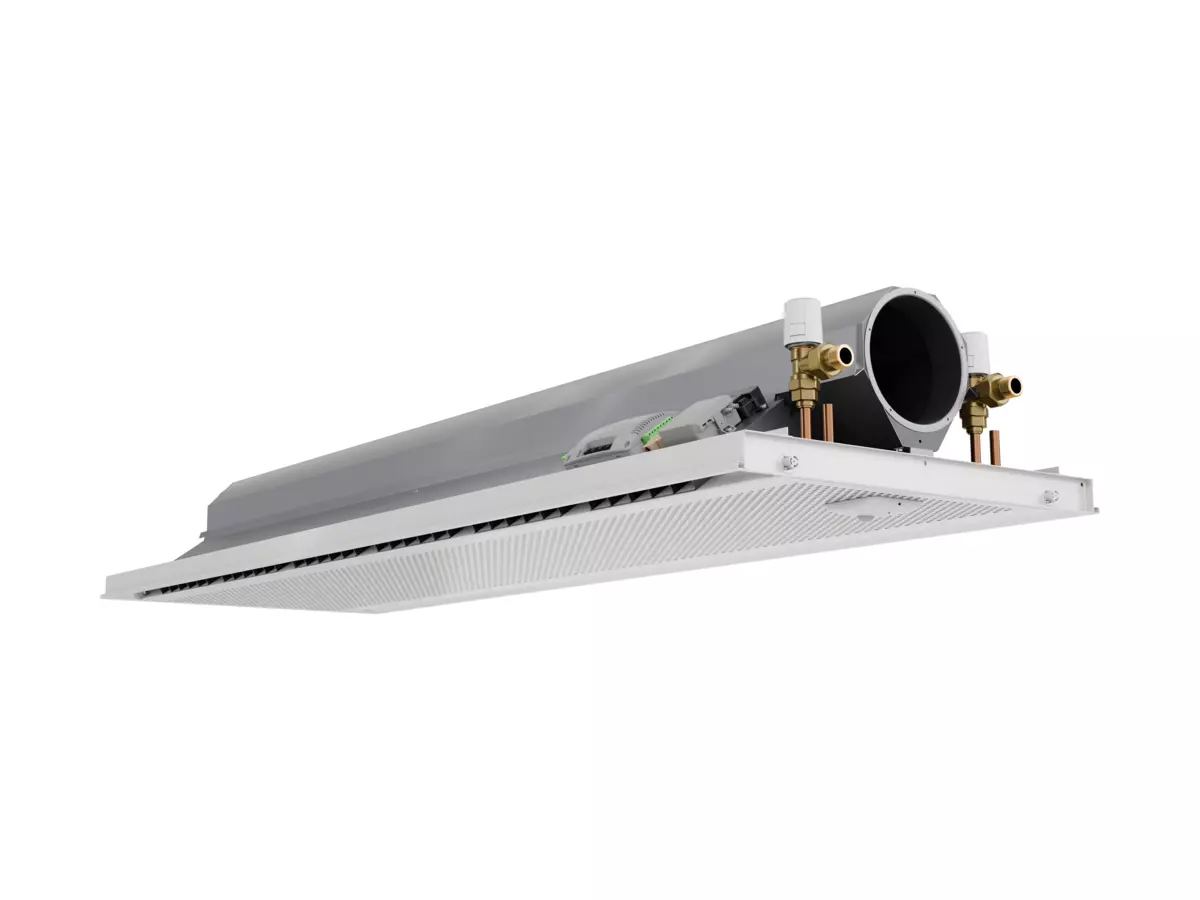

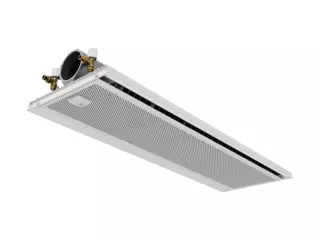

PACIFIC AWC

Chilled beam for stand-alone demand controlled ventilation

Smart Stand-Alone Control Integrated controls for automatic regulation of air and water flow.
Demand-Controlled Comfort Adjusts performance in real time based on room activity and climate needs.
Flexible Integration Works independently or connects easily with building management systems for monitoring.
Modular design Three-module system for adaptable, optimized indoor climate solutions.
Integrated SA/EA Air Modules Optional supply and extract modules for a seamless look.
Coanda Wing Option Optimized air distribution for open ceilings, eliminating drafts.

Calculate with your requirements

Material and surface treatment

The air module is manufactured in recycled galvanized sheet steel (zinc plated)
The face plate is in prepainted sheet steel and aluminium RAL 9003
Coil in copper and aluminium

Standard colour:

RAL 9003 White (Signal white), gloss ratio 30 ± 6%

Alternative standard colours:

RAL 7037 Grey (Dusty gray), gloss ratio 30-40%)
RAL 9010 White (Pure white), gloss ratio 30-40%)
RAL 9005 Black (Jet black), gloss ratio 30-40%)
RAL 9006 Silver (White aluminium), gloss ratio 70-80%)
RAL 9007 Grey (Grey aluminium), gloss ratio 70-80%)
Other colours available on request.

Installation, commissioning and maintenance

The PACIFIC AWC is supplied with four mounting brackets and self-tapping screws packaged separately and supplied with each unit. The pre-punched holes in each mounting bracket simplify the fastening work.

The mounting brackets are designed enabling them to be turned in any optional direction depending to suit type of suspension system selected. Turned inward, the mounting brackets offer simple installation by means of mounting strips. Turned outward, the mounting brackets work at their best for suspending the beams by means of size M8 threaded rods.

Mounting strips and threaded rods are not supplied with the unit. If assembly fittings are required, these can be ordered separately.

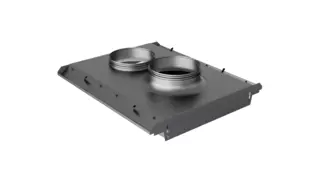

PACIFIC SA/EA

PACIFIC SA/EA module for installation and integration into the PACIFIC climate beam.

SYST MS

Assembly fitting

LUNA RE

Room controller for air- and waterborne indoor climate systems

LUNA RC

Digital room controller for air and waterborne indoor climate systems

Filter

Include Accessory documents

Document	Product	Document type	Download
PACIFIC family (pdf 1.62MB)	PACIFIC, PACIFIC AWC, WISE Pacific	Brochure
Eurovent certificate (pdf 197.65kB)	Chilled beams	Quality
