PACIFIC

Chilled beam for cooling, heating and ventilation

Modular & Future-Ready Flexible modules and upgrade kits make it easy to adapt to new layouts or digital upgrades.

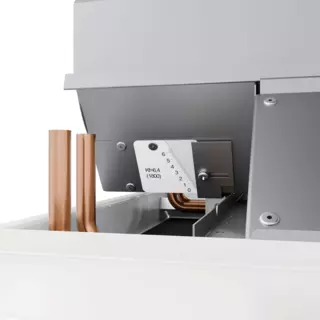

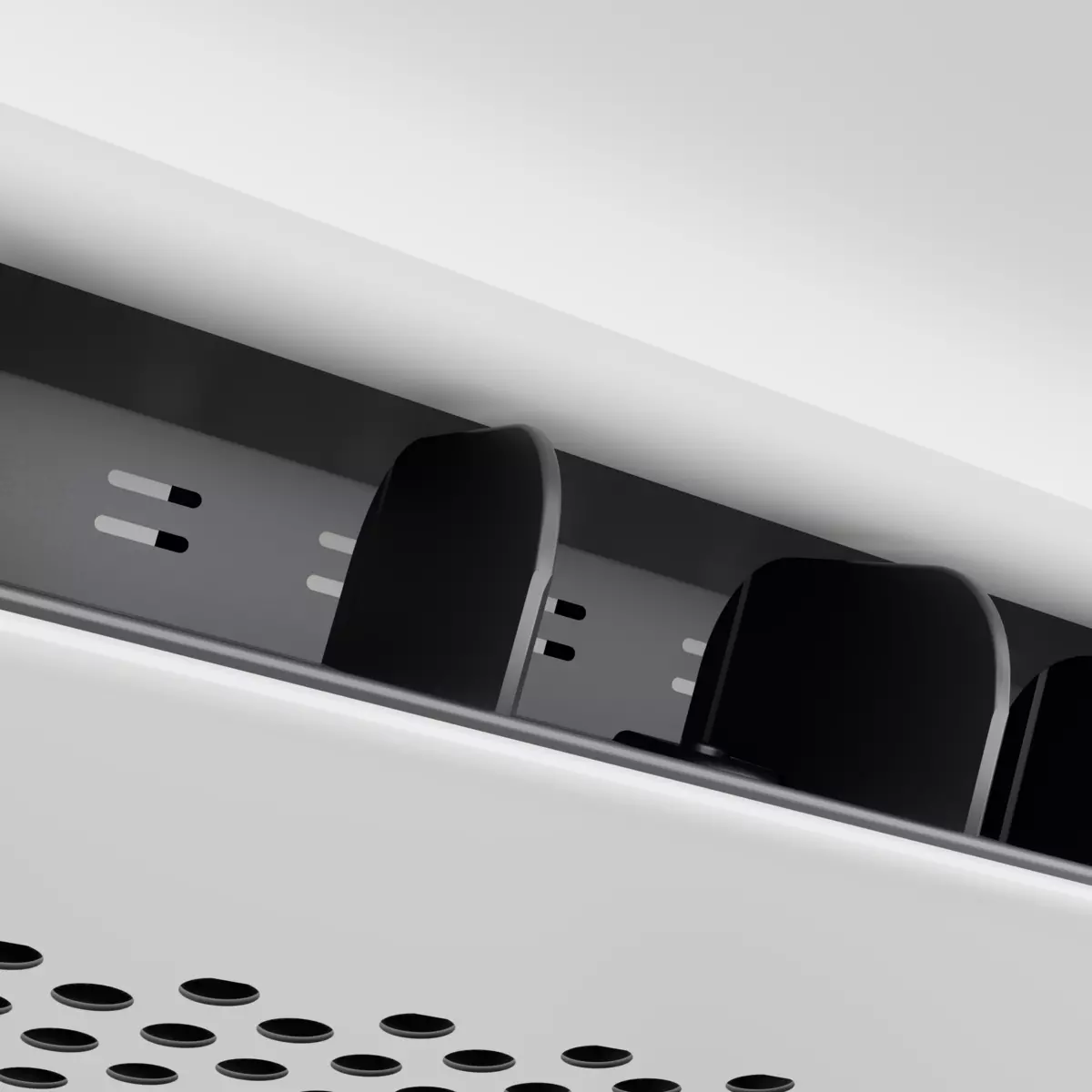

Superior Indoor Comfort Flow Control and Anti-Draft technology ensure quiet, consistent comfort in any space.
Sustainable by Design Crafted from recycled steel, supporting low carbon impact and circularity.
Architectural Flexibility Modern design with multiple colour options fits any ceiling or interior style.

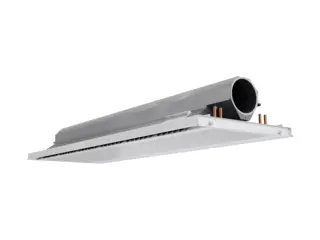

Integrated SA/EA Air Modules Optional supply and extract modules for a seamless look.
Coanda Wing Option Optimized air distribution for open ceilings, eliminating drafts.

Material and surface treatment

The casing is manufactured in recycled galvanized sheet steel (zinc plated) The face plate is in prepainted sheet steel and aluminium RAL 9003, Coil in copper and aluminium.

Standard colour:

RAL 9003 White (Signal white), gloss ratio 30 ± 6%

Alternative standard colours:

RAL 7037 Grey (Dusty gray), gloss ratio 30-40%)
RAL 9010 White (Pure white), gloss ratio 30-40%)
RAL 9005 Black (Jet black), gloss ratio 30-40%)
RAL 9006 Silver (White aluminium), gloss ratio 70-80%)
RAL 9007 Grey (Grey aluminium), gloss ratio 70-80%)
Other colours available on request

Installation, commissioning and maintenance

The PACIFIC is supplied with four mounting brackets and self-tapping screws packaged separately and supplied with each unit. The pre-punched holes in each mounting bracket simplify the fastening work.

The mounting brackets are designed enabling them to be turned in any optional direction depending to suit type of suspension system selected. Turned inward, the mounting brackets offer simple installation by means of mounting strips. Turned outward, the mounting brackets work at their best for suspending the beams by means of size M8 threaded rods.

Mounting strips and threaded rods are not supplied with the unit. If assembly fittings are required, these can be ordered separately.
