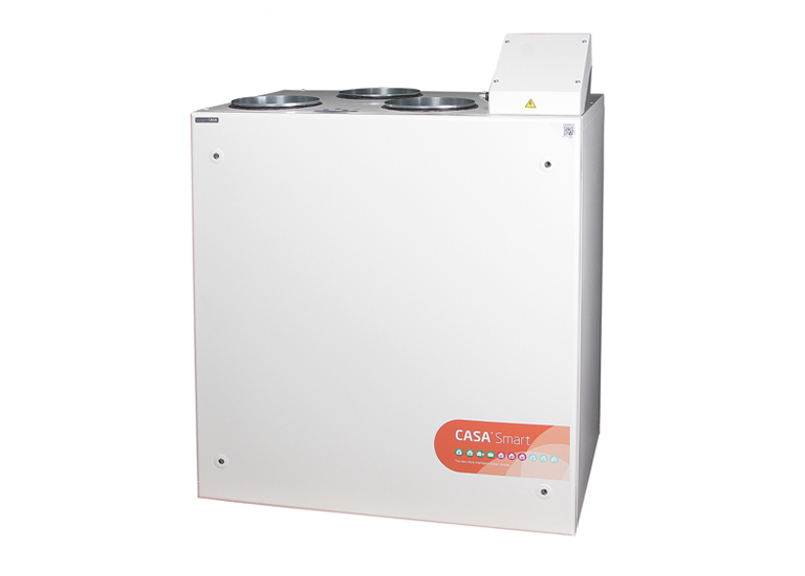

R7 Smart

Top connection air handling unit that requires little space

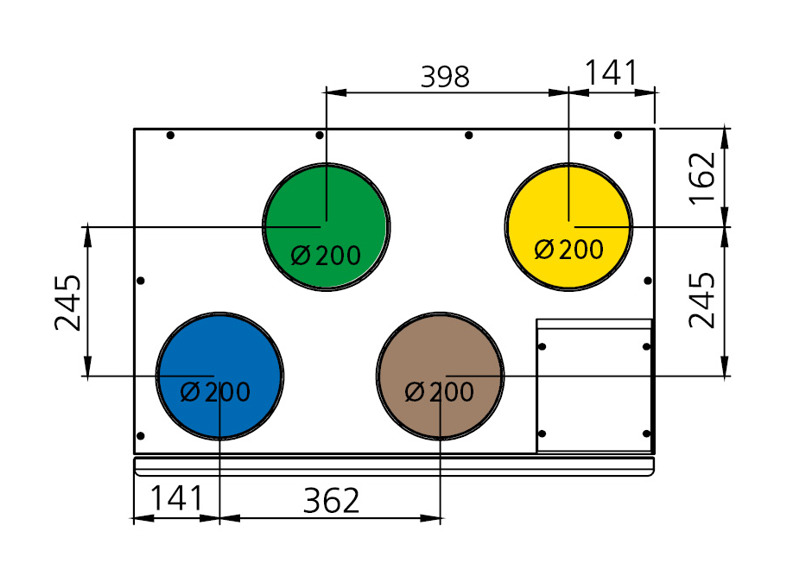

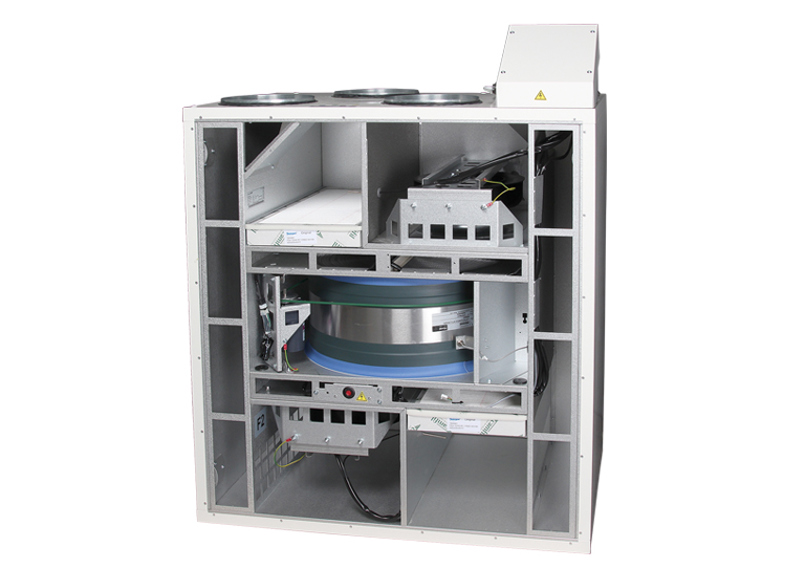

Compact air handling unit (855 x 571 x 932 mm, Ø200 mm, 677 m³/h, 450 m²) with rotary heat exchanger suitable for large houses, radon sanitation, free cooling, offi ce or conference rooms, etc. The market’s most intelligent humidity control as standard. Developed, manufactured and tested for Nordic climate.
  • Ecodesign energy class A*
  • Air flow range 216 - 677 m³/h
  • Temperature efficiency up to 86 % (EN 308)
  • Annual efficiency up to 81 % (Stockholm 21°C)
  • Demand-controlled humidity function as standard
  • Automatic summer function and passive cooling
  • Anti-frost protection ensures continuous ventilation
  • External coils for heating and cooling as an option
  • Can be connect to the automated building management system (I/O / Modbus)
  • Mounted on a firm foundation in a separate space
  • Control System CASA Smart

Controls (options)

CASA Smart ventilation units are equipped with the market’s most versatile control options! Select the required control method or combine several!

Download documents

You can find more documents on our document search page. Looking for older versions, you can find them in the document archive

Filter
Comprehensive detailed product information for the best selection and integration in project design
Installation, Operating, Maintenance and Safety information
Our products and services presented in an easy-to-access manner
Declarations and certificates etc
Wiring diagrams and hydraulic schemes etc
Document Article Document type Date Download
Residential AHU overview (pdf 8.63MB) Swegon CASA Brochure 06/04/2022
Product leaflet (pdf 6.35MB) CASA R7 Smart Technical catalogue 04/05/2022
Resident quick guide (pdf 393.08kB) CASA Smart panel IOM Manual 20/04/2021
Instructions for filter replacement in ventilation units (pdf 314.43kB) CASA Smart IOM Manual 10/05/2021
Instructions for use R-series (pdf 11.59MB) CASA R Smart IOM Manual 28/01/2021
Technical manual (pdf 4.07MB) CASA R7 Smart IOM Manual 30/11/2021
Product fiche Ecodesign (pdf 132.78kB) Swegon CASA R-units Others 21/06/2021
Ecodesign (pdf 590.47kB) CASA R7 Smart Quality 24/06/2021
Declaration of conformity (pdf 2.43MB) Swegon CASA Quality 23/05/2019
BVD (pdf 155.45kB) CASA R7 Others 13/01/2020
Dis-assembly instructions (pdf 783.18kB) CASA R7 Smart Others 06/06/2019
EPD Environmental Product Declaration (pdf 1.64MB) Swegon CASA Quality 11/04/2022
Bureau Veritas EPD Certification (pdf 501.03kB) Swegon CASA Quality 11/04/2022
