R5-H Smart

Air handling unit designed for placement in attics

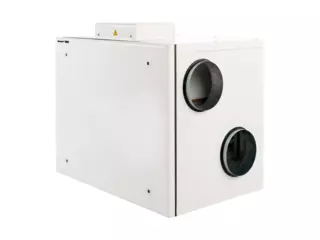

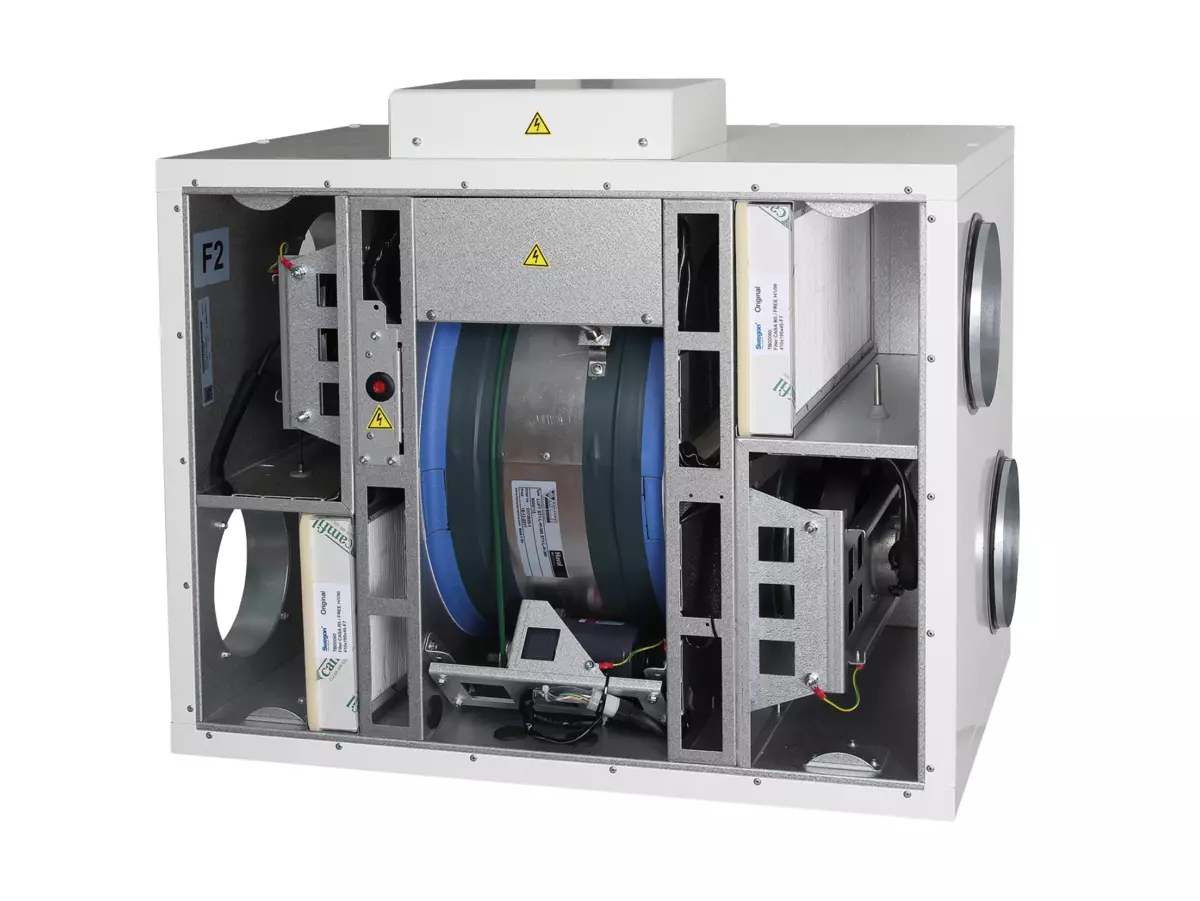

Residential air handling unit (702 x 614 x 479 mm, Ø160 mm) with rotary heat exchanger for houses, small offi ces, etc. (432 m³/h, 250 m²) Ideally suited for attic installation in houses as it is designed for transport up through the ceiling hatch. The market’s most intelligent humidity control as standard. Developed, manufactured and tested for Nordic climate.
  • Ecodesign energy class A*
  • Air flow range 108 - 432 m³/h
  • Temperature efficiency up to 86 % (EN 308)
  • Annual efficiency up to 81 % (Stockholm 21°C)
  • Demand-controlled humidity function as standard
  • Automatic summer function and passive cooling
  • Anti-frost protection ensures continuous ventilation
  • External coils for heating and cooling as an option
  • Can be connect to the automated building management system (I/O / Modbus)

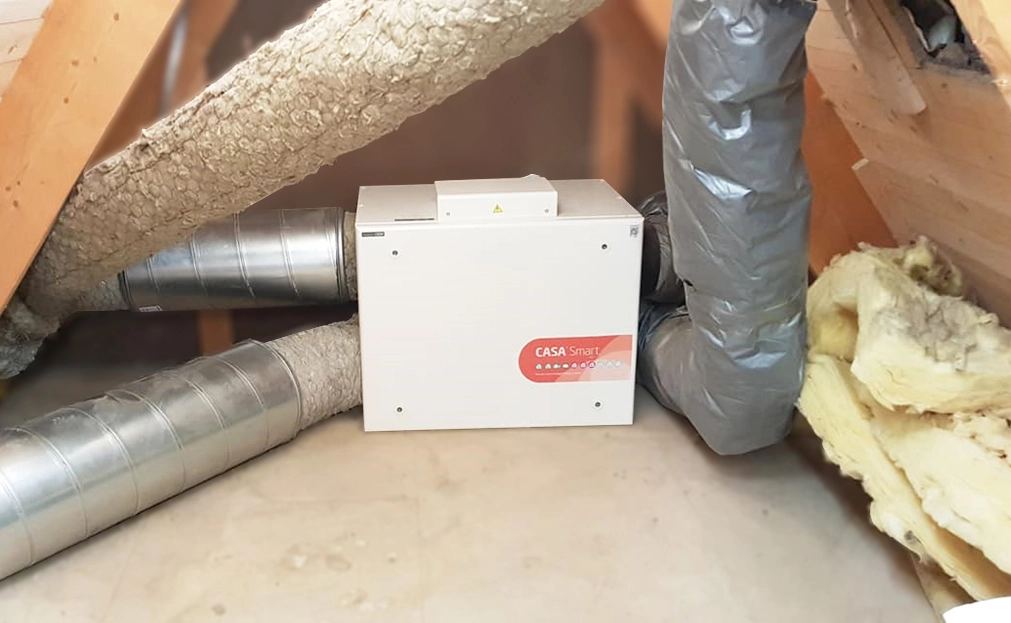

  • Designed for placement in attics
  • Control System CASA Smart
