R3 Smart 288 m³/h < 150 m²

CASA R3 Smart

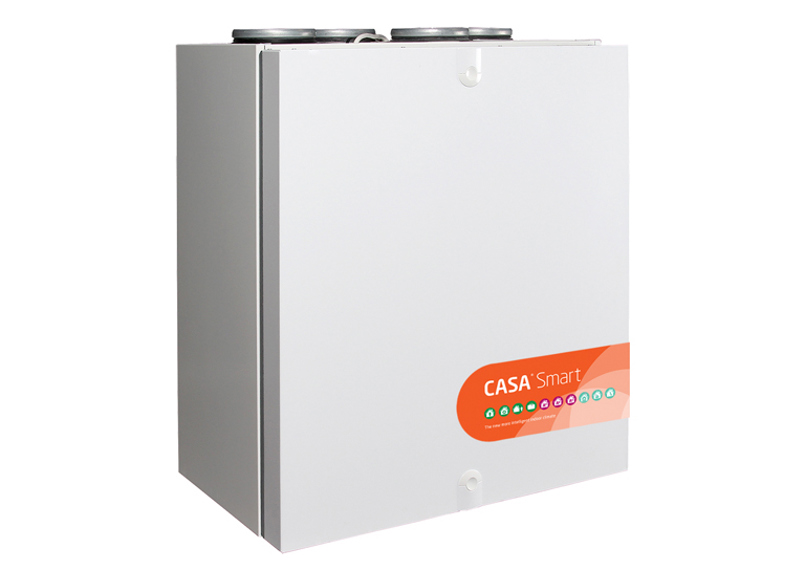

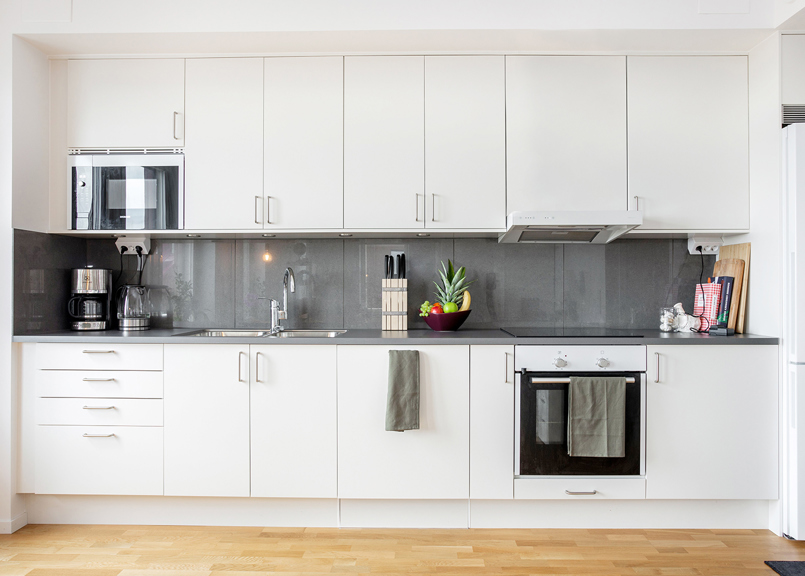

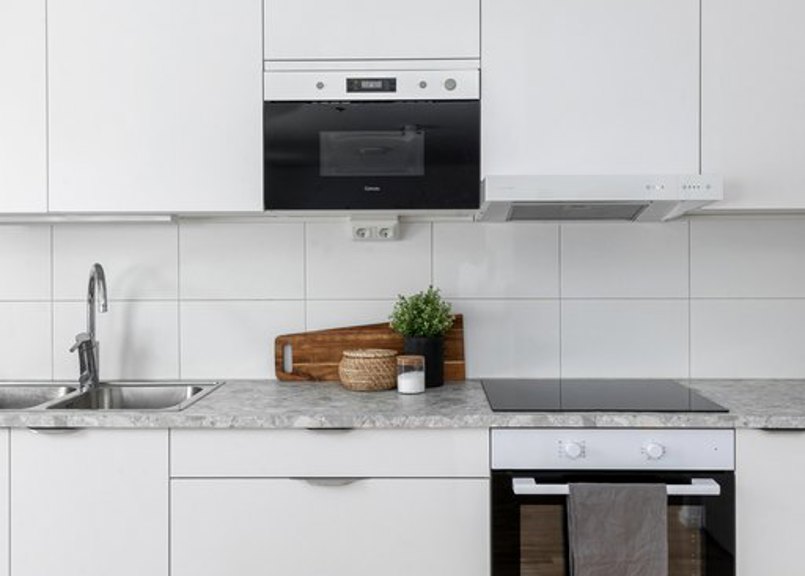

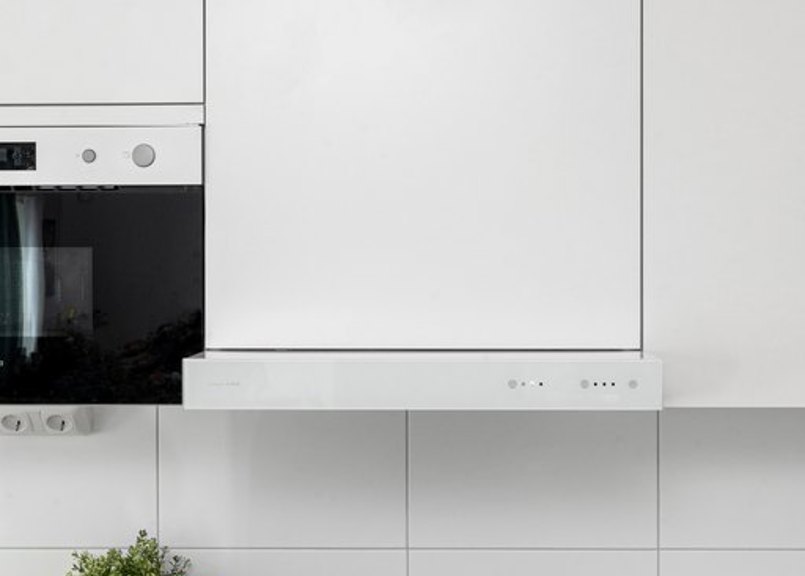

CASA R3 Smart Flat door

R3 Smart

CASA R3 L

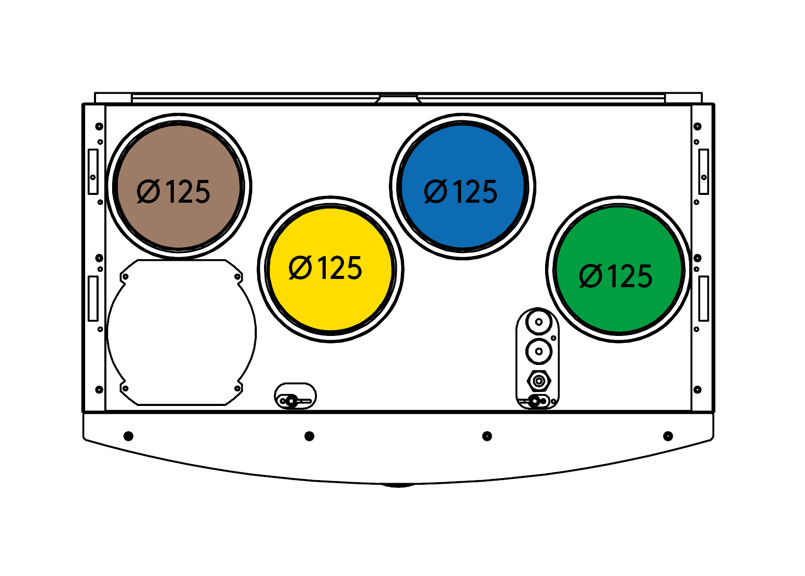

CASA R3 R

CASA R3 R Flat

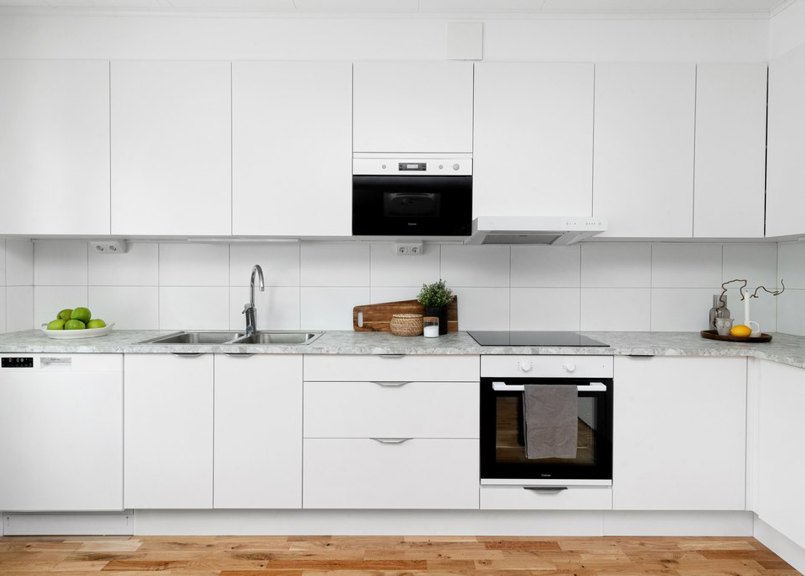

R3 Smart Flat

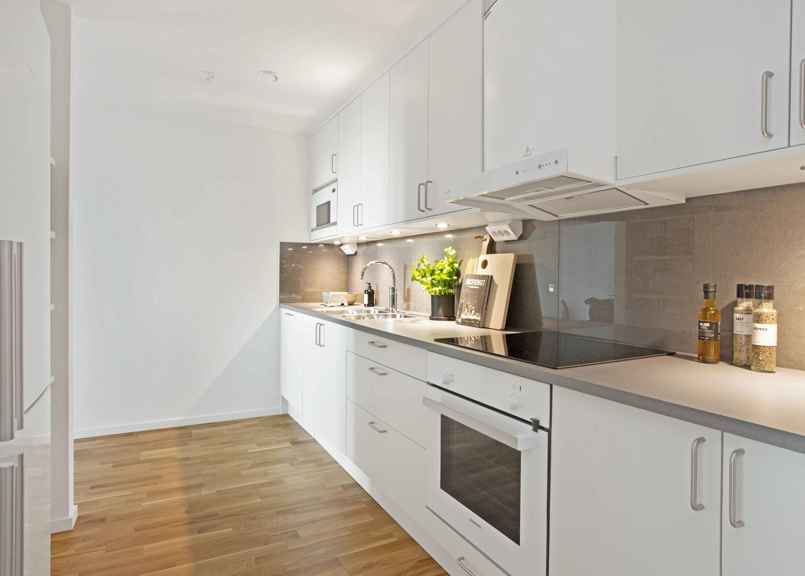

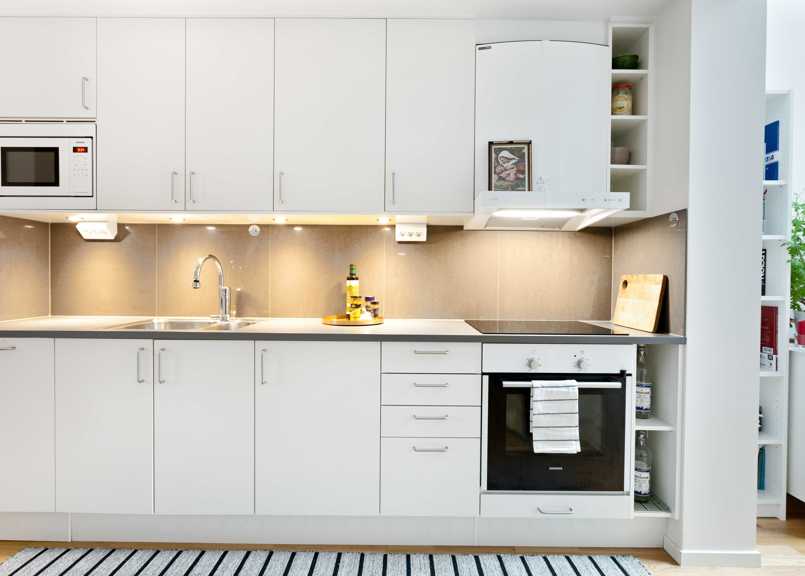

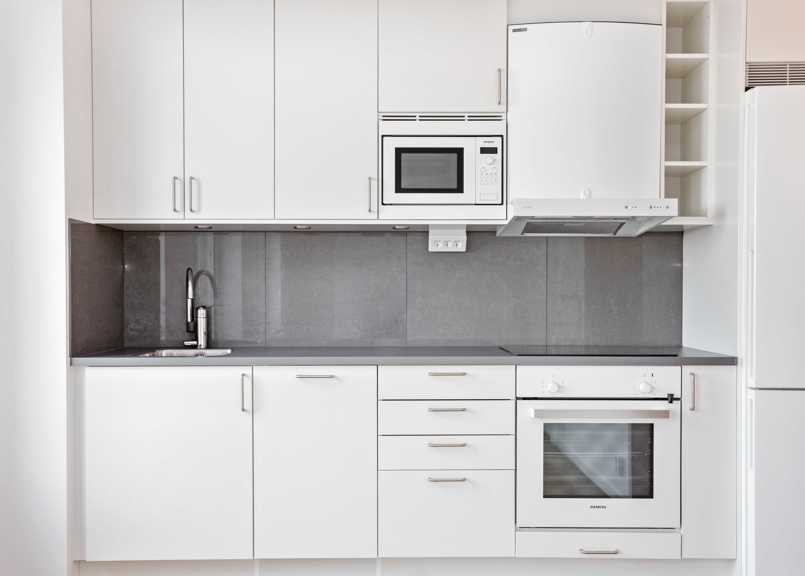

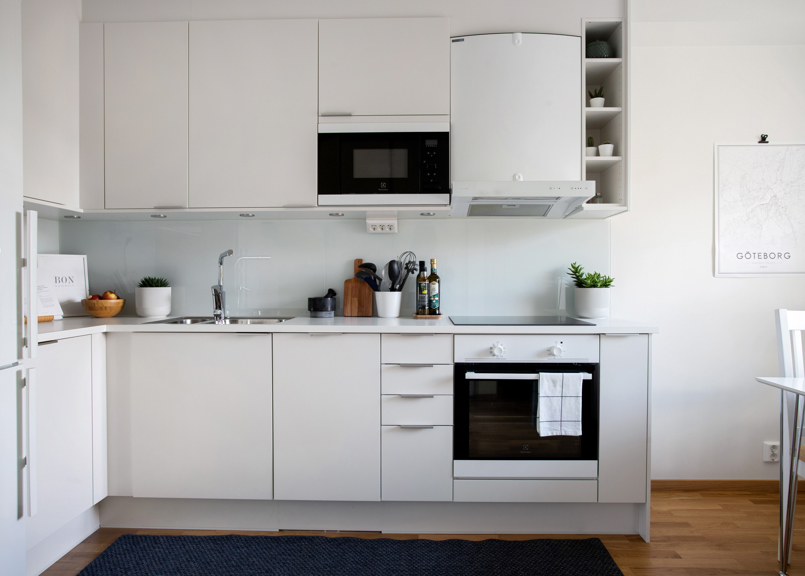

R3 Smart + Jazz

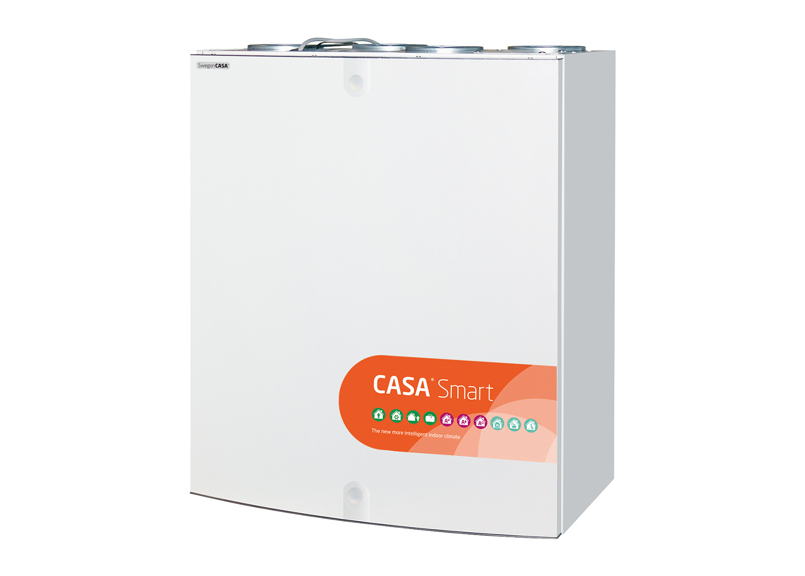

R3 Smart

Air handling unit with the market’s lowest sound level

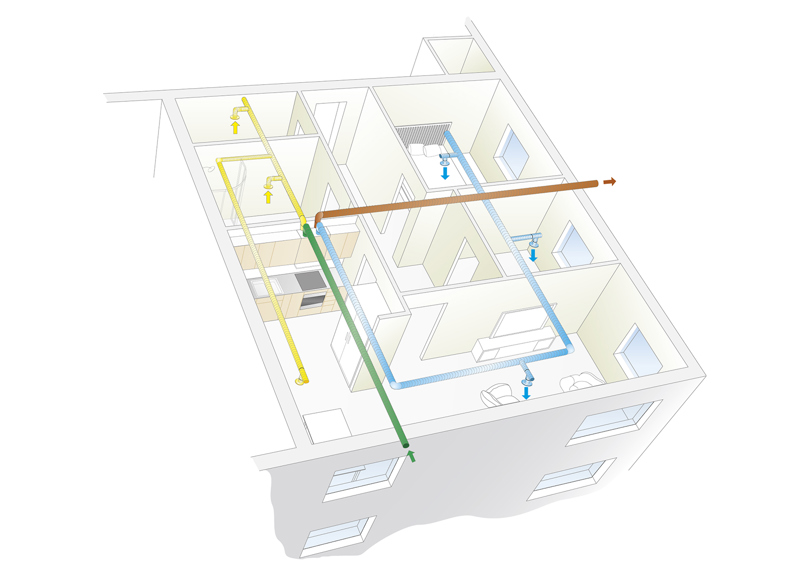

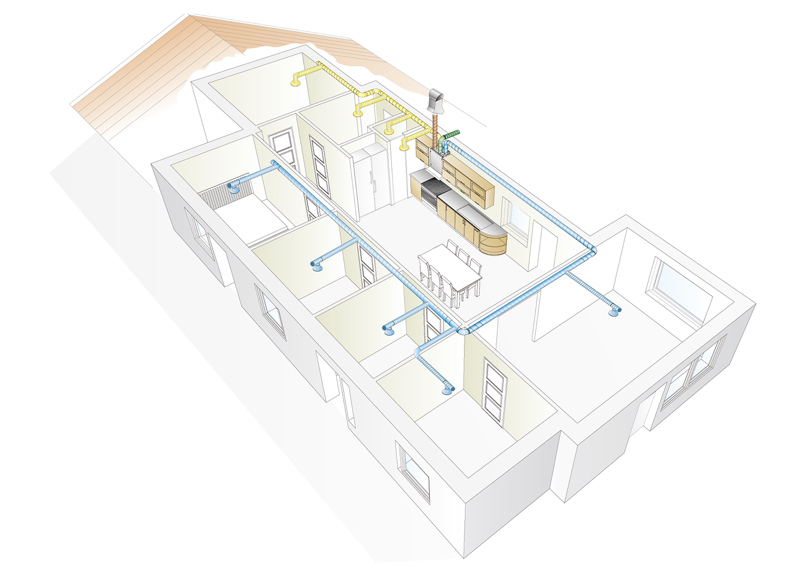

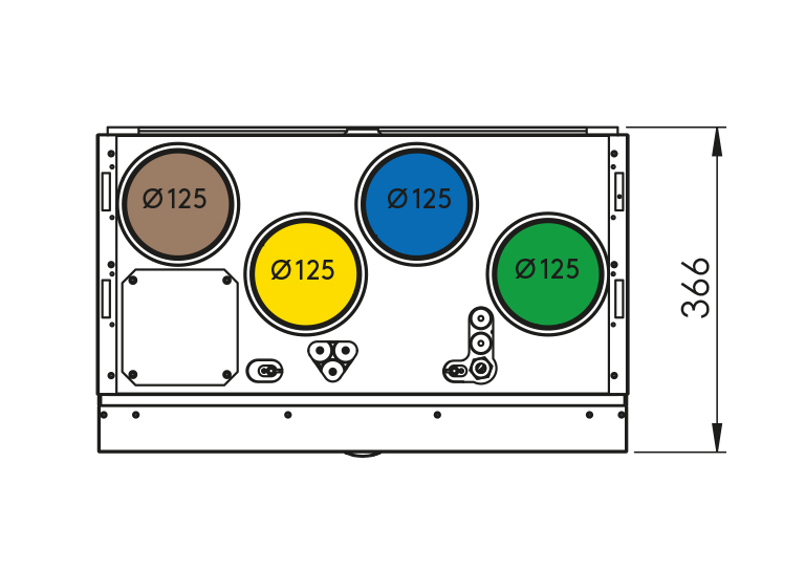

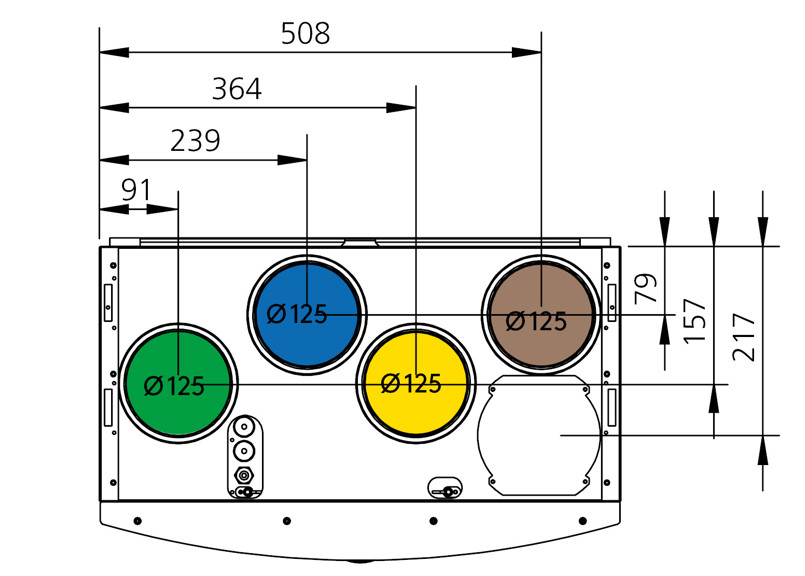

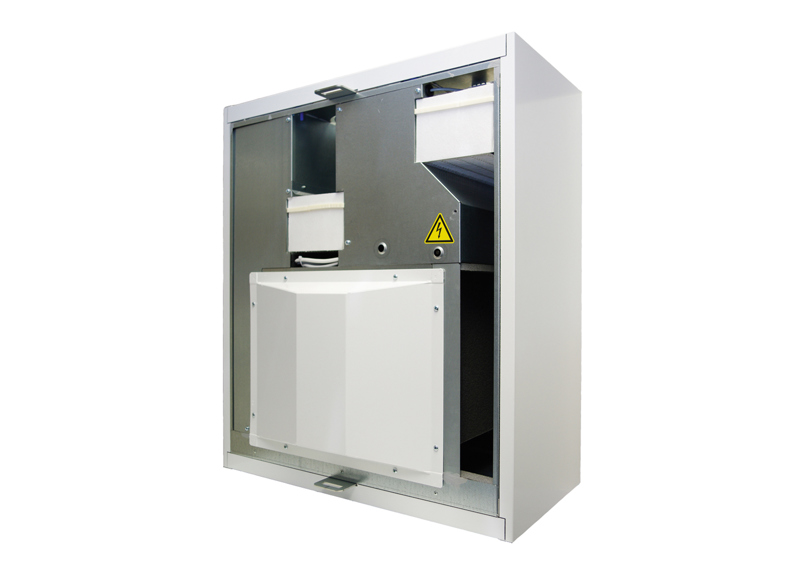

Spice rack air handling unit with rotary heat exchanger (599 x 361 x 700 mm, Ø125 mm) suitable for kitchen or bathroom installation in smaller homes (288m³/h, 150 m²). Equipped with a fifth duct connection for an externally placed cooker hood. The market’s

most intelligent demand-controlled humidity function as standard. Developed, manufactured and tested for Nordic climate.

Ecodesign energy class A*
Air flow range 90 - 288 m³/h
Temperature efficiency up to 86 % (EN 13141-7)
Demand-controlled humidity function as standard
Automatic summer function and passive cooling
Anti-frost protection ensures continuous ventilation

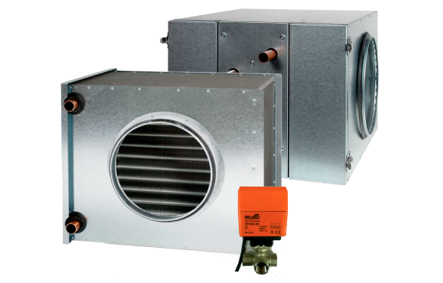

External coils for heating and cooling as an option
Can be connect to the automated building management system (I/O / Modbus)

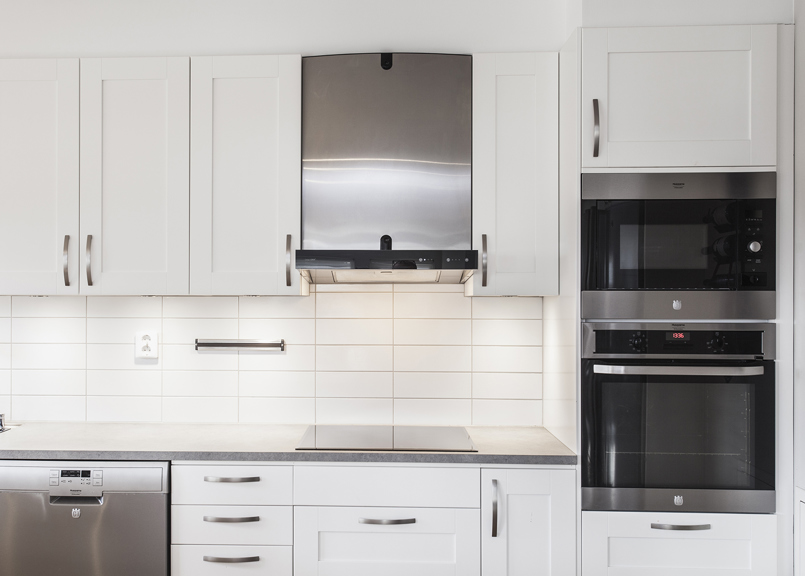

Can be integrated with the cooker hood for placement above the cooker.
Control System CASA Smart

Controls (options)

CASA Smart ventilation units are equipped with the market’s most versatile control options! Select the required control method or combine several!

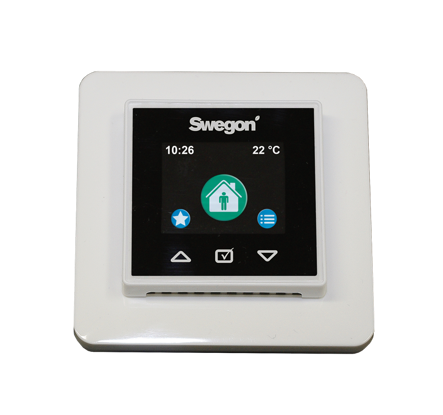

Smart control panel
Smart Access for mobile connection
CASA Jazz cooker hood (integrated)
CASA Smart cooker hoods (externally placed)
Centralised Building automation (with SEM Modbus module or configurable I/O).

Download documents

You can find more documents on our document search page. Looking for older versions, you can find them in the document archive

Filter

Include Accessory documents

Document	Article	Document type	Date
Residential AHU overview (pdf 8.54MB)	Swegon CASA	Brochure	14/10/2022
Product leaflet (pdf 7.03MB)	CASA R3 Smart	Technical catalogue	30/03/2023
Resident quick guide (pdf 393.08kB)	CASA Smart panel	IOM Manual	20/04/2021
Instructions for filter replacement in ventilation units (pdf 314.43kB)	CASA Smart	IOM Manual	10/05/2021
Installation instruction for ceiling mounting bracket (pdf 1MB)	CASA R3	IOM Manual	10/06/2021
Instructions for use R-series (pdf 11.59MB)	CASA R Smart	IOM Manual	28/01/2021
Technical manual (pdf 4.35MB)	CASA R3 Smart	IOM Manual	30/03/2023
A water trap (pdf 468.89kB)	Swegon CASA	IOM Manual	30/03/2020
Declaration of conformity (pdf 119.92kB)	Swegon CASA	Quality	19/04/2023
Product fiche Ecodesign (pdf 132.78kB)	Swegon CASA R-units	Others	21/06/2021
Ecodesign (pdf 579.23kB)	CASA R3 Smart	Quality	24/06/2021
BVD (pdf 150.03kB)	CASA R3	Others	12/06/2019
Dis-assembly instructions (pdf 1.48MB)	CASA R3 Smart	Others	06/06/2019
Bureau Veritas EPD Certification (pdf 501.03kB)	Swegon CASA	Quality	11/04/2022
EPD Environmental Product Declaration (pdf 1.64MB)	Swegon CASA	Quality	11/04/2022

Accessories

Control and regulating equipment

Duct coils

Cooker hoods

Supplement the installation

Support all the way

CAD assistance

A CAD plug‐in is available for Revit with MagiCAD and AutoCAD with MagiCAD. It is also possible to reach the Plug‐In directly from our website to quickly and easily choose the right unit and download a DXF file.

ProCASA E+

ProCASA E+ is an easy, reliable and quick energy calculation program.

CASAHelp

Quick and easy online help, for example, instruction videos, FAQ and other useful information about the CASA range.

CASAStore

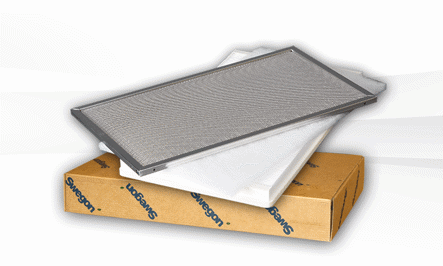

Here you can buy original filters for your CASA air handling unit. Quick, straightforward and easy.
