FALCON Ceiling

Circular ceiling air diffuser for supply air

Manages large supply air flows
Horizontal or vertical distribution pattern
Provision for motorised adjustment of the distribution pattern
Suitable for airborne heating
Can be used with the ALS commissioning box
Cleanable
Standard white RAL 9003
- 5 alternative standard colours
- Other colours upon request

Calculate with your requirements

Circular supply air diffuser for ceiling installation.
Manages large supply air flows.
Well-suited for constant as well as variable air flow.
Air above or below room temperature can be discharged in a horizontal or vertical spread direction into the room.

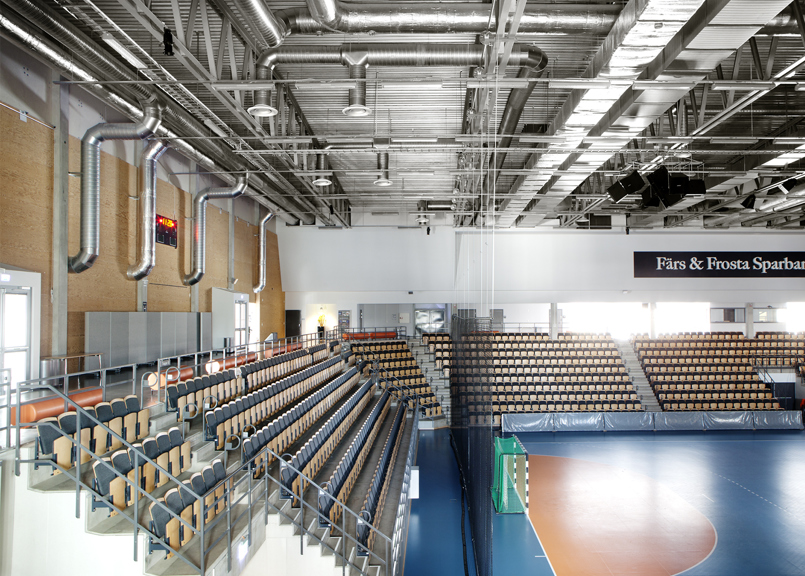

Suitable for comfort and industrial premises.

Design

The FALCON Ceiling consists of two parts: an outer cone with rubber ring sealed-fitted spigot connection on the sizes up to and including size 400 as well as an aerodynamically designed outlet cone.

The inner cone is height-adjustable and removable. The inner cone can be set to a new position by hand or its setting can be changed by a motor. The FALCON Ceiling with electric motor is available in sizes 315, 400 and 500. The motor-actuated model has a longer spigot connection.

Material and surface treatment

The entire air diffuser is made of sheet steel and its interior and exterior surfaces are painted.

Standard colour:
- RAL 9003, signal white, gloss 40
Alternative standard colours:
- RAL 9006, white aluminium, gloss 80
- RAL 9007, grey aluminium, gloss 80
- RAL 9010, pure white, gloss 40
- RAL 9005, jet black, gloss 35
- RAL 7037, dusty grey, gloss 30
Non-painted finish and other colours available on request.

AIR FLOW - SOUND PRESSURE ROOM (Lp10A) *)
FALCON Ceiling Size		25 dB(A)		30 dB(A)		35 dB(A)
FALCON Ceiling Size		l/s	m3/h	l/s	m3/h	l/s	m3/h
125		48	173	57	205	68	245
160		70	252	83	299	99	356
200		112	403	132	475	156	562
250		170	612	202	727	240	864
315		265	954	312	1123	370	1332
400		431	1552	505	1818	590	2124
500		631	2272	743	2675	875	3150

FALCON Ceiling Size	ALS Size	25 dB(A)		30 dB(A)		35 dB(A)
FALCON Ceiling Size	ALS Size	l/s	m3/h	l/s	m3/h	l/s	m3/h
125	100-125	24	86	34	122	44	158
160	125-160	34	122	46	166	66	237
200	160-200	54	194	68	245	95	342
250	200-250	82	295	105	378	155	558
315	250-315	125	450	150	540	210	756
400	315-400	200	720	245	882	325	1170
500	400-500	310	1116	375	1350	450	1620
The data for FALCON Ceiling + ALS commissioning box combination is specified for 50 Pa total pressure and for a horizontal distribution pattern. *) Lp10A = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m² room absorption area.

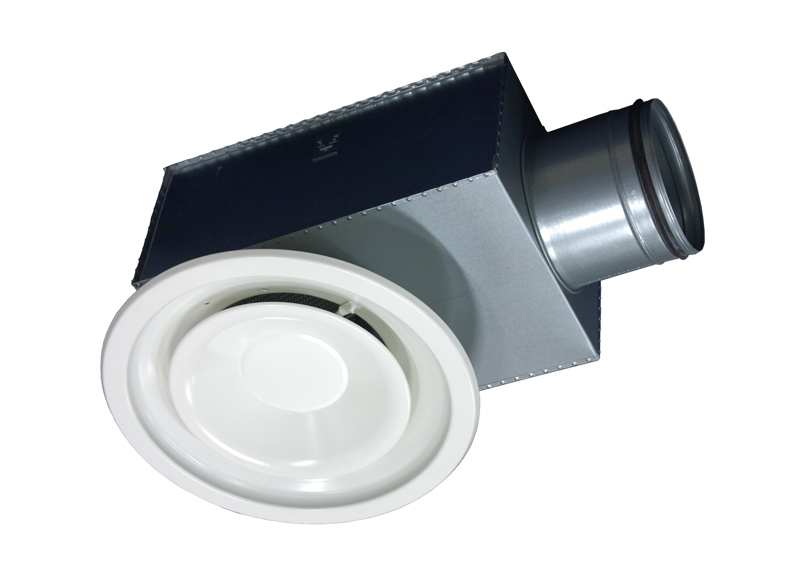

ALS

Commissioning box for air diffusers

Nordic Swan listed

The product is listed in the database for building products that can be used in Nordic Swan Ecolabelled buildings.
