R9-H Smart

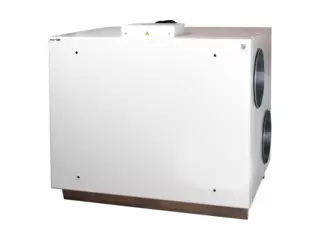

Horizontal air handling unit for large air flows
Compact air handling unit (1100 x 980 x 790 mm, Ø315 mm) with rotating heat exchanger perfectly suited shops, offices or conference rooms, etc. (997 m³/h, 500m²). Energy class A+ for the lowest possible climate impact. The market’s most intelligent
humidity control as standard. Developed, manufactured and tested for Nordic climate.
  • Ecodesign energy class A+*
  • Air flow range 270 - 997 m³/h
  • Temperature efficiency up to 86 % (EN 308)
  • Annual efficiency up to 81 % (Stockholm 21°C)
  • Demand-controlled humidity function as standard
  • Automatic summer function and passive cooling
  • Anti-frost protection ensures continuous ventilation
  • External coils for heating and cooling as an option
  • Can be connect to the automated building management system (I/O / Modbus)
  • Mounted on a firm foundation in a separate space
  • Control System CASA Smart

Controls (options)

CASA Smart ventilation units are equipped with the market’s most versatile control options! Select the required control method or combine several!

Download documents

You can find more documents on our document search page. Looking for older versions, you can find them in the document archive

Filter
Comprehensive detailed product information for the best selection and integration in project design
Installation, Operating, Maintenance and Safety information
Our products and services presented in an easy-to-access manner
Declarations and certificates etc
Wiring diagrams and hydraulic schemes etc
Document Article Document type Date Download
Residential AHU overview (pdf 8.63MB) Swegon CASA Brochure 06/04/2022
Product leaflet (pdf 9.37MB) CASA R9-H Smart Technical catalogue 04/05/2022
Resident quick guide (pdf 393.08kB) CASA Smart panel IOM Manual 20/04/2021
Instructions for filter replacement in ventilation units (pdf 314.43kB) CASA Smart IOM Manual 10/05/2021
Instructions for use R-series (pdf 11.59MB) CASA R Smart IOM Manual 28/01/2021
Technical manual (pdf 3.84MB) CASA R9-H / R15-H Smart IOM Manual 30/11/2021
Declaration of conformity (pdf 2.43MB) Swegon CASA Quality 23/05/2019
Product fiche Ecodesign (pdf 132.78kB) Swegon CASA R-units Others 21/06/2021
Ecodesign (pdf 578.51kB) CASA R9-H Smart Others 24/06/2021
BVD (pdf 153.76kB) CASA R9H Others 13/01/2020
Dis-assembly instructions (pdf 617.25kB) CASA R9-H Smart Others 06/06/2019
