R2 Smart 216 m3⁄h < 140m²

CASA R2 Smart

CASA R2 R

CASA R2 L

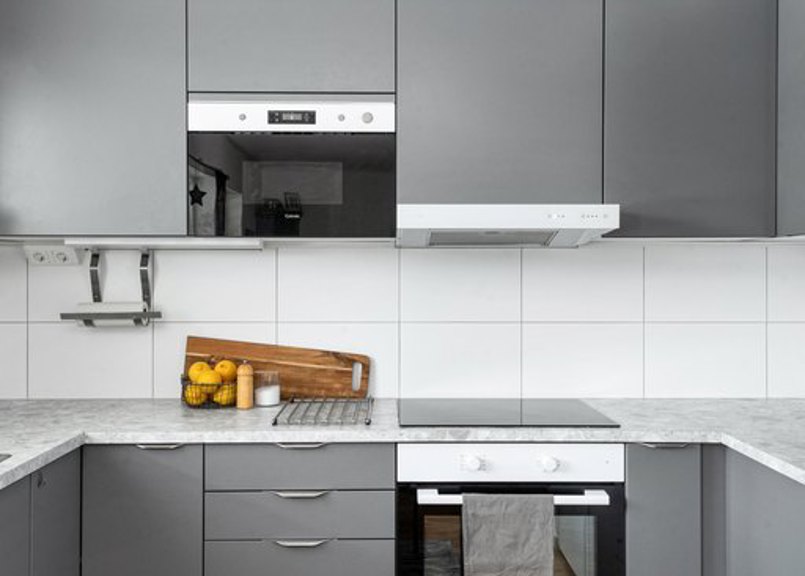

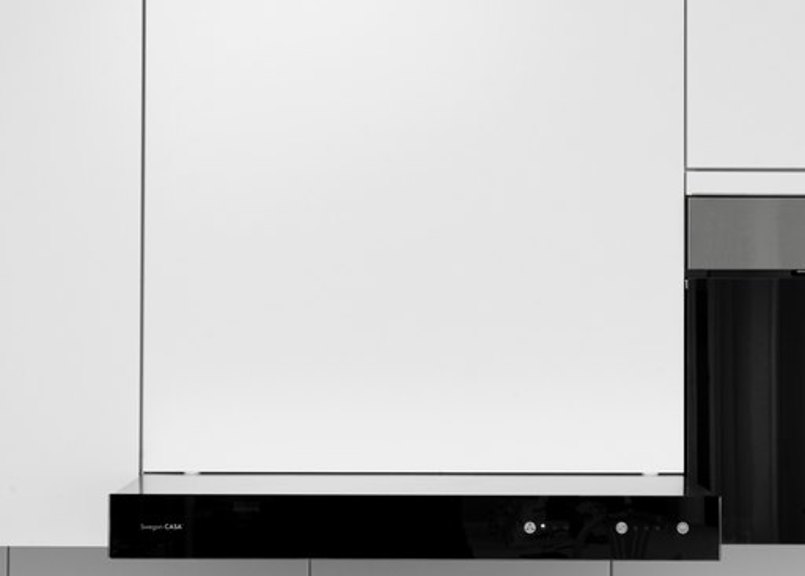

R2 Smart + jazz

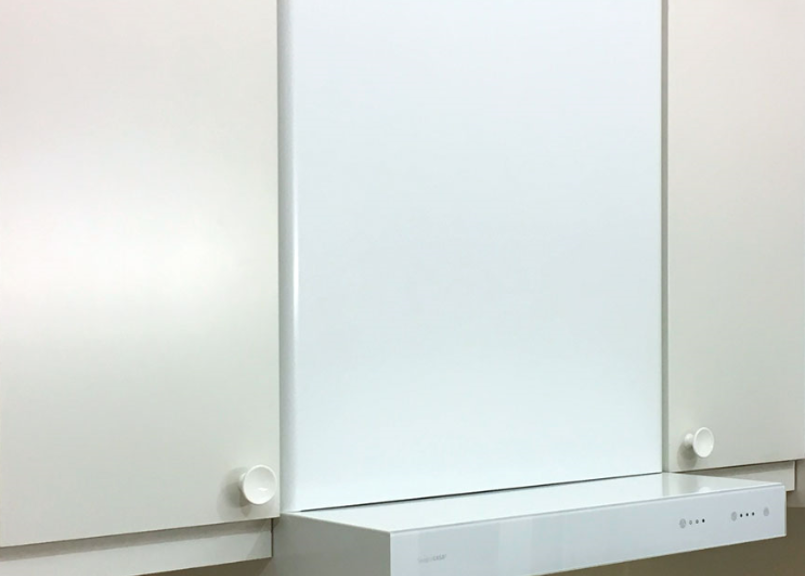

R2+JAZZ

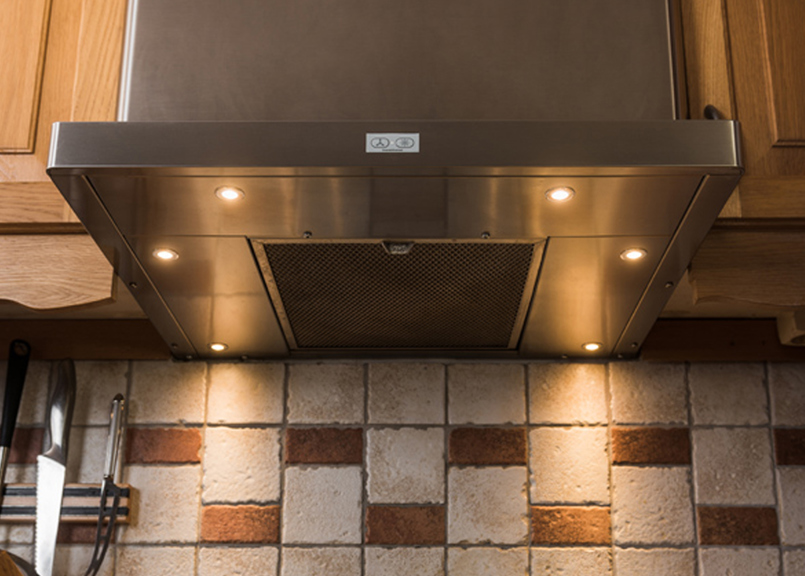

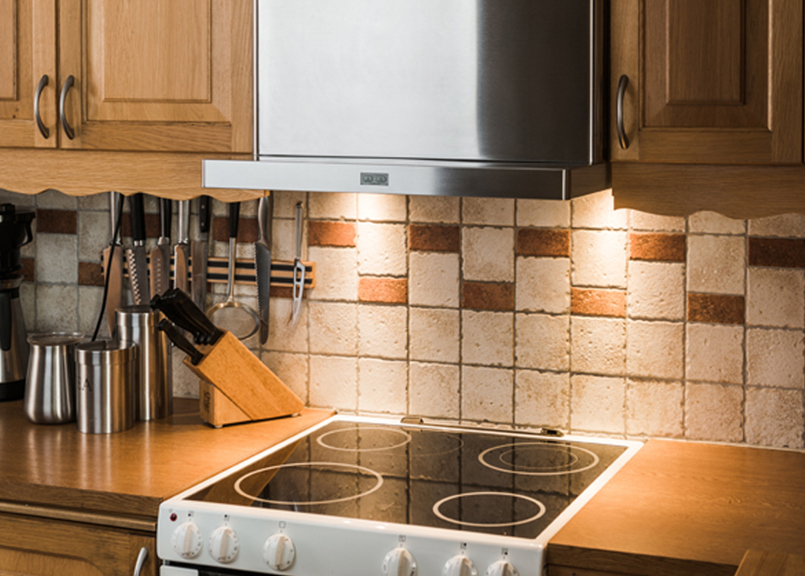

DANCE

R2 smart

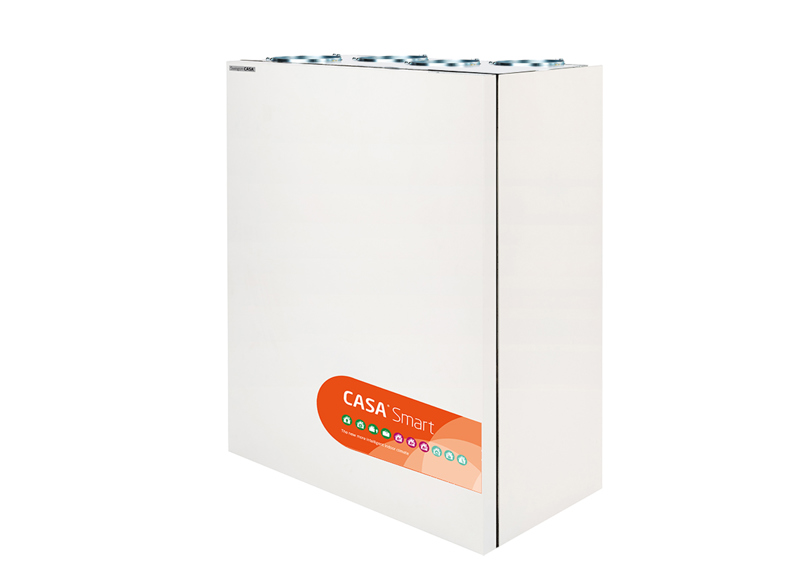

R2 Smart

Perfect for renovation

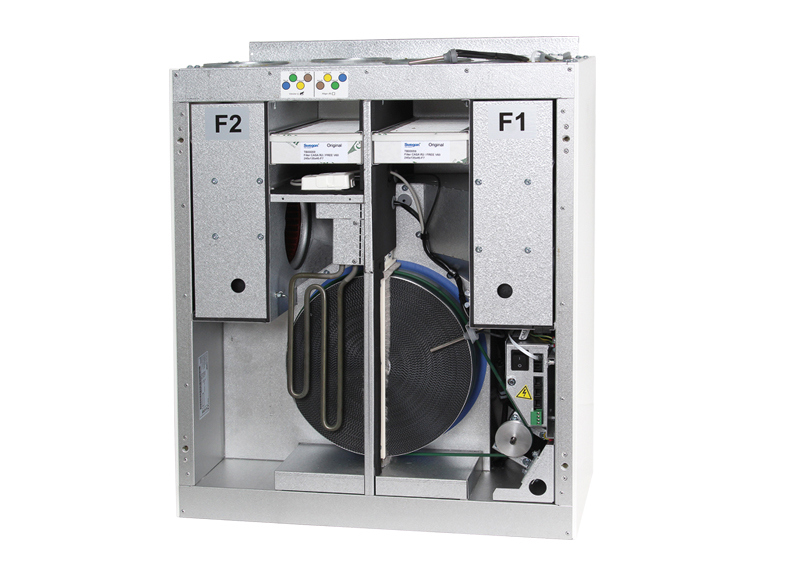

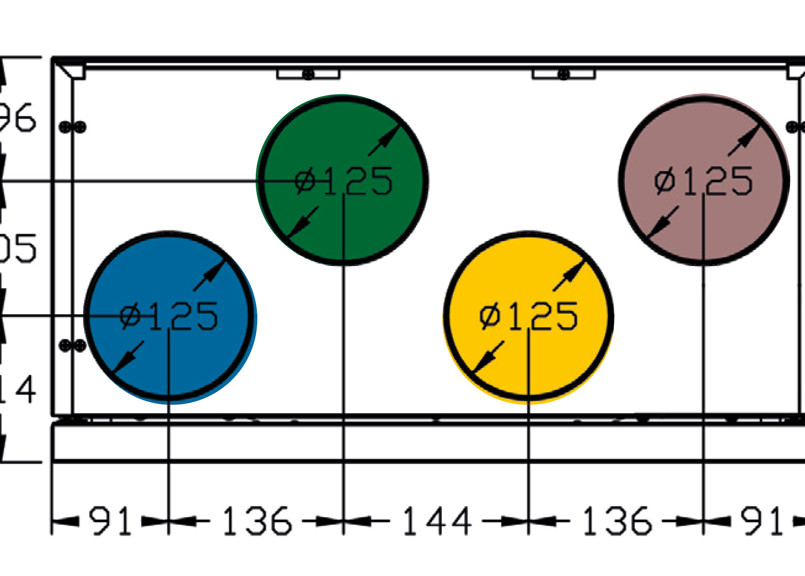

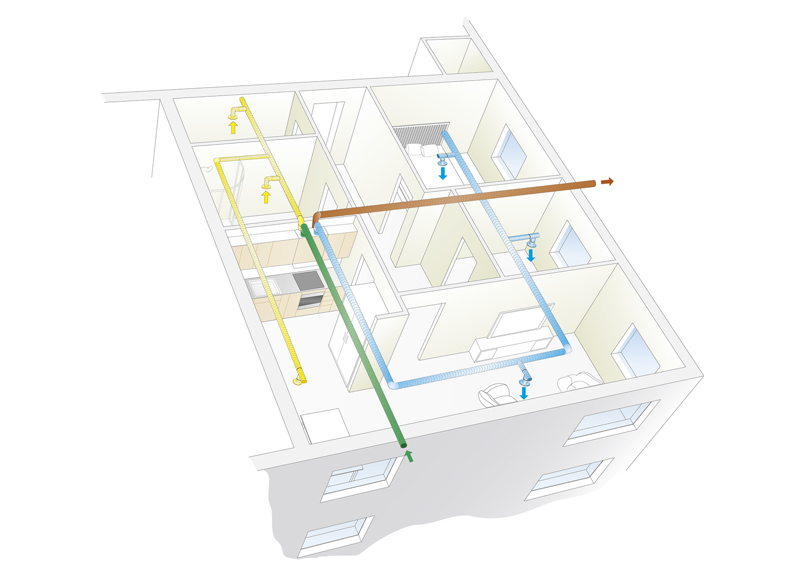

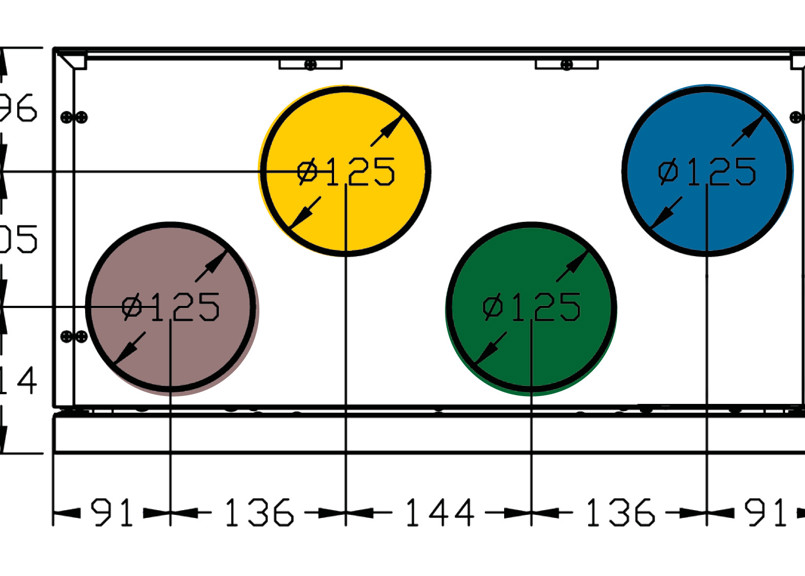

Spice rack air handling unit (598 x 315 x 700 mm, Ø125 mm) with rotary heat exchanger suitable for kitchen installation in smaller homes (216 m3⁄h,140m² ). The market’s most intelligent demand-controlled humidity function as standard. Developed, manufactured and tested for Nordic climate.

Ecodesign energy class A*
Air flow range 65 - 216 m³/h
Temperature efficiency up to 83 % (EN 13141-7)
Demand-controlled humidity function as standard
Automatic summer function and passive cooling
Anti-frost protection ensures continuous ventilation
External coils for heating and cooling as an option
Can be connect to the automated building management system (I/O / Modbus)

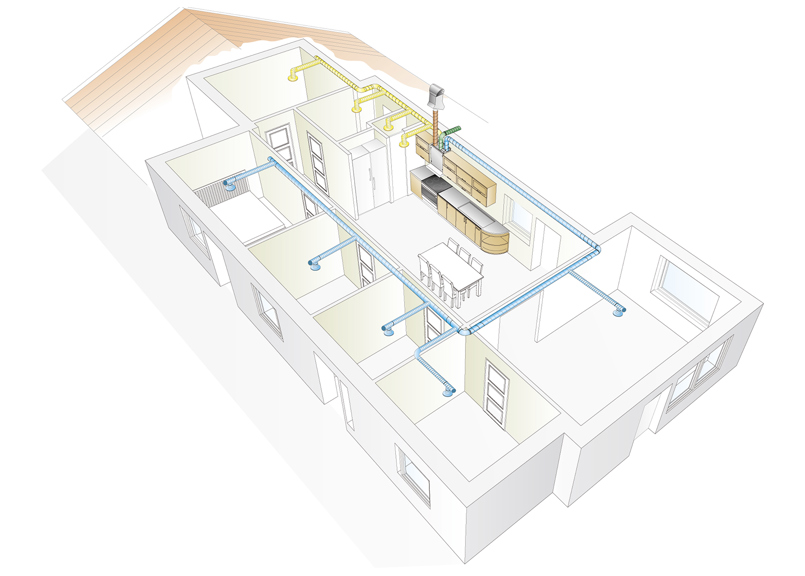

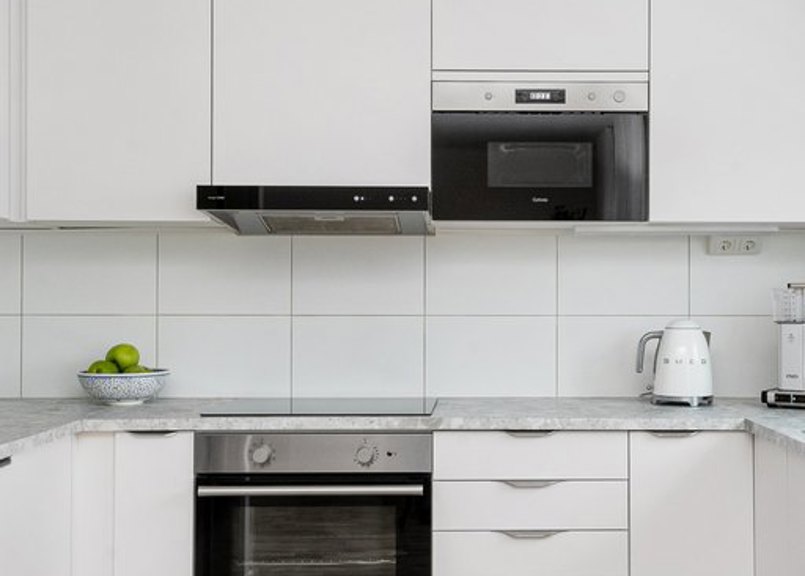

Can be integrated with the cooker hood for placement above the cooker.
The unit is built to standard dimensions and can be installed in line with existing cabinet frames and hatches.
Control System CASA Smart

Controls (options)

CASA Smart ventilation units are equipped with the market’s most versatile control options! Select the required control method or combine several!

Smart control panel
Smart Access for mobile connection
Swegon CASA Dance & Disco cooker hoods
Centralised Building automation (with SEM Modbus module or configurable I/O).

Download documents

You can find more documents on our document search page. Looking for older versions, you can find them in the document archive

Filter

Include Accessory documents

Document	Article	Document type	Date
Residential AHU overview (pdf 8.54MB)	Swegon CASA	Brochure	14/10/2022
Product leaflet (pdf 7.11MB)	CASA R2 Smart	Technical catalogue	13/10/2022
Resident quick guide (pdf 393.08kB)	CASA Smart panel	IOM Manual	20/04/2021
Instructions for filter replacement in ventilation units (pdf 314.43kB)	CASA Smart	IOM Manual	10/05/2021
Instructions for use R-series (pdf 11.59MB)	CASA R Smart	IOM Manual	28/01/2021
Technical manual (pdf 4.16MB)	CASA R2 Smart	IOM Manual	31/01/2023
Declaration of conformity (pdf 119.92kB)	Swegon CASA	Quality	19/04/2023
Product fiche Ecodesign (pdf 132.78kB)	Swegon CASA R-units	Others	21/06/2021
Ecodesign (pdf 588kB)	CASA R2 Smart	Quality	24/06/2021
BVD (pdf 158.63kB)	CASA R2	Others	07/08/2019
Dis-assembly instructions (pdf 598.88kB)	CASA R2 Smart	Others	06/06/2019
EPD Environmental Product Declaration (pdf 1.64MB)	Swegon CASA	Quality	11/04/2022
Bureau Veritas EPD Certification (pdf 501.03kB)	Swegon CASA	Quality	11/04/2022

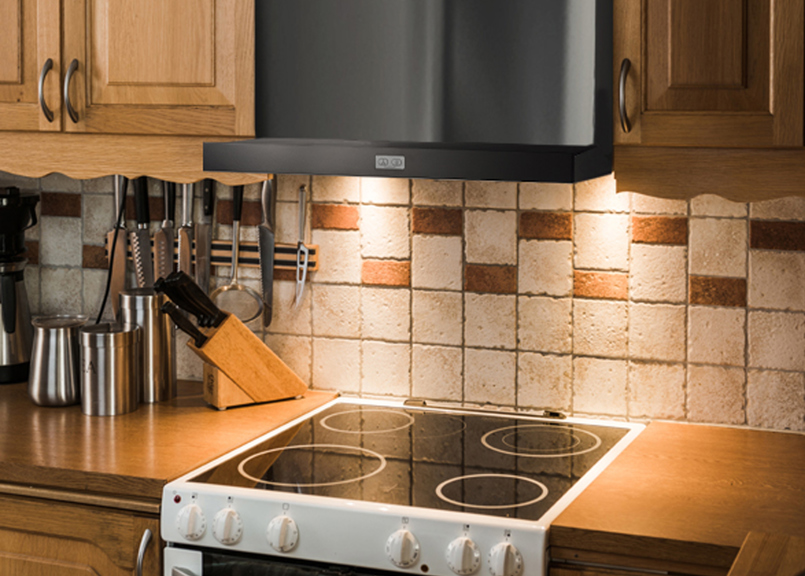

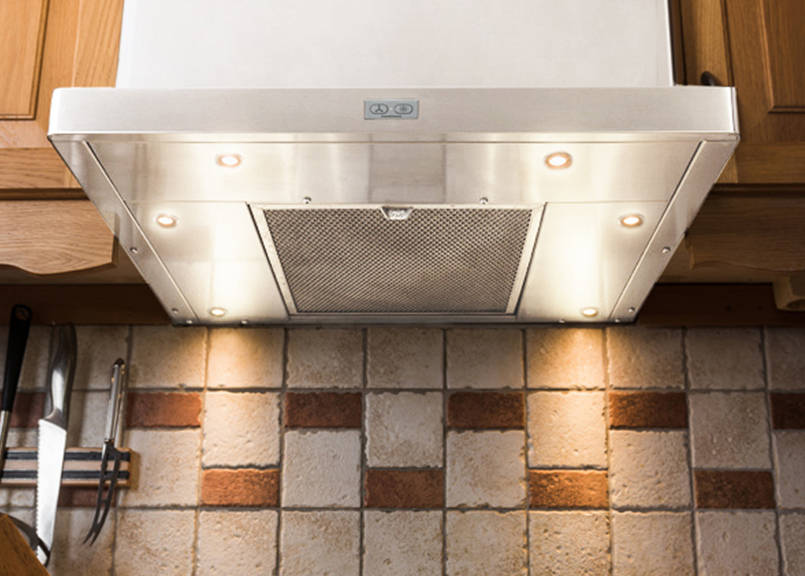

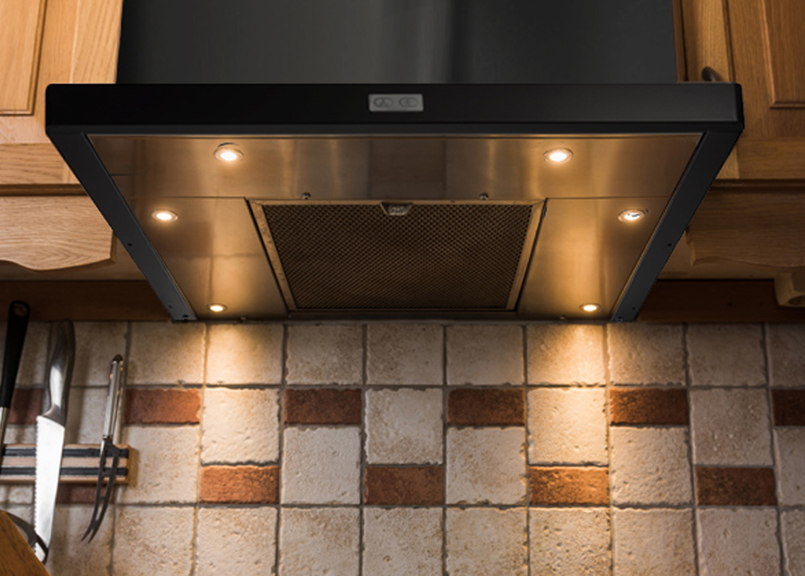

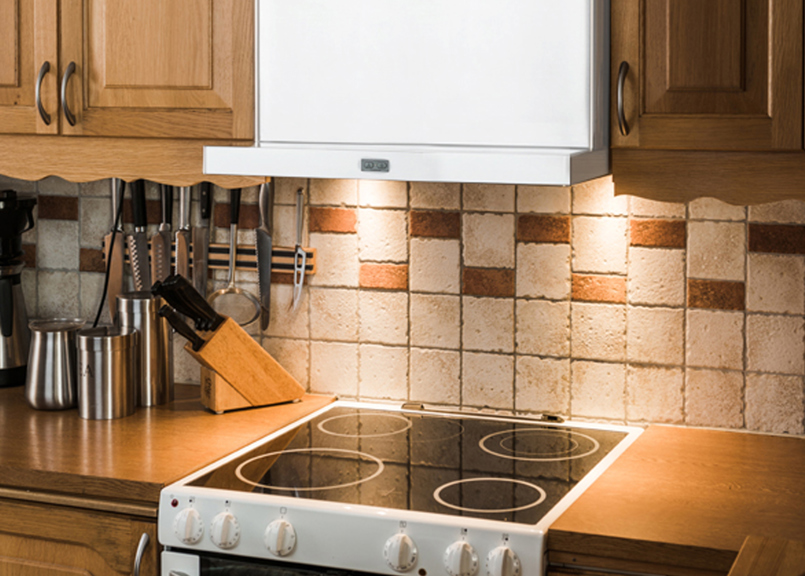

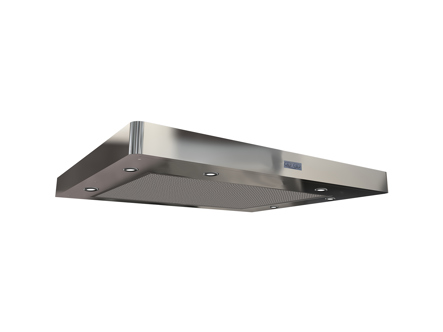

CASA Dance

Stylish design with smooth underside that is easy to clean.

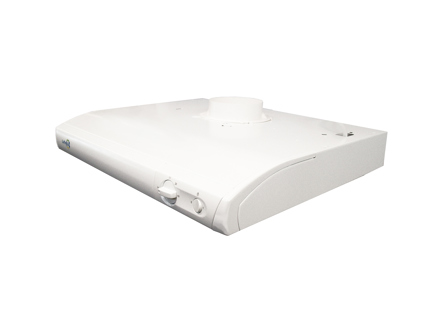

CASA Disco

Classic model

Accessories

Control and regulating equipment

Duct coils

Cooker hoods

Supplement the installation

Support all the way

CAD assistance

A CAD plug‐in is available for Revit with MagiCAD and AutoCAD with MagiCAD. It is also possible to reach the Plug‐In directly from our website to quickly and easily choose the right unit and download a DXF file.
