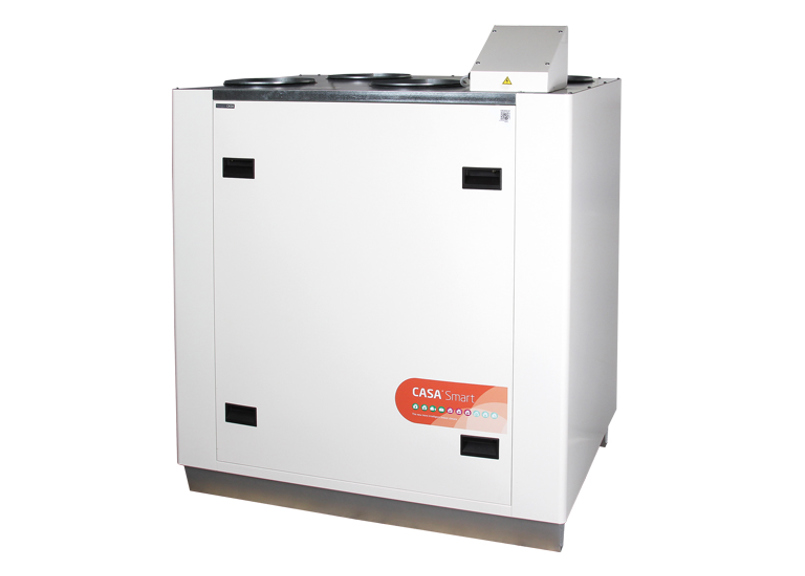

R15 Smart

Top connection air handling unit that requires little space

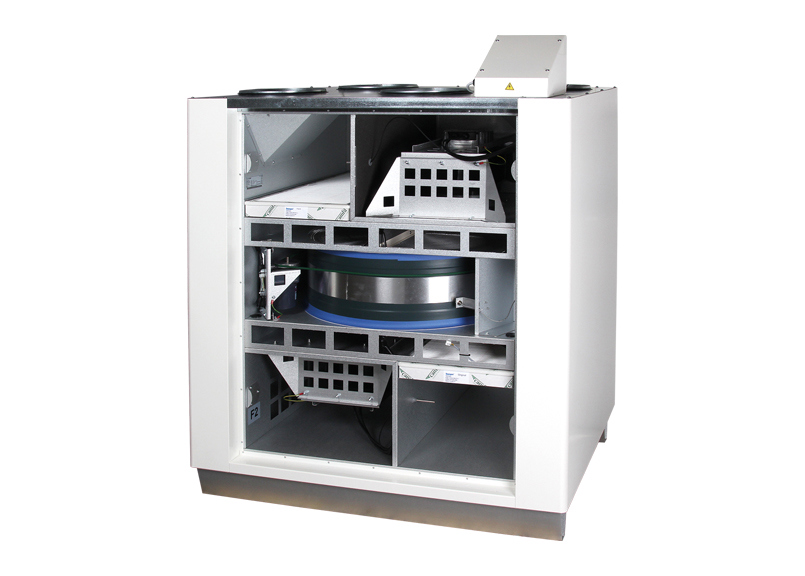

Compact air handling unit (1080 x 788 x 1100 mm, Ø250 mm) with rotating heat exchanger perfectly suited shops, offices or conference rooms, etc. (1710 m³/h, 850 m²). The market’s most intelligent humidity control as standard. Developed, manufactured and tested for Nordic climate.
  • Ecodesign energy class NRVU*
  • Air flow range 270 - 1710 m³/h
  • Temperature efficiency up to 86 % (EN 308)
  • Annual efficiency up to 81 % (Stockholm 21°C)
  • Demand-controlled humidity function as standard
  • Automatic summer function and passive cooling
  • Anti-frost protection ensures continuous ventilation
  • External coils for heating and cooling as an option
  • Can be connect to the automated building management system (I/O / Modbus)
  • Mounted on a firm foundation in a separate space
  • Control System CASA Smart

* Defined as non-residential ventilation unit according to Ecodesign Lot 6.

Controls (options)

CASA Smart ventilation units are equipped with the market’s most versatile control options! Select the required control method or combine several!

Download documents

You can find more documents on our document search page. Looking for older versions, you can find them in the document archive

Filter
Comprehensive detailed product information for the best selection and integration in project design
Installation, Operating, Maintenance and Safety information
Our products and services presented in an easy-to-access manner
Declarations and certificates etc
Wiring diagrams and hydraulic schemes etc
Document Article Document type Date Download
Residential AHU overview (pdf 8.63MB) Swegon CASA Brochure 06/04/2022
Product leaflet (pdf 7.64MB) CASA R15 Smart Technical catalogue 14/02/2022
Resident quick guide (pdf 393.08kB) CASA Smart panel IOM Manual 20/04/2021
Instructions for filter replacement in ventilation units (pdf 314.43kB) CASA Smart IOM Manual 10/05/2021
Instructions for use R-series (pdf 11.59MB) CASA R Smart IOM Manual 28/01/2021
Technical manual (pdf 4.2MB) CASA R9/R15 Smart Technical catalogue 30/11/2021
Declaration of conformity (pdf 2.43MB) Swegon CASA Quality 23/05/2019
BVD (pdf 153.78kB) CASA R15 Others 13/01/2020
Dis-assembly instructions (pdf 1002.8kB) CASA R15 Smart Others 06/06/2019
EPD Environmental Product Declaration (pdf 1.64MB) Swegon CASA Quality 11/04/2022
Bureau Veritas EPD Certification (pdf 501.03kB) Swegon CASA Quality 11/04/2022
