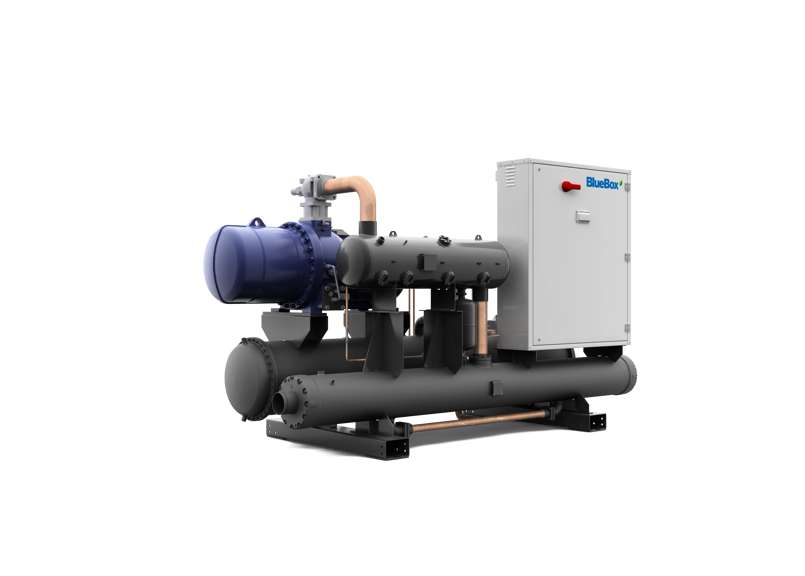

BlueBox Omega Sky Xi

Water-cooled chiller and heat pumps, screw compressors with variable compression ratio and inverter control capacity modulation, R513A, 253-952 kW

Water-condensed liquid chillers and heat pumps for indoor applications; screw compressor with variable compression ratio and inverter for capacity modulation.

HPW: reversible heat pump version on water side
OH: non-reversible heat pump version
LN: low noise unit
XLN: super low noise unit
DC: execution with recovery condenser


  • Max. efficiency at partial loads: SEER up to 8,3 and SEPR up to 9,3
  • Ecodesign Tier 2 compliant
  • Non-flammable refrigerant R513A, with GWP=573
  • Hybrid Falling Film evaporator with low refrigerant load
  • Variable Vi screw compressor with external inverter
  • Version with chiller and heat pump, each with optimised operating range
  • BlueThink advanced control with integrated web server. Multilogic function and Blueye® supervision system. (options)

Download documents

You can find more documents on our document search page. Looking for older versions, you can find them in the document archive

Comprehensive detailed product information for the best selection and integration in project design
Installation, Operating, Maintenance and Safety information
Our products and services presented in an easy-to-access manner
Declarations and certificates etc
Wiring diagrams and hydraulic schemes etc
Document Article Document type Date Download
Technical Catalogue (pdf 937.27kB) OMEGA SKY Xi Technical catalogue 20/01/2021
